    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 200 x 50mm
　　EAN
　　　　　 　　　
　　YJ-11240800074053 　　　

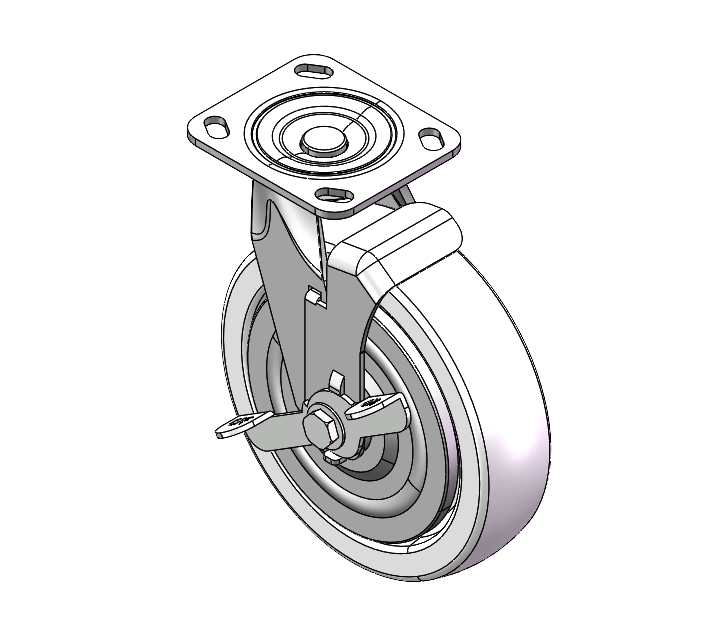

Side (wheel) brake Caster with Locking system. Top Plate Riveted and Stamping - D-shaped. Hole Zine-Plated, Top Plate (4.5T) Mounting Type system Reinforced Polypropylene and tread Transparent, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

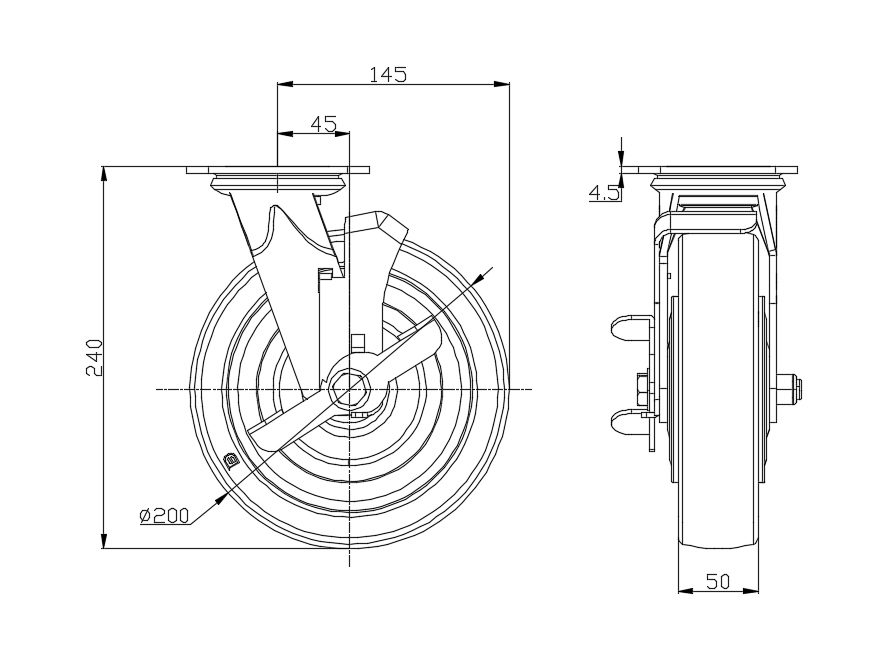

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

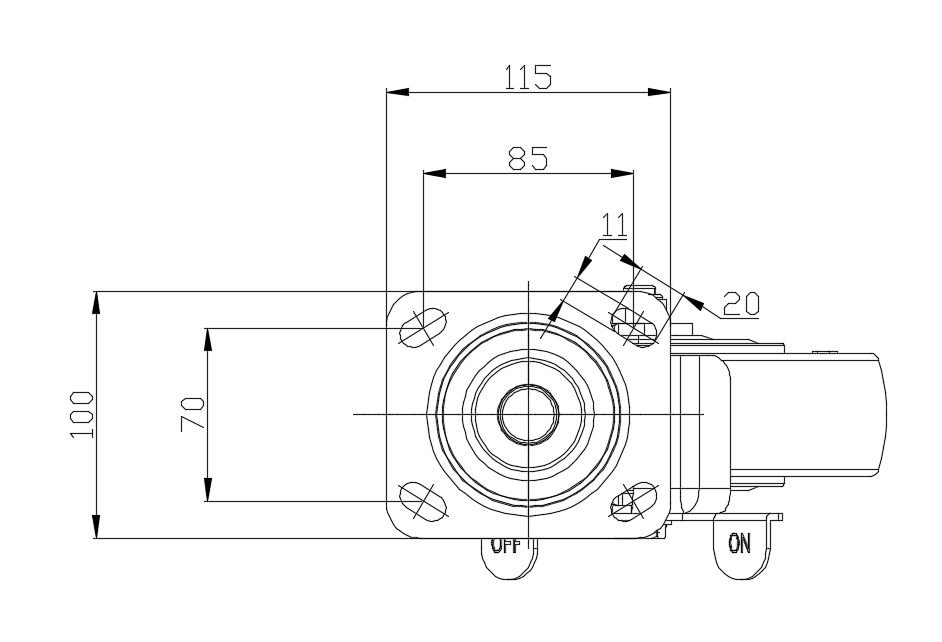

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 45mm　
　　Swivel Interference 290mm　
　　Overall Height 240mm　
　　Swivel Radius 145mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.38kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

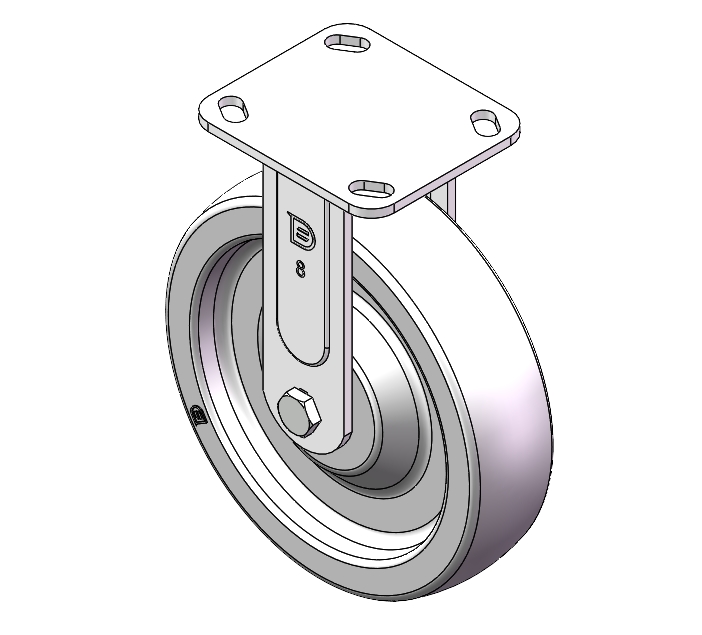

1124 1-1/2" Wide General Purposes Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 200 x 50mm
YJ-11240800071013
200 mm 400 Kgs 240 mm
Rigid Caster, Welded-on Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing cutout Zine-Plated, Top Plate (4.5T) Mounting Type system Reinforced Polypropylene and tread Transparent, Bearing with Ball Bearing.

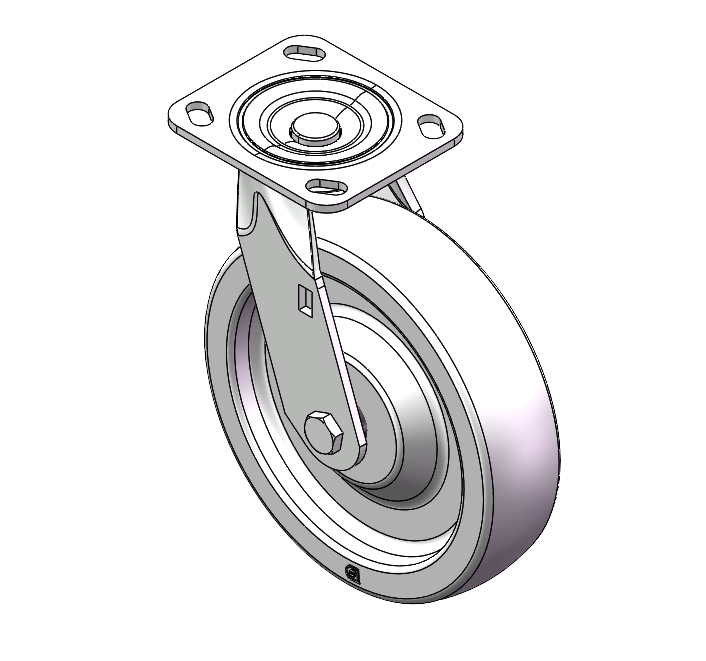

1124 1-1/2" Wide General Purposes Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 200 x 50mm
YJ-11240800072013
200 mm 400 Kgs 240 mm
Swivel Caster, Top Plate Riveted and Stamping with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type. Zine-Plated, Top Plate (4.5T) Mounting Type mechanism. Reinforced Polypropylene and tread. Transparent. Bearing: Ball Bearing.

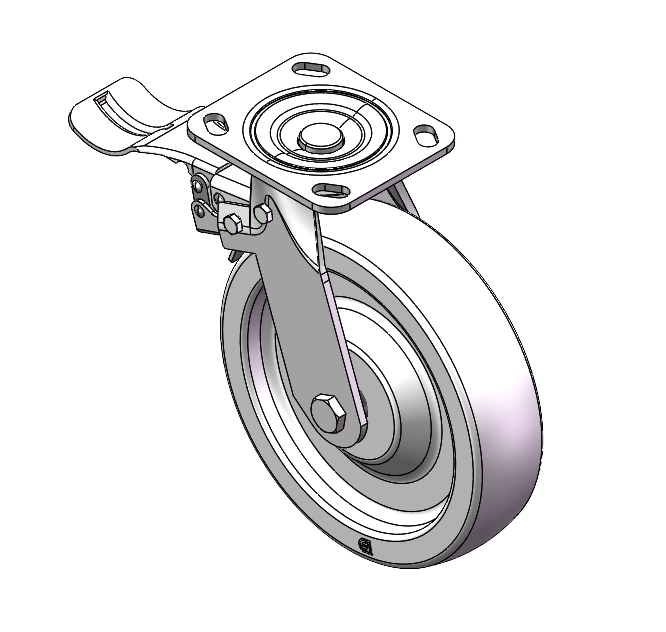

1124 1-1/2" Wide General Purposes Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 200 x 50mm
YJ-11240800074023
200 mm 400 Kgs 240 mm
Center Brake Locking system. Top Plate Riveted and Stamping 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Reinforced Polypropylene and tread. Transparent. Bearing—Ball Bearing.

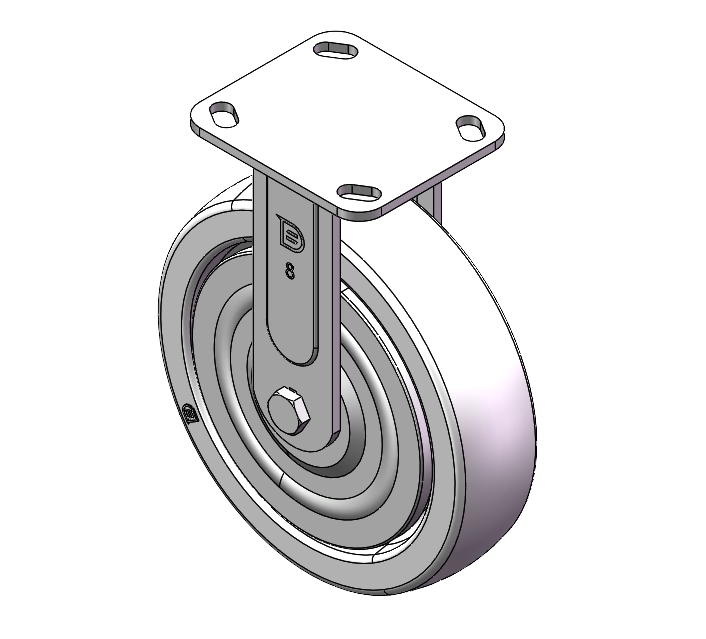

1124 1-1/2" Wide General Purposes Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 200 x 50mm
YJ-11240800071023
200 mm 400 Kgs 240 mm
Rigid Caster, Welded-on Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing cutout Zine-Plated, Top Plate (4.5T) Mounting Type system Reinforced Polypropylene and tread Transparent, Bearing with Ball Bearing.

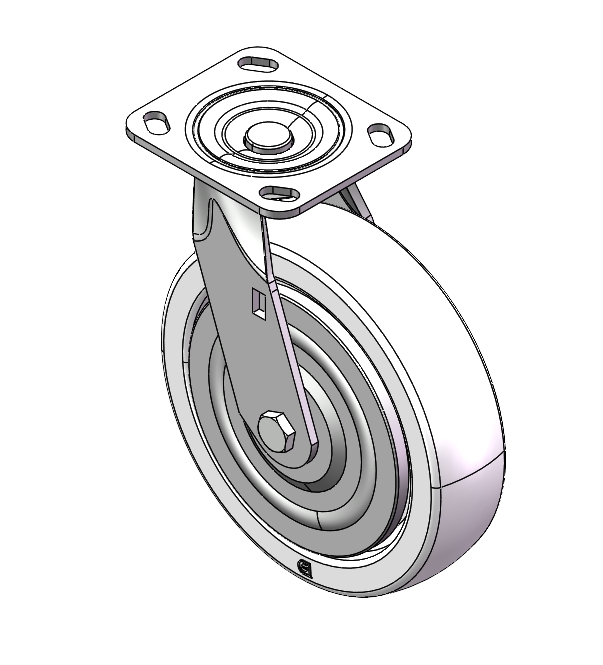

1124 1-1/2" Wide General Purposes Caster Series
