    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　Flat Free Tire Wheel Diameter × Wheel Width 208 x53.5 mm
　　D
　　　　　 　　　
　　YJ-11240800434013 　　　
Center Brake Locking system. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Q235 Wheel Hub with High-Quality Resilient Rubber tread. Black, Bearing with Chrome steel Ball bearing.
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: iron core

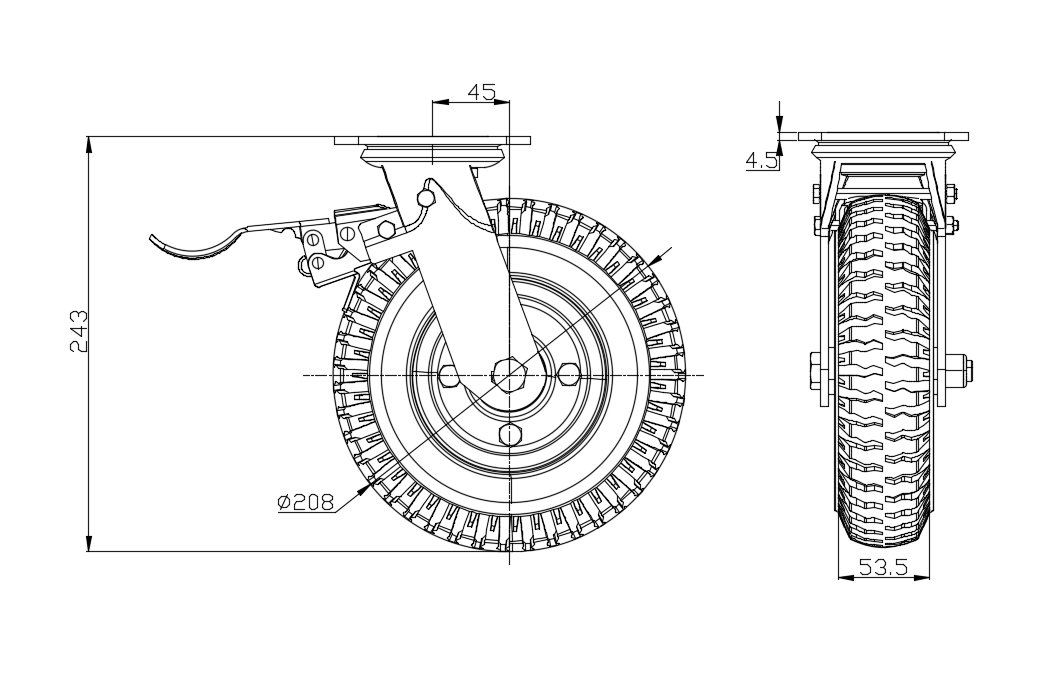

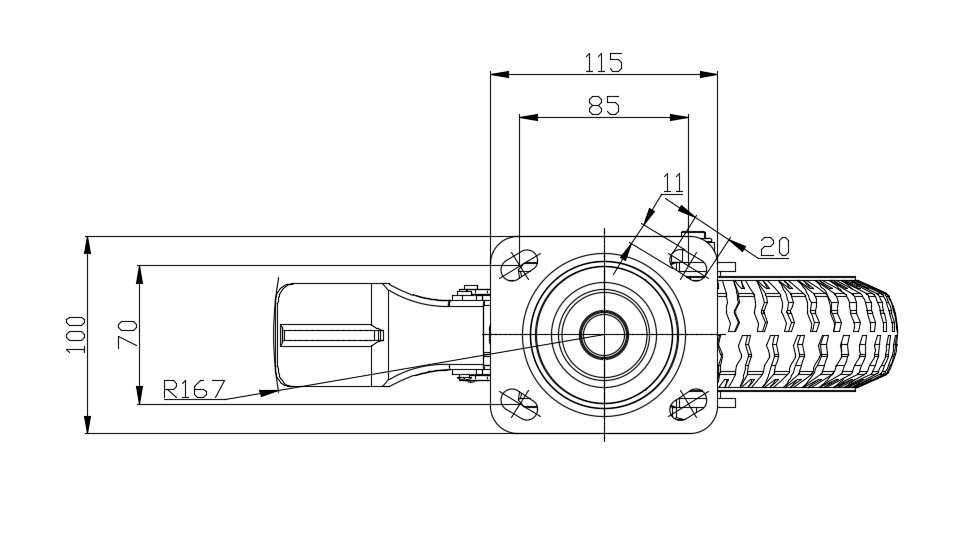

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 208mm　

　　Wheel Width 53.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 45mm　
　　Swivel Interference 334mm　
　　Overall Height 243mm　
　　Swivel Radius 167mm　
　　Hardness Of Tread 82±5° Shore D　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 225kgs　
　　Temperature -25°C to +80°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.10kgs　
　　Standard ISO22883
　　
　　
