    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　EQPU (brown round) Wheel Diameter × Wheel Width 200 x 50mm
　　
　　　　　 　　　
　　YJ-11240800551013 　　　

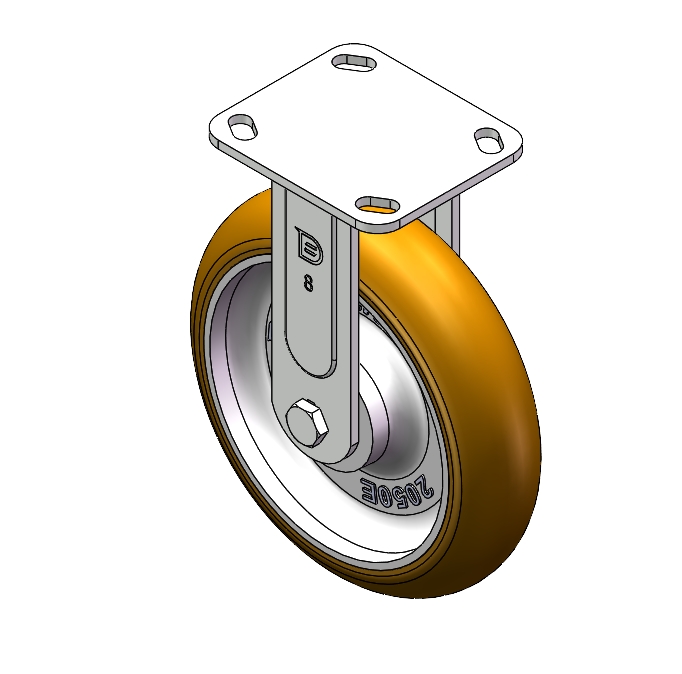

Rigid Caster, Welded Caster Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing cutout Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High Quality Polyurethane tread Iron brown, Bearing with Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

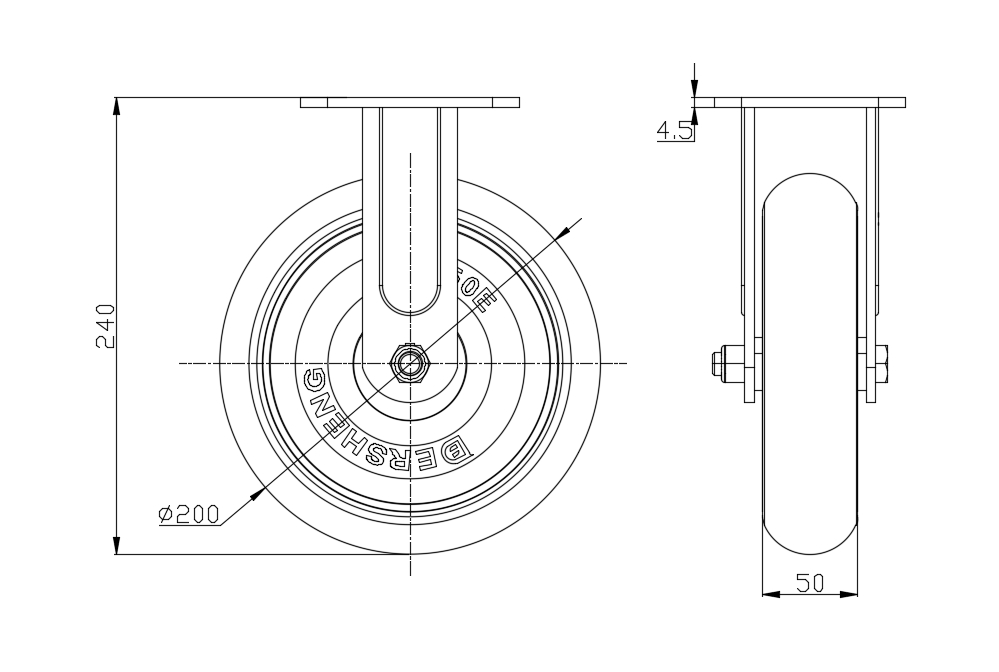

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

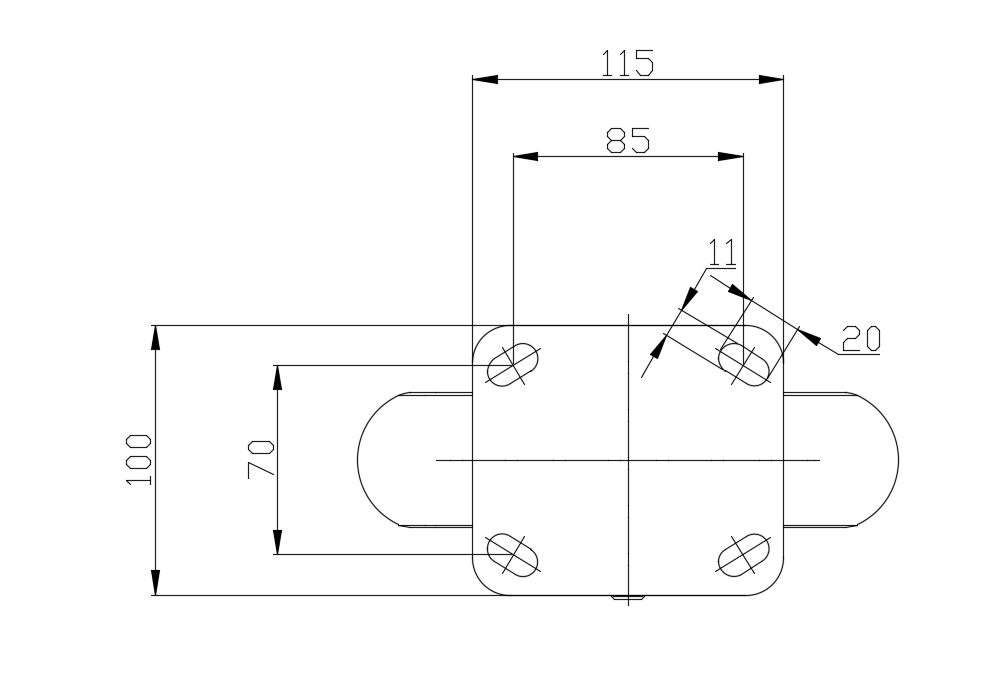

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 240mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.32kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
EQPU (brown round) Wheel Diameter × Wheel Width 200 x 50mm
YJ-11240800554023
200 mm 400 Kgs 240 mm

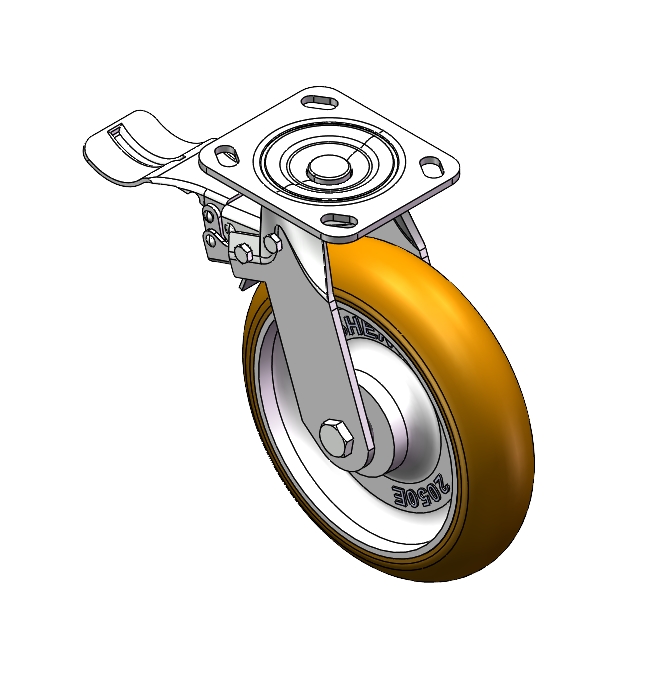

Center Brake Locking system. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High Quality Polyurethane tread. Iron brown, Bearing with Ball Bearing.
