    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　AQPU (brown flat) Wheel Diameter × Wheel Width 200 x 50mm
　　
　　　　　 　　　
　　YJ-11240800602033 　　　

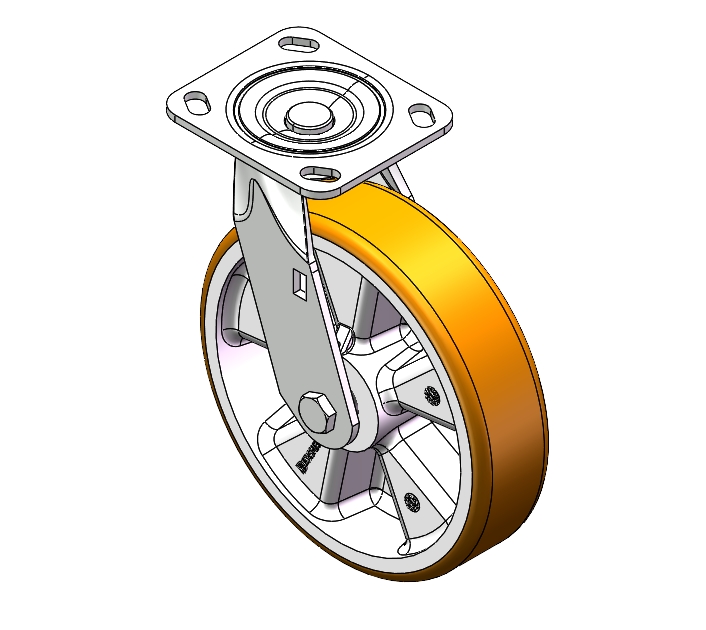

Swivel Caster with Riveted Fork and Stamping Fork—85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type Zine-Plated, Fork-mounted (4.5T) Mounting Type system Aluminum core, High Quality Polyurethane tread Brown color, Bearing—Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

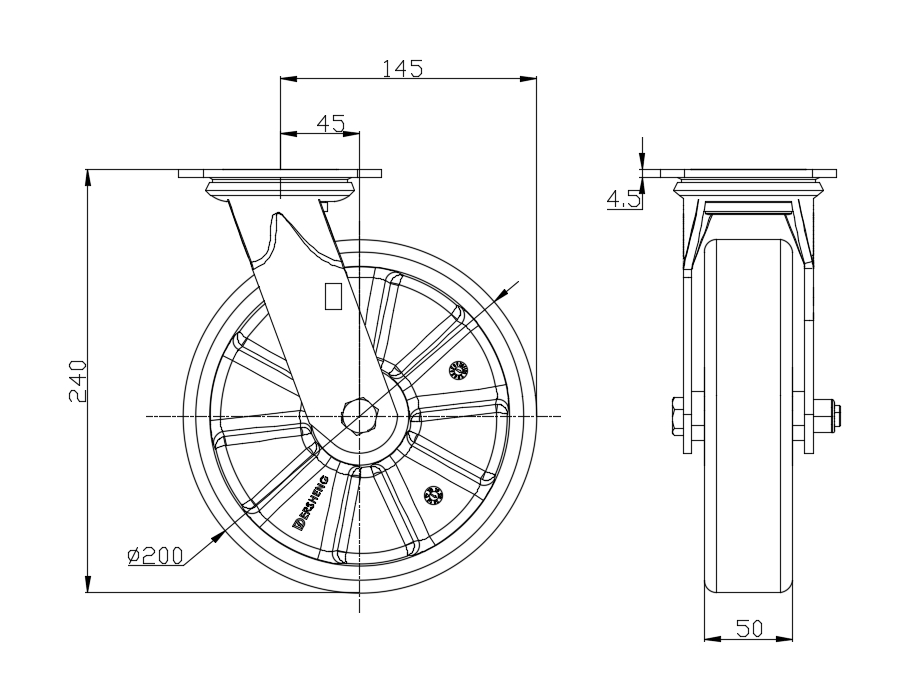

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

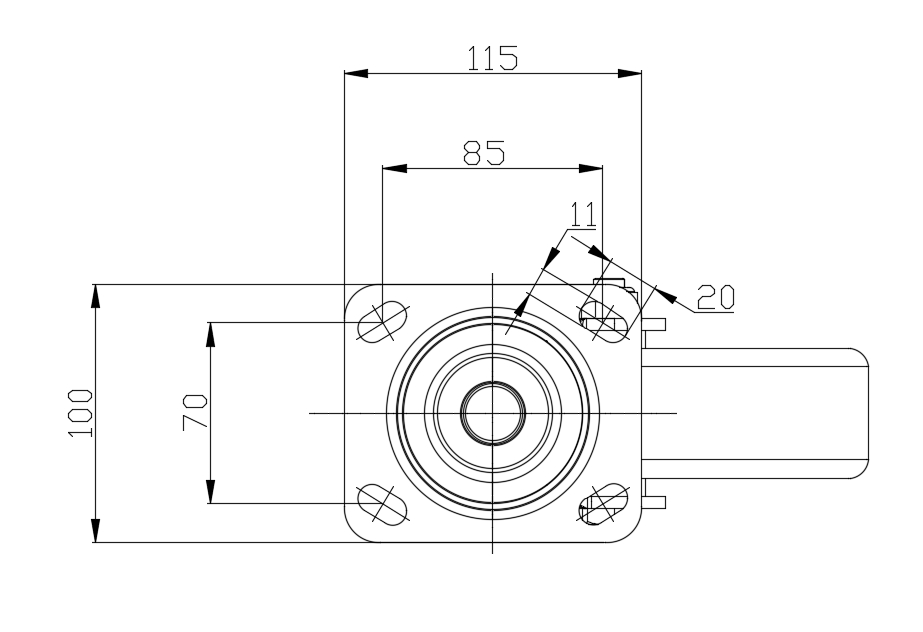

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 45mm　
　　Swivel Interference 290mm　
　　Overall Height 240mm　
　　Swivel Radius 145mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.19kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
AQPU (brown flat) Wheel Diameter × Wheel Width 200 x 50mm
YJ-11240800601033
200 mm 400 Kgs 240 mm

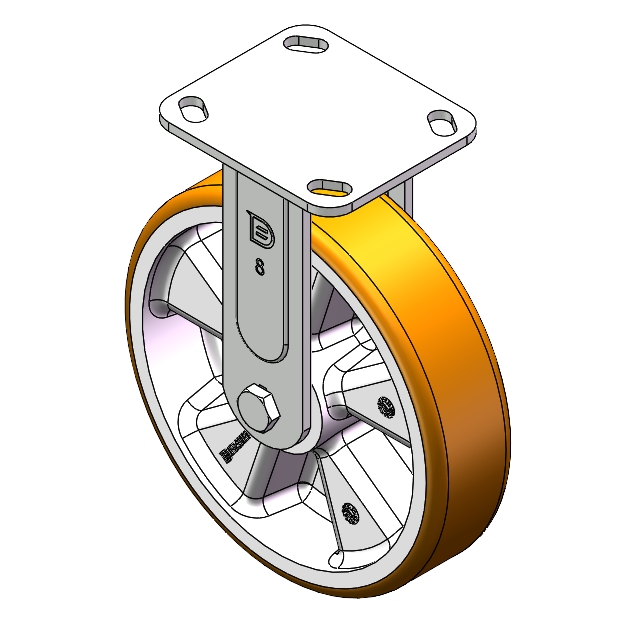

Rigid Caster, Welded Caster Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing cutout Zine-Plated, Top Plate (4.5T) Mounting Type system Aluminum core, High Quality Polyurethane tread Brown color, Bearing—Ball Bearing.
