    Product Data Sheet
1127 Series — H-3 Series
　　PPP (White and Black) Wheel Diameter × Wheel Width 40×20mm
　　EAN
　　　　　 　　　
　　YJ-W11270150294014 　　　

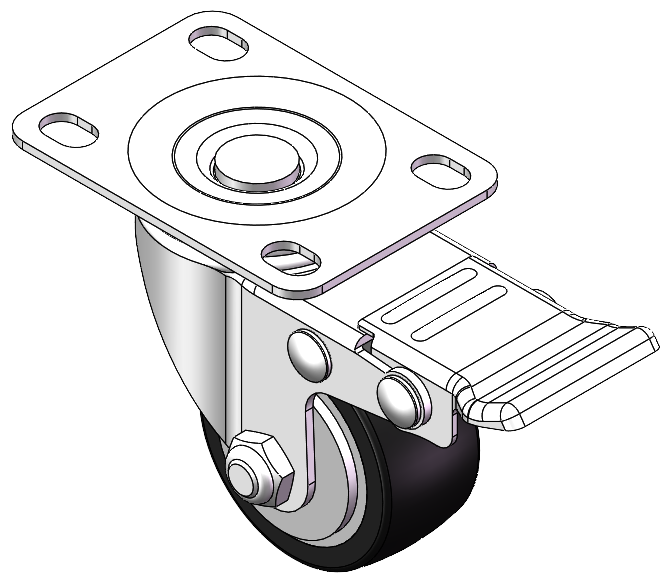

Casters with Total Brakes and a Locking system. Top Plate with Riveted, Stamping Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Polypropylene Wheel Center and tread. White and black. Bearing with Ball Bearing.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

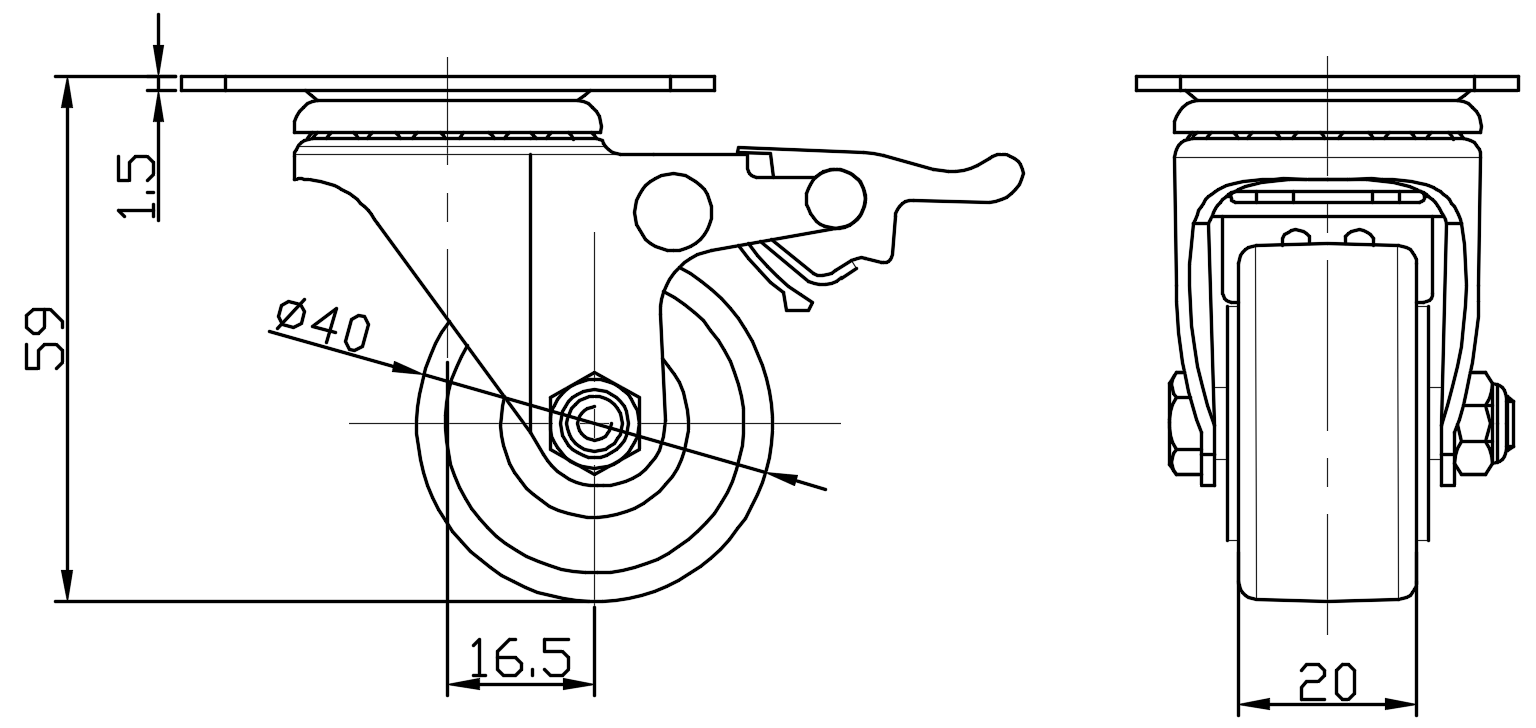

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 40mm　

　　Wheel Width 20mm　
　　Wheel Bearing Wheels With Ball Bearings

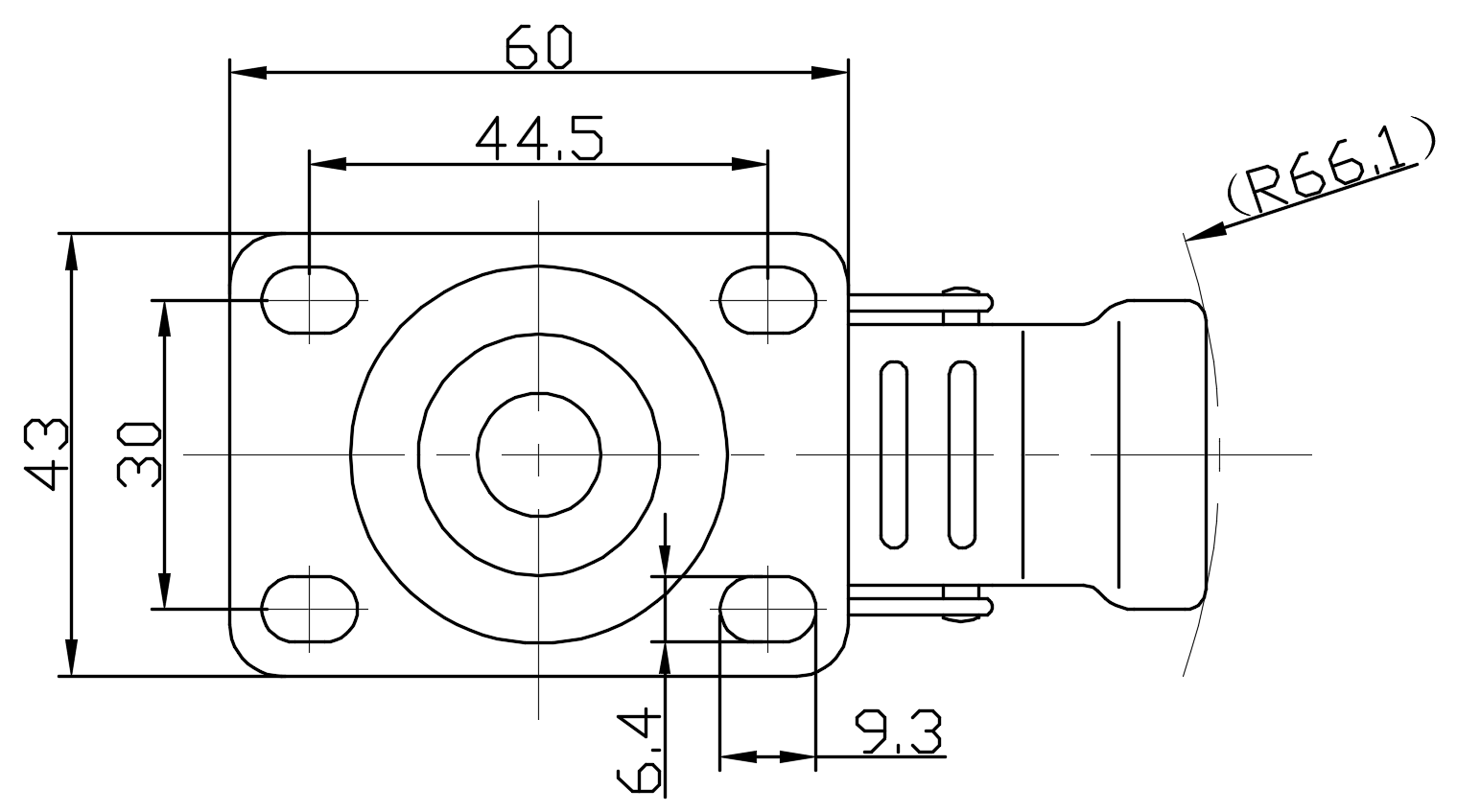

　　Plate Size 60 x 43mm　
　　Bolt Hole Spacing 44.5 x 30mm　
　　Plate Hole 9.3 x 6.4mm　
　　Offset 16.5mm　
　　Swivel Interference 132.2mm　
　　Overall Height 59mm　
　　Swivel Radius 66.1mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 40kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 60kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.18kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1127 Series — H-3 Series
PPP (White and Black) Wheel Diameter × Wheel Width 40×20mm
YJ-W11270150291014
40 mm 40 Kgs 59 mm

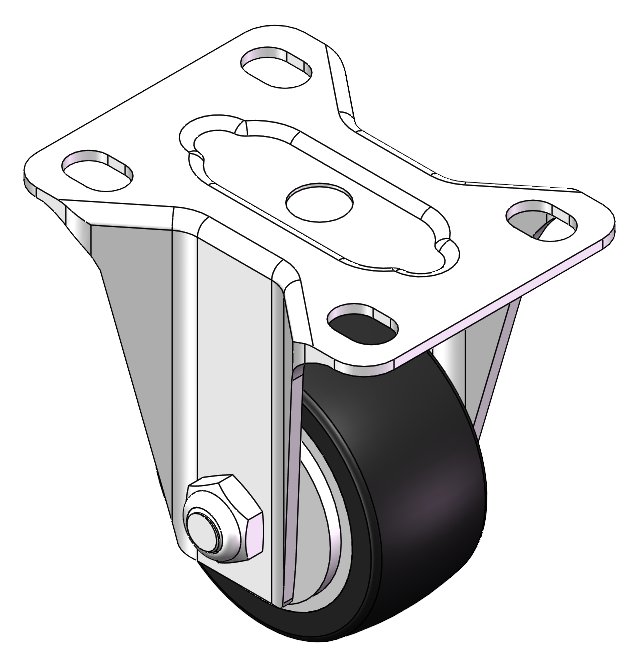

Rigid Caster with Stamping Fabricated Caster Fork 44.5 x 30mm (1-3/4" x 1-1/8") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Polypropylene Wheel Center and tread. White and black finish. Bearing: Ball Bearing.
1127 Series — H-3 Series
PPP (White and Black) Wheel Diameter × Wheel Width 40×20mm
YJ-W11270150292014
40 mm 40 Kgs 59 mm

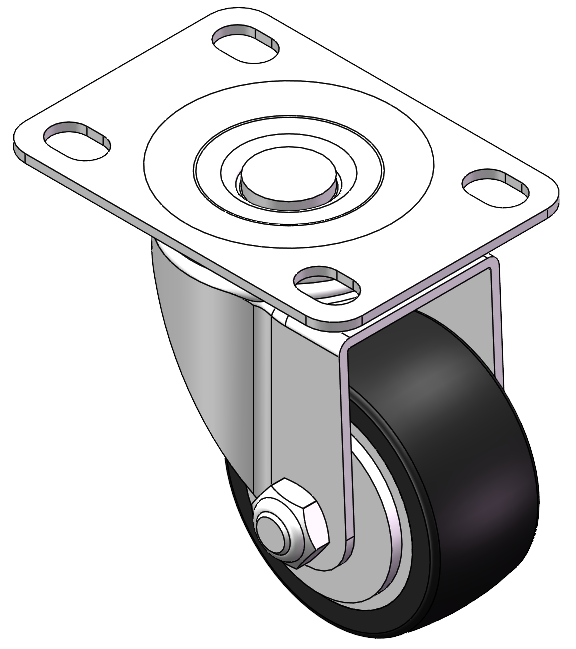

Swivel Caster with Stamping Fabricated Caster Fork 44.5 x 30mm (1-3/4" x 1-1/8") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Polypropylene Wheel Center and tread. White and black finish. Bearing: Ball Bearing.
