    Product Data Sheet
1127 Series — H-3 Series
　　PPP (White and Black) Wheel Diameter × Wheel Width 40×20mm
　　EAN
　　　　　 　　　
　　YJ-W11270150295014 　　　

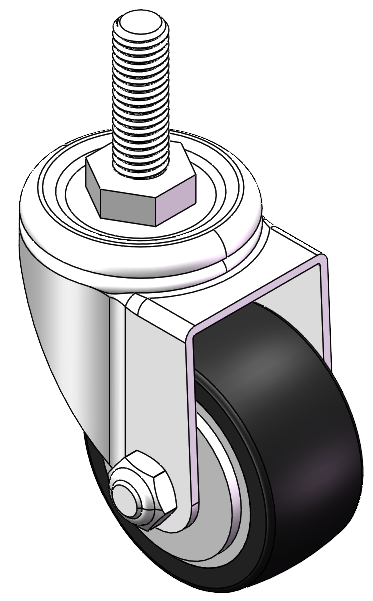

Swivel Caster, thread-Riveted Stamping Fork—M8-P1.25 Zine-Plated, Mounting Type - Threaded Stem Polypropylene Wheel Center and tread White and black, Bearing—Ball Bearing.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

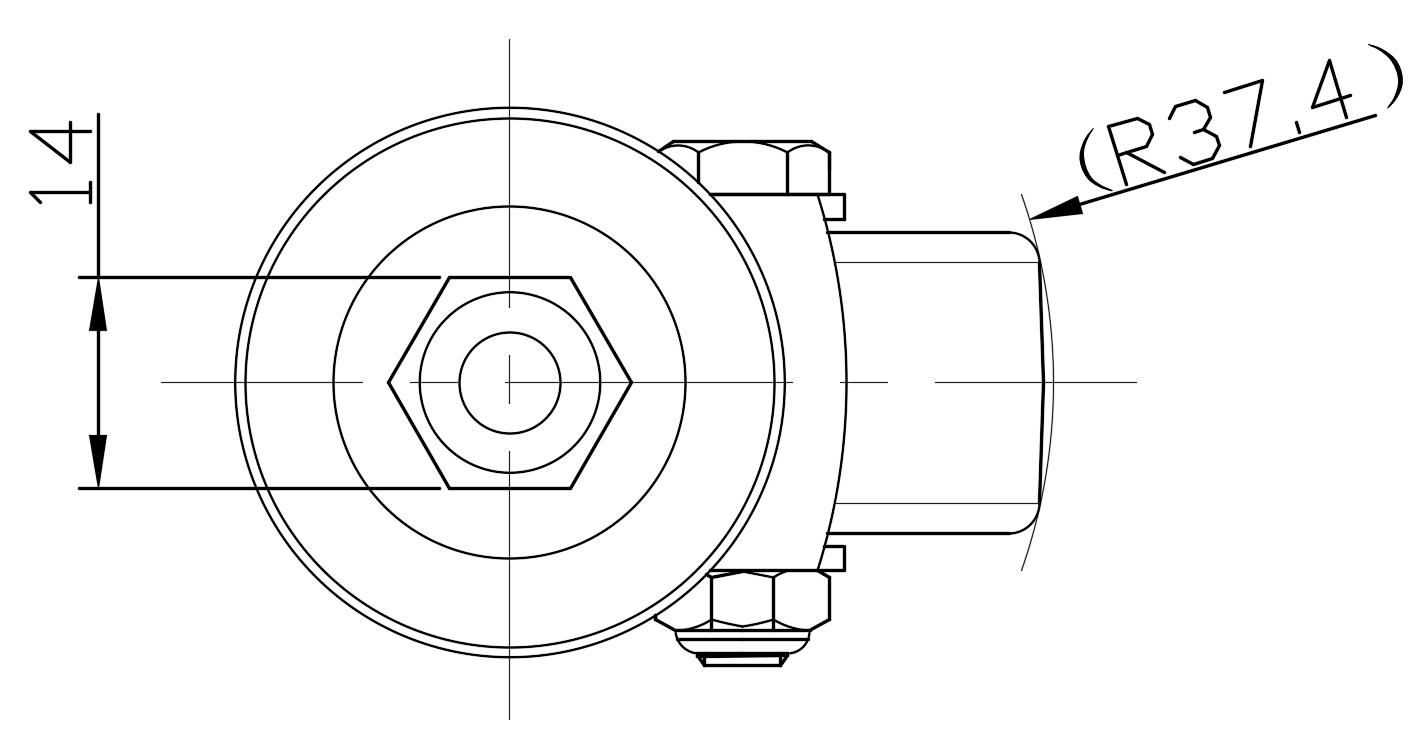

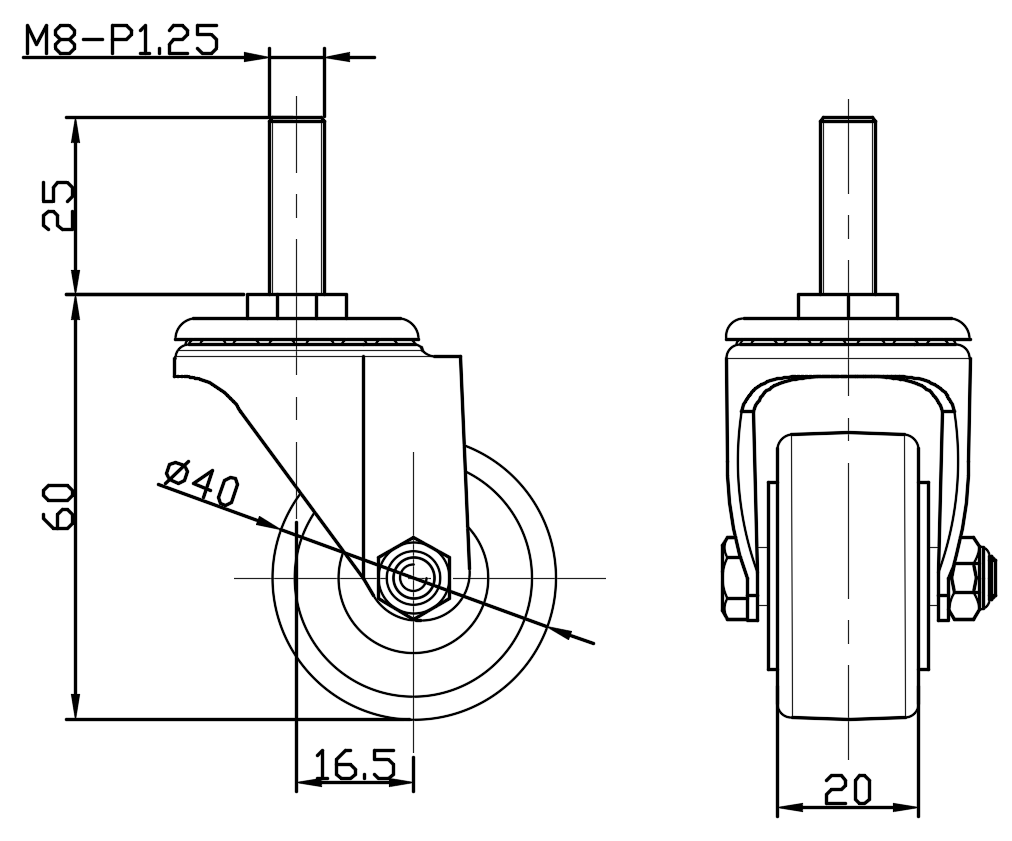

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 40mm　

　　Wheel Width 20mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M8-P1.25
　　Threaded Length 25mm
　　Offset 16.5mm　
　　Swivel Interference 74.8mm　
　　Overall Height 60mm　
　　Swivel Radius 37.4mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 40kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 60kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.13kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1127 Series — H-3 Series
PPP (White and Black) Wheel Diameter × Wheel Width 40×20mm
YJ-W11270150296014
40 mm 40 Kgs 60 mm

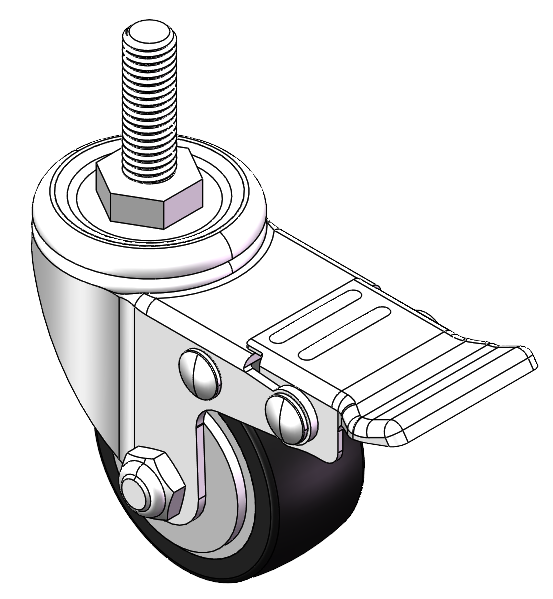

Casters with Total Brakes and a Locking system. Thread-Riveted Stamping Fork—M8-P1.25. Zine-Plated, Mounting Type - Threaded Stem. Polypropylene Wheel Center and tread. White and black. Bearing—Ball Bearing.
