    Product Data Sheet
1127 Series — H-3 Series
　　PPP (White and Black) Wheel Diameter × Wheel Width 50×23mm
　　EAN
　　　　　 　　　
　　YJ-W11270200294014 　　　
Casters with Total Brakes and Locking system. Top Plate with Riveted, Stamping Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing. Surface electroplating, Mounting Type - Top Plate. Polypropylene Wheel Center and tread. White and black. Bearing with Ball Bearing.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

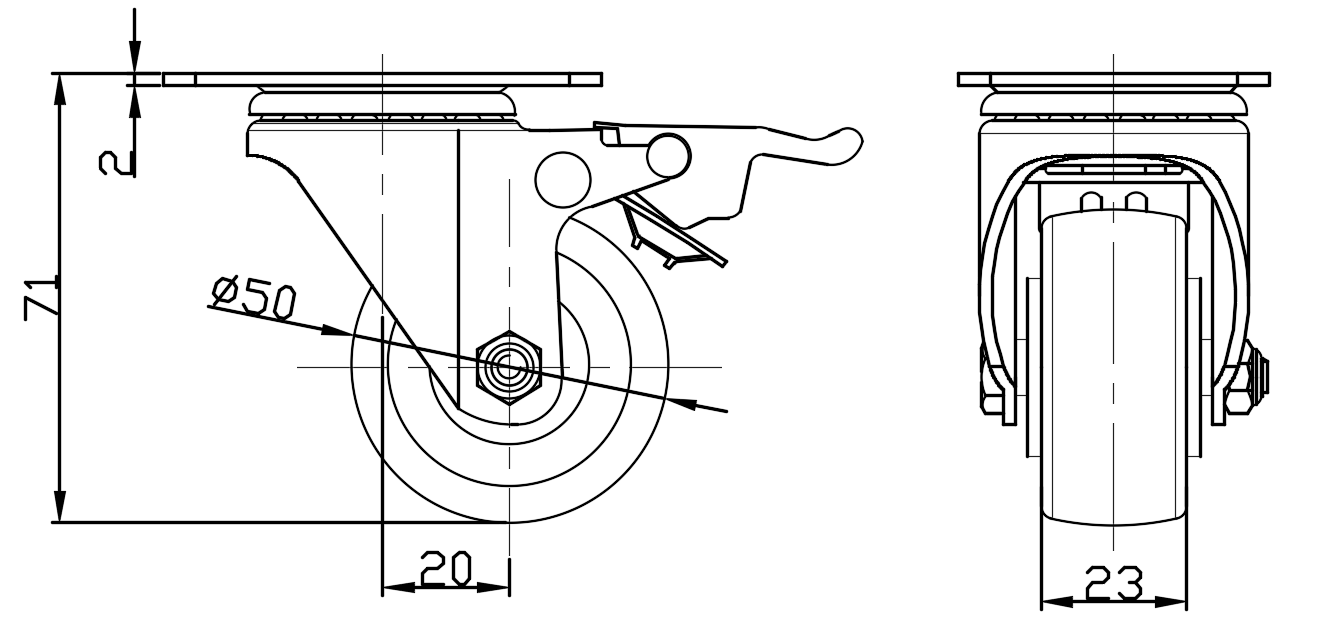

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 50mm　

　　Wheel Width 23mm　
　　Wheel Bearing Wheels With Ball Bearings

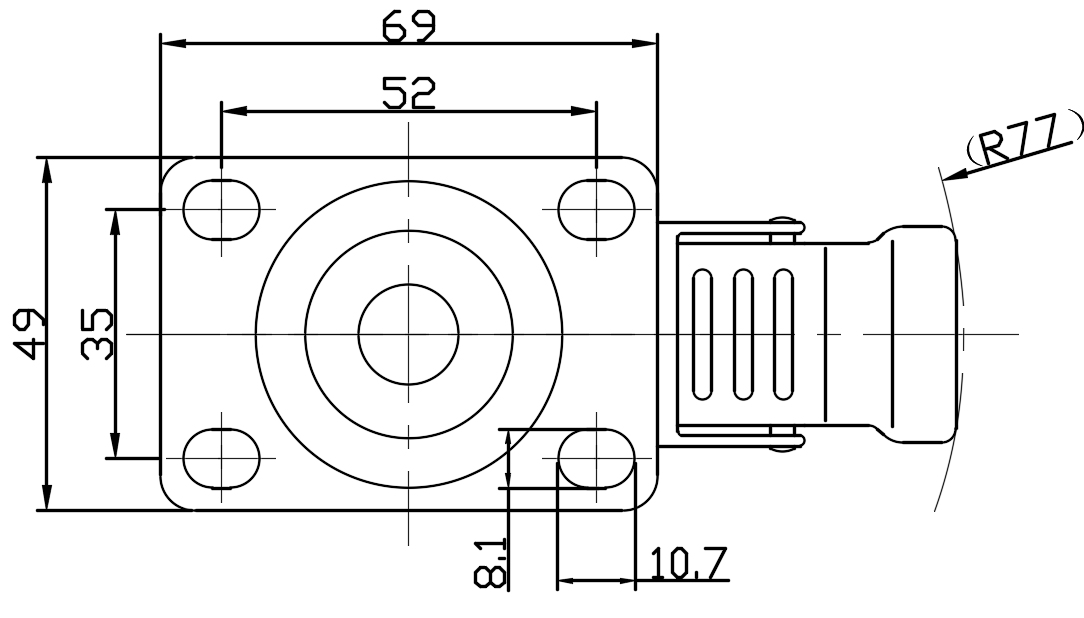

　　Plate Size 69 x 49mm　
　　Bolt Hole Spacing 52 x 35mm　
　　Plate Hole 10.7 x 8.1mm　
　　Offset 20mm　
　　Swivel Interference 154mm　
　　Overall Height 71mm　
　　Swivel Radius 77mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 50kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 75kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.25kgs　
　　Standard ISO22883
　　
　　
