    Product Data Sheet
1127 Series — H-3 Series
　　PPP (White and Black) Wheel Diameter × Wheel Width 50×23mm
　　EAN
　　　　　 　　　
　　YJ-W11270200295024 　　　
Swivel Caster, thread-Riveted Stamping Fork—M8-P1.25 Surface electroplating, Mounting Type - Threaded Stem Polypropylene Wheel Center and tread White and black, Bearing—Ball Bearing.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

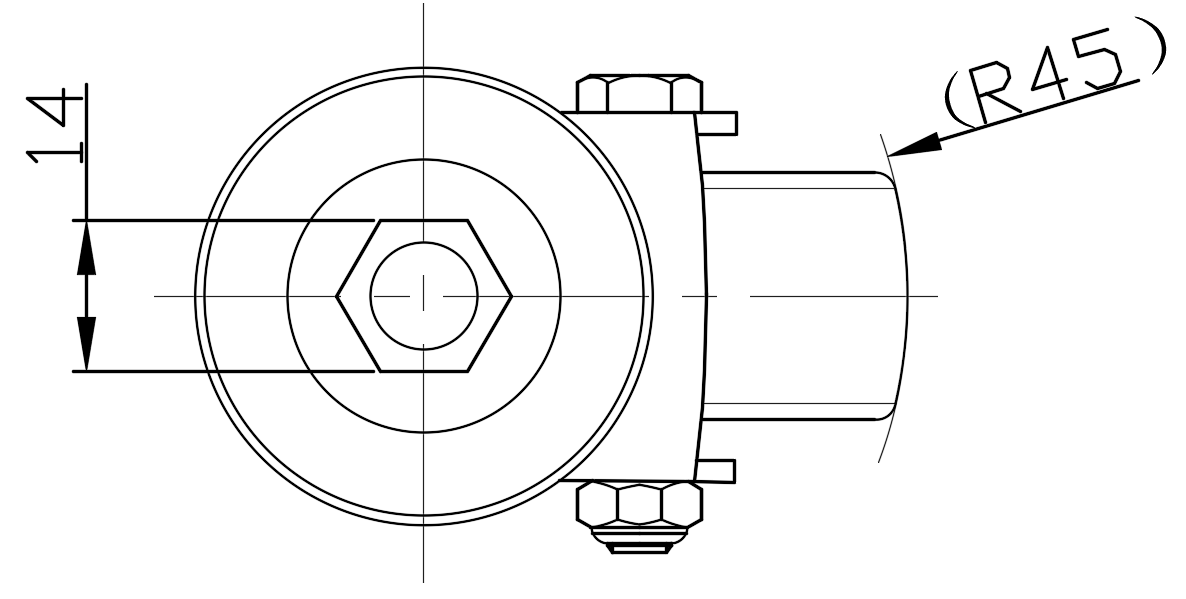

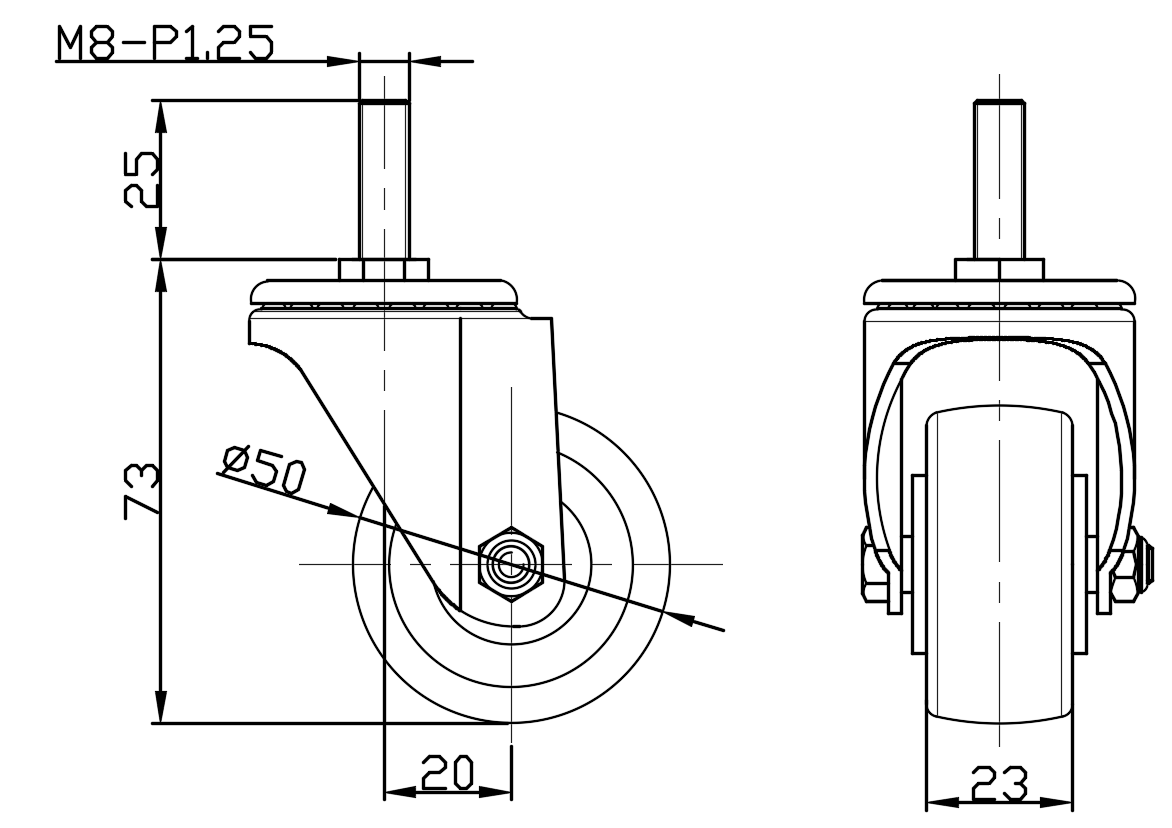

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 50mm　

　　Wheel Width 23mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M8-P1.25
　　Threaded Length 25mm
　　Offset 20mm　
　　Swivel Interference 90mm　
　　Overall Height 73mm　
　　Swivel Radius 45mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 50kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 75kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.18kgs　
　　Standard ISO22883
　　
　　
