Zine-Plated, Mounting Type - Top Plate.
Cast Iron core with High Quality Polyurethane Wheel Tread.
Red Cast Iron finish, Ball Bearings.
Wheel Center: iron core/cast iron core

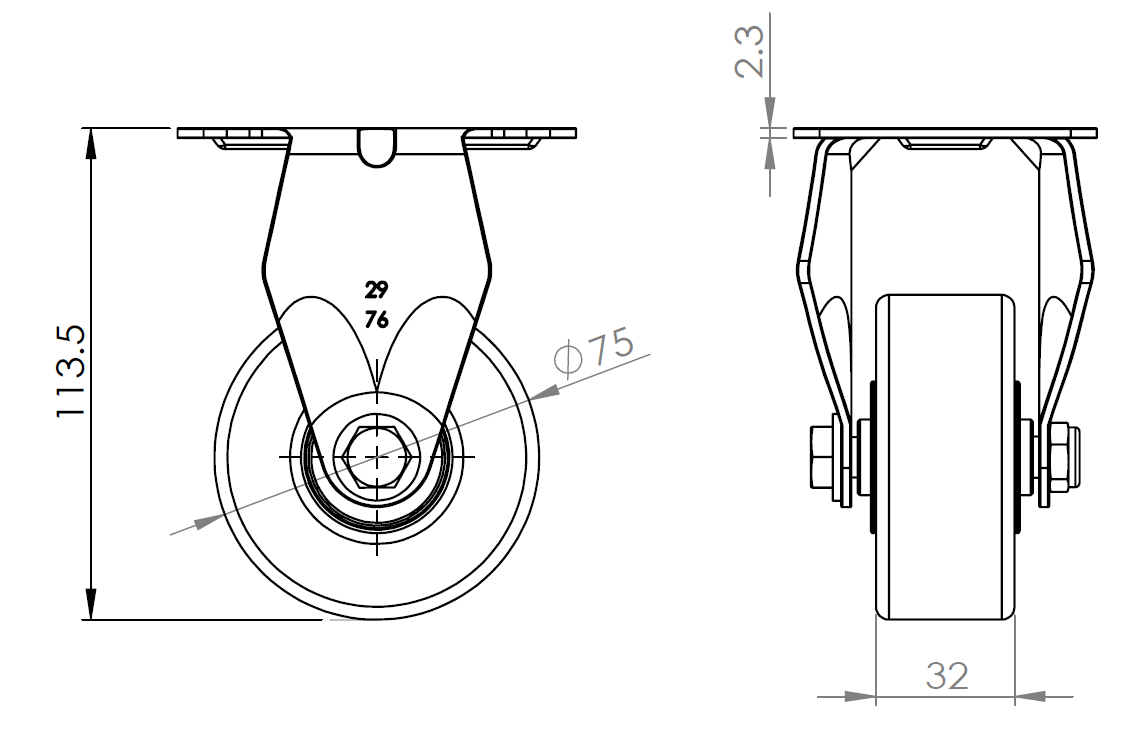

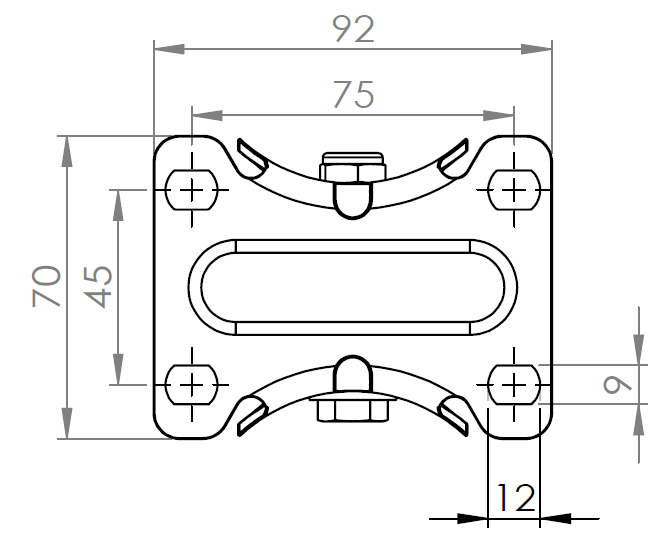

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
32mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
92 x 70mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
12 x 9mm
Overall Height
113.5mm
Hardness Of Tread
93±5° Shore A
Load Capacity (Dynamic)
180kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
270kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.40kgs
Standard
ISO22883
