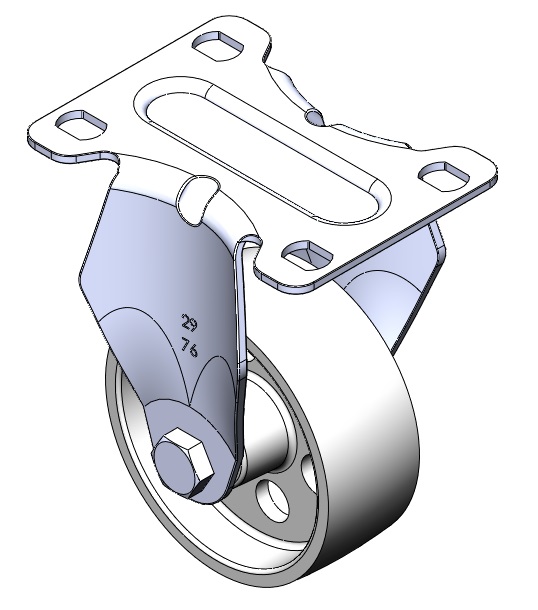

Zine-Plated, Mounting Type - Top Plate.
Cast Iron Wheel Center and Wheel Tread.
Black, Plain Bearing.
Wheel Center: cast iron

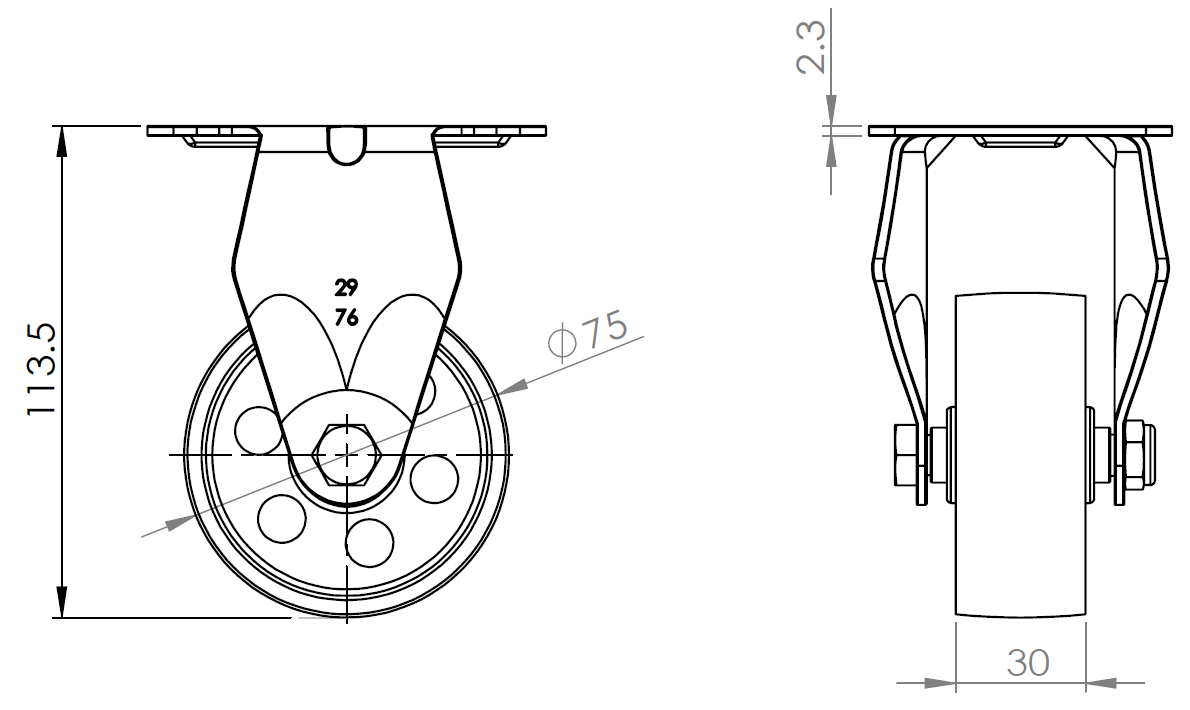

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
30mm
Wheel Bearing
Wheel With Plain Bearing

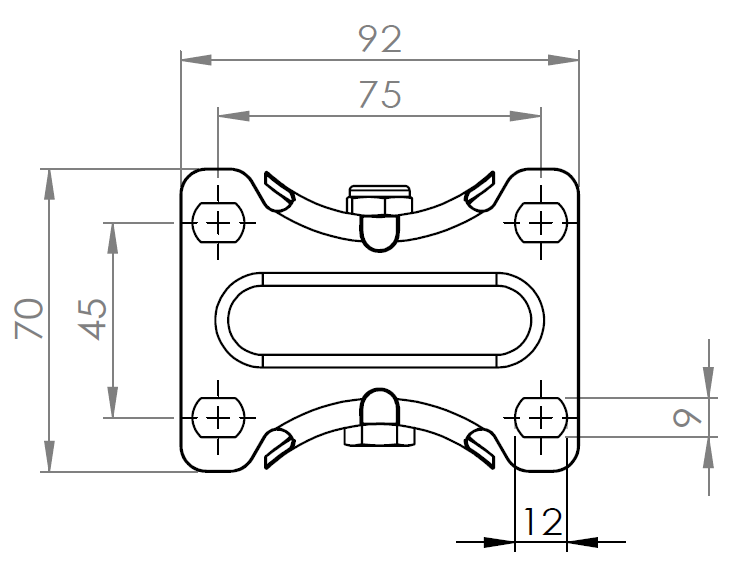

Plate Size
92 x 70mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
12 x 9mm
Overall Height
113.5mm
Load Capacity (Dynamic)
70kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ○ ○ ○ ○
Floor Surface Preservation ● ○ ○ ○ ○
Load Capacity (Static)
105kgs
Temperature
-20°C to +250°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.40kgs
Standard
ISO22883
