Zine-Plated, Mounting Type - Top Plate.
Reinforced Polypropylene plastic core and Wheel Tread.
Bearing - Plain Bearing.
Wheel Center: Thermoplastic plastic (PA6)

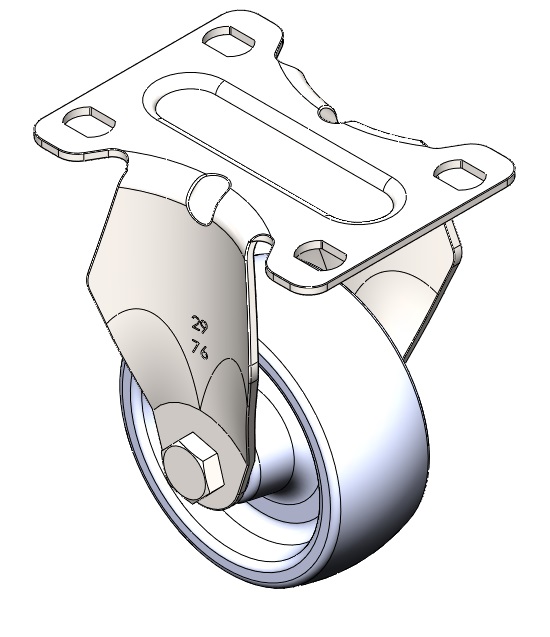

Drawings are for reference only and may differ from the product
Metric Imperial

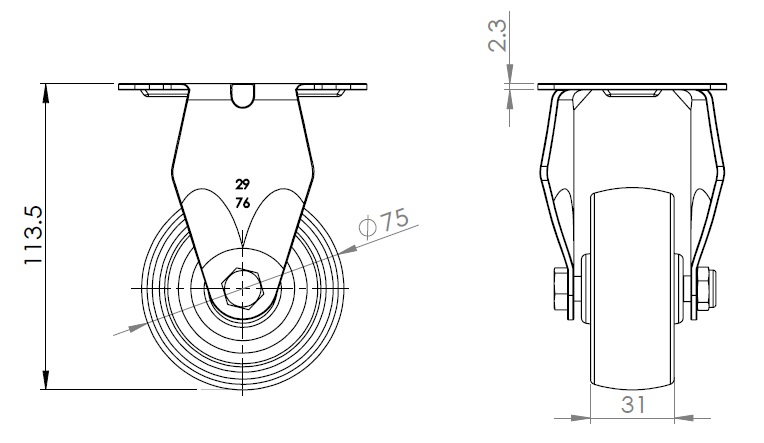

Wheel Diameter
75mm
Wheel Width
31mm
Wheel Bearing
Wheel With Plain Bearing

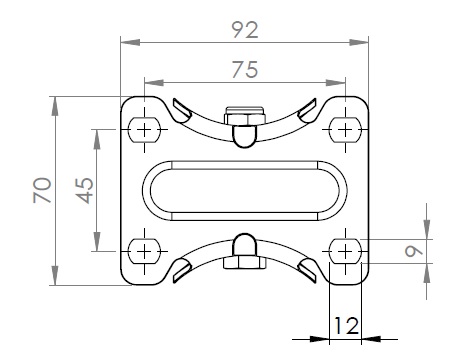

Plate Size
92 x 70mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
12 x 9mm
Overall Height
113.5mm
Hardness Of Tread
70±5° Shore D
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
150kgs
Temperature
-25°C to +80°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.40kgs
Standard
ISO22883
