    Product Data Sheet
1129 Medical Caster Series
　　Nylon Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904001015 　　　
　　　　　 　　　
Rigid Caster with integrally molded Stamping footrest and 72 x 53.5 mm (2-7/8" x 2-1/8") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Reinforced Polypropylene and Wheel Tread. Bearing - Plain Bearing.
　　Wheel surface: Thermoplastic plastic (PA6)
　　Wheel Center: Thermoplastic plastic (PA6)

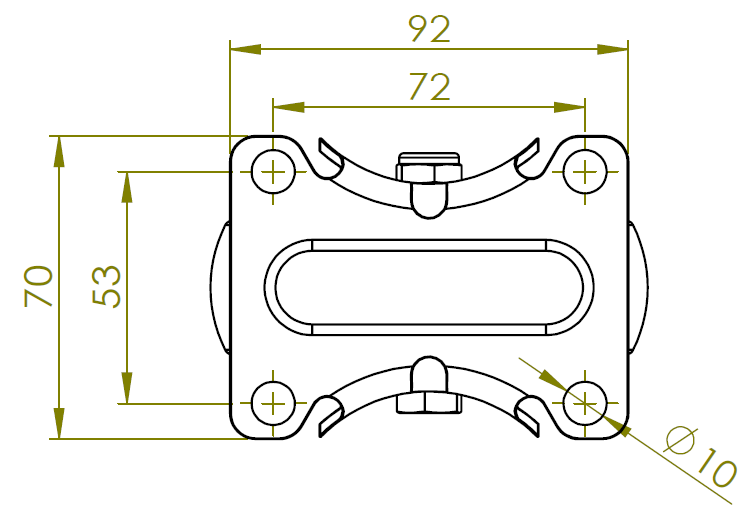

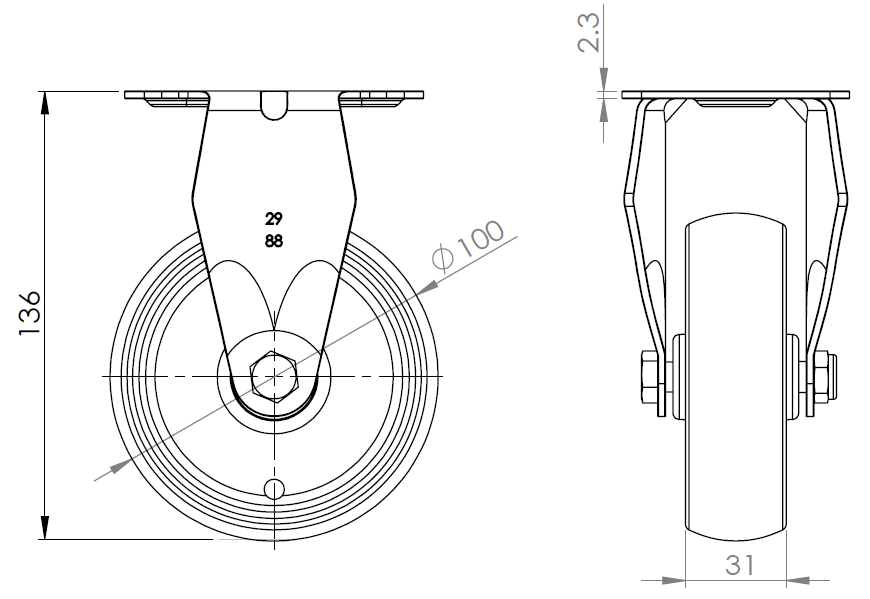

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Overall Height 136mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 120kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 180kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.45kgs　
　　Standard ISO22883
　　
　　
