    Product Data Sheet
1129 Medical Caster Series
　　Rubber Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904001029 　　　
　　　　　 　　　

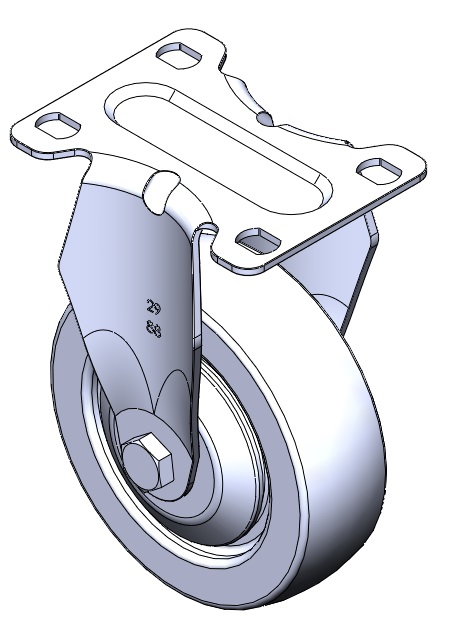

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate, and iron cover.
Cast Iron core with High-Quality Resilient Rubber Wheel Tread.
Bearing - Plain Bearing.
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: iron core/cast iron core

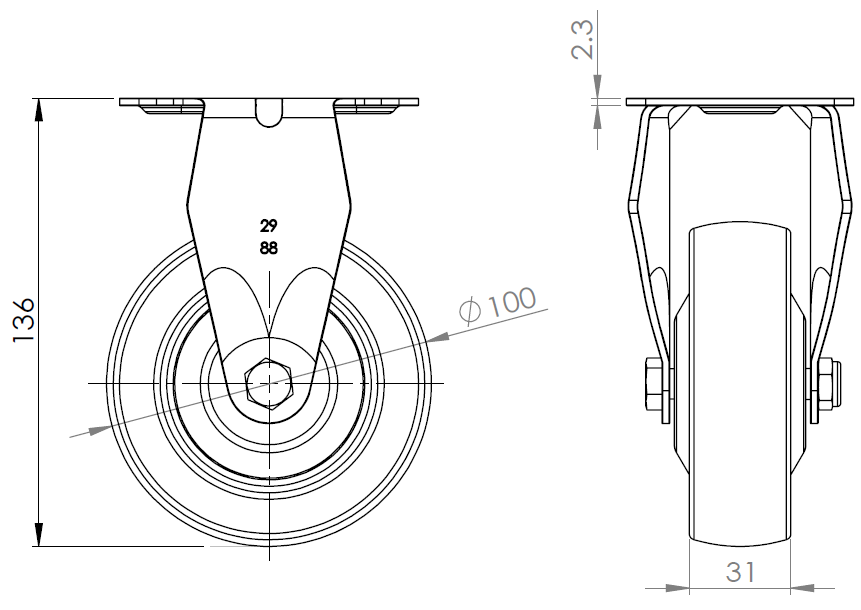

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing

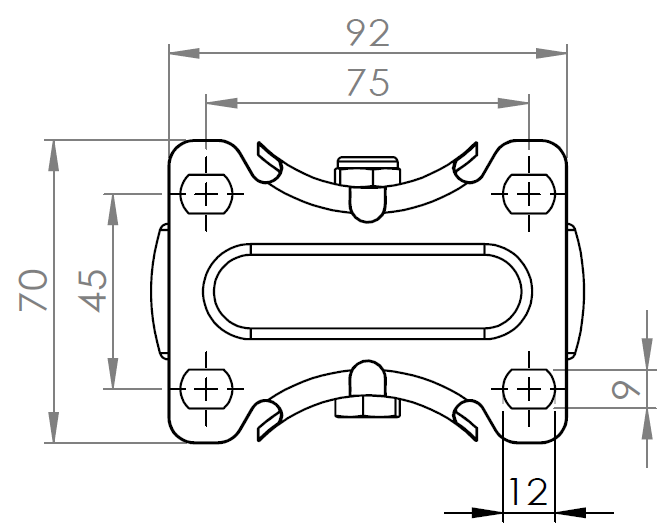

　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 136mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.45kgs　
　　Standard ISO22883
　　
　　
