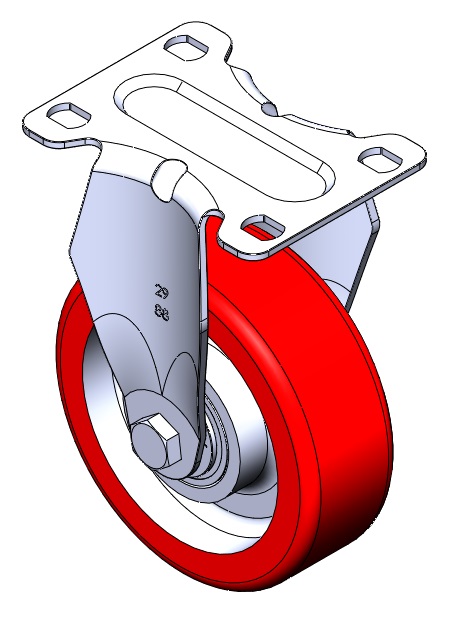

Zine-Plated, Mounting Type - Top Plate.
Cast Iron core with High Quality Polyurethane Wheel Tread.
Red Cast Iron finish, Bearing with Ball Bearings.
Wheel Center: iron core/cast iron core

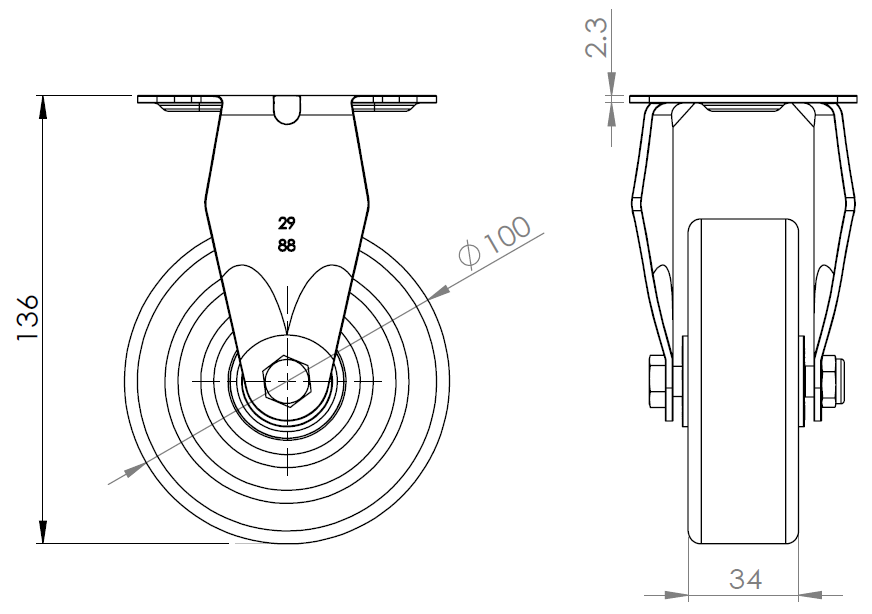

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
34mm
Wheel Bearing
Wheels With Ball Bearings

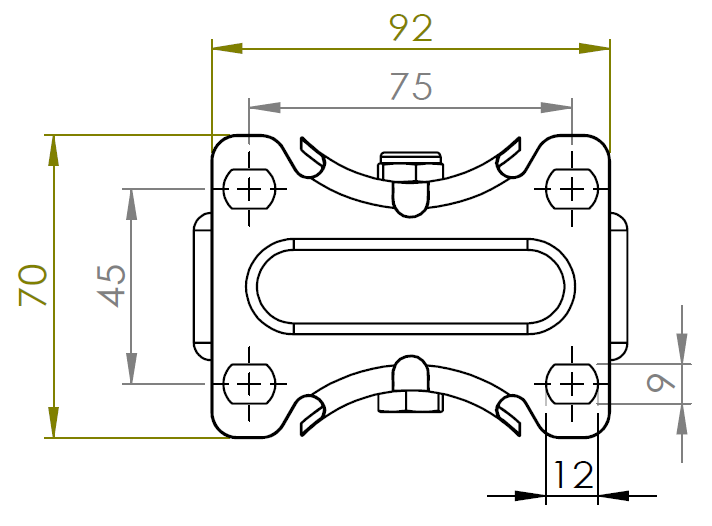

Plate Size
92 x 70mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
12 x 9mm
Overall Height
136mm
Hardness Of Tread
93±5° Shore A
Load Capacity (Dynamic)
320kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
480kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.45kgs
Standard
ISO22883
