Zine-Plated, Mounting Type - Top Plate.
Phenolic Wheel.
Black, Plain Bearing.
Wheel Center: Compressed synthetic resin impregnated with fabric

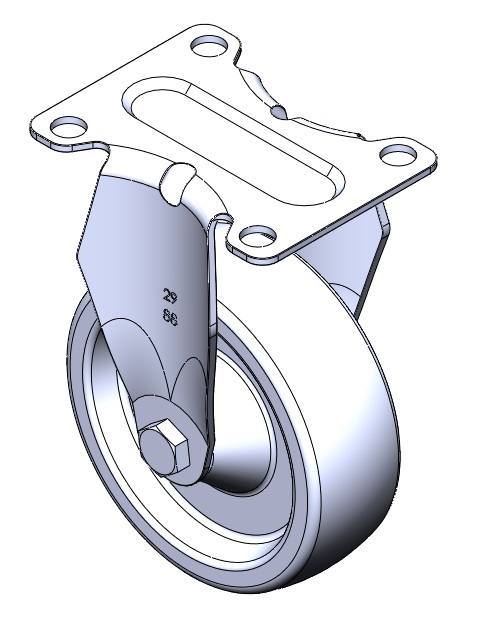

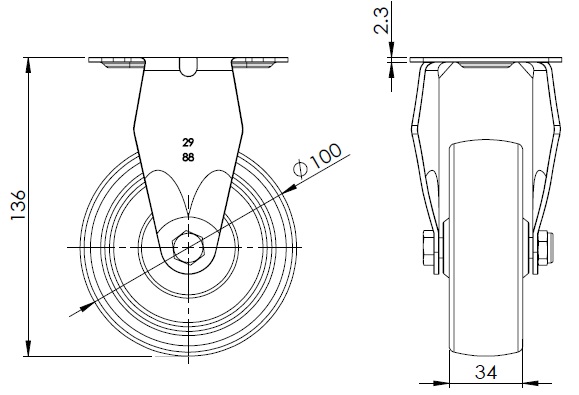

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
34mm
Wheel Bearing
Wheel With Plain Bearing

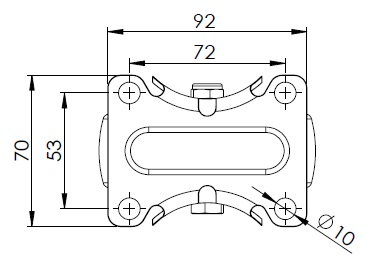

Plate Size
92 x 70mm
Bolt Hole Spacing
72 x 53mm
Plate Hole
10mm
Overall Height
136mm
Hardness Of Tread
80±5° Shore D
Load Capacity (Dynamic)
135kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
202.5kgs
Temperature
-20°C to +150°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.45kgs
Standard
ISO22883
