Zine-Plated, Mounting Type - Top Plate with plastic cover.
Aluminum core with High Quality Polyurethane Wheel Tread.
Gray. Bearings: Ball Bearings.
Wheel Center: aluminum core

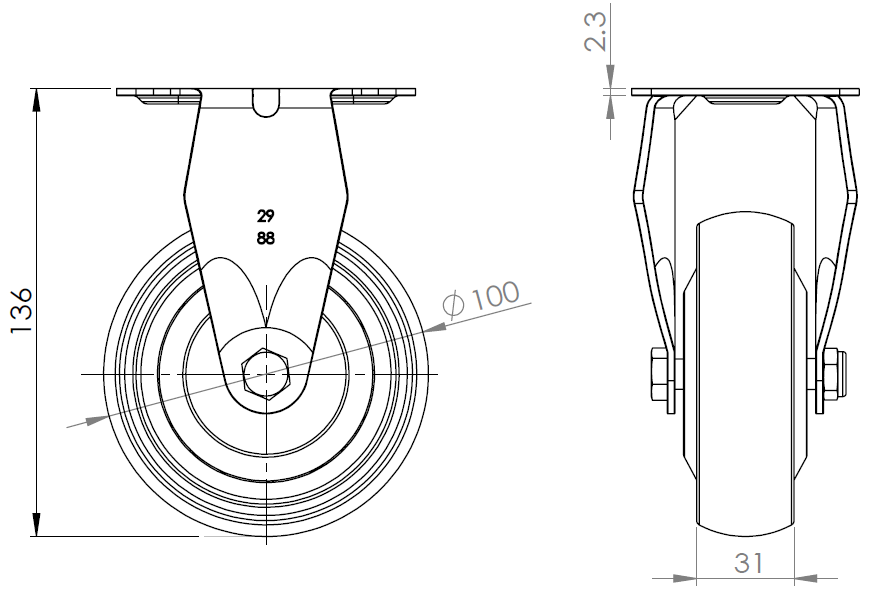

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings

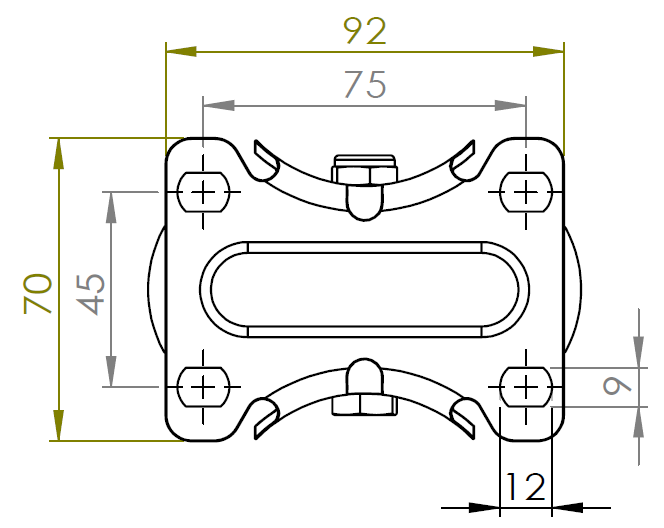

Plate Size
92 x 70mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
12 x 9mm
Overall Height
136mm
Hardness Of Tread
77±5° Shore A
Load Capacity (Dynamic)
200kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
300kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.45kgs
Standard
ISO22883
