    Product Data Sheet
1129 Medical Caster Series
　　PP Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904001041 　　　
　　　　　 　　　

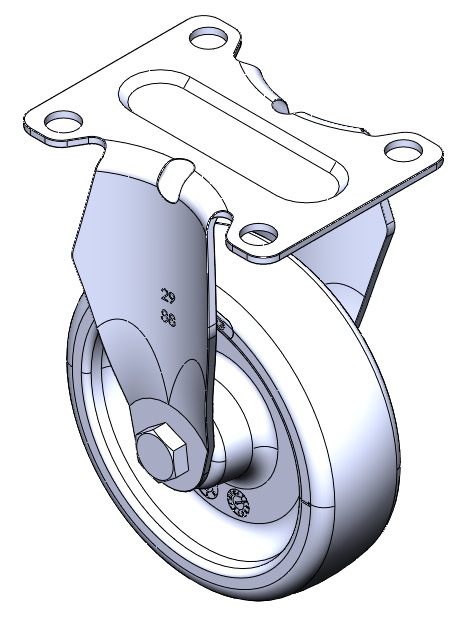

Rigid Caster with Stamping Fabricated Caster Fork 72 x 53.5 mm (2-7/8" x 2-1/8") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Polypropylene Wheel Center and Wheel Tread.
Black, Plain Bearing.
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

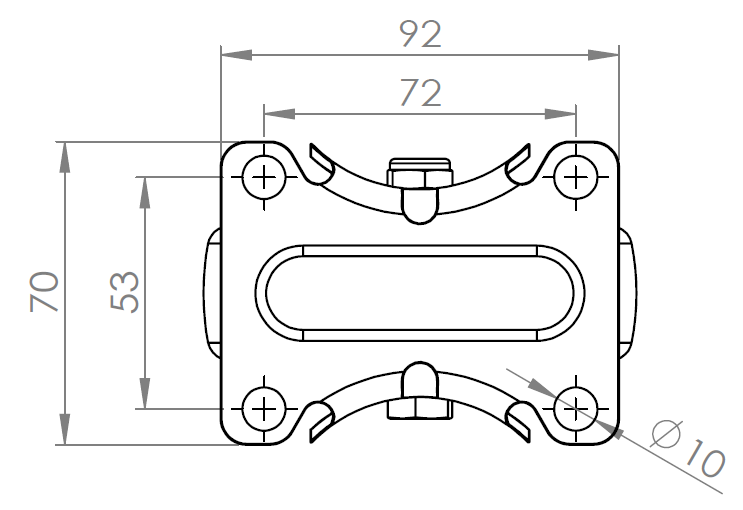

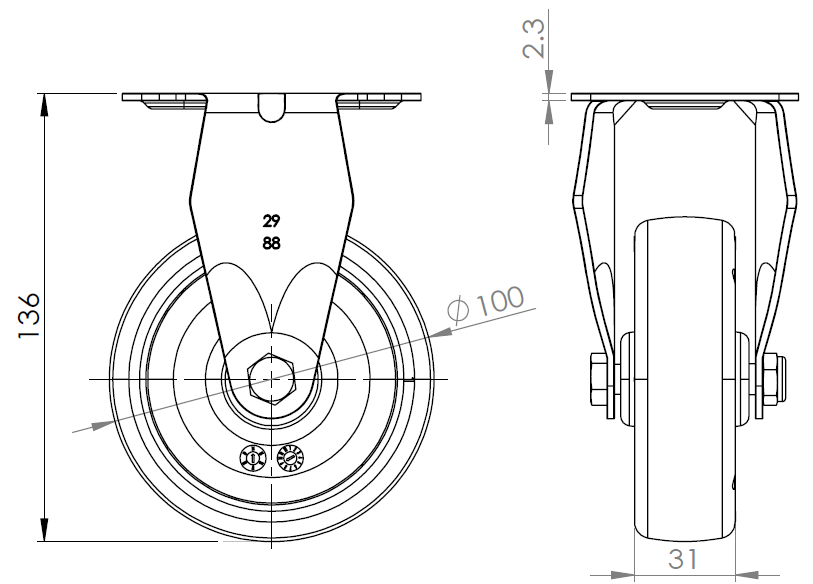

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Overall Height 136mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 135kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.45kgs　
　　Standard ISO22883
　　
　　
