    Product Data Sheet
1129 Medical Caster Series
　　Resolute Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903004040 　　　
　　　　　 　　　
Casters with Total Brakes and With locking system. Threaded Stem Riveted Pressed Fork—5/8-11.
Zine-Plated, Mounting Type - Threaded Stem.
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Dark gray, Bearing—Ball Bearings.
　　Wheel surface: Thermoplastic rubber elastomer (TPR
　　Wheel Center: Made of high-quality impact-resistant polypropylene

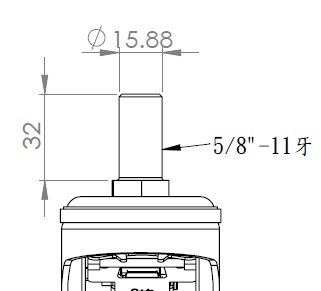

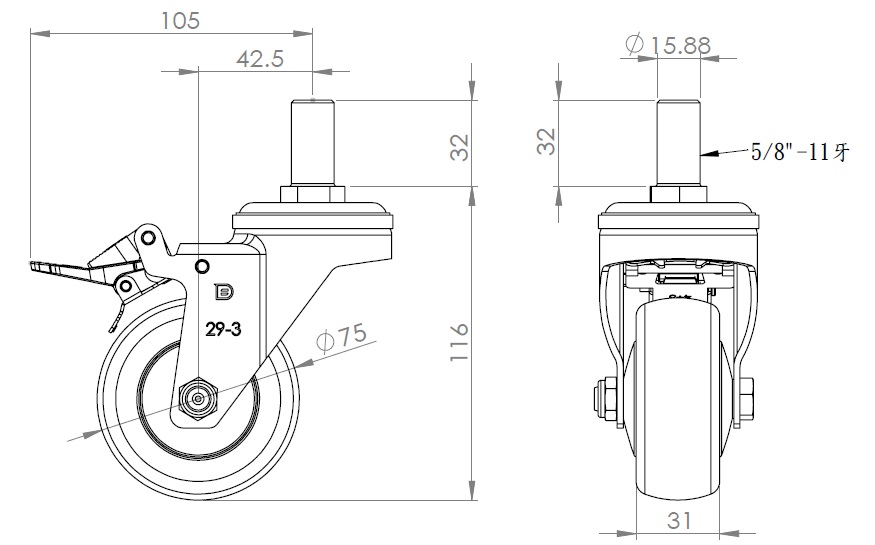

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 5/8＂-11牙
　　Threaded Length 32mm
　　Offset 42.5mm　
　　Swivel Interference 210mm　
　　Overall Height 116mm　
　　Swivel Radius 105mm　
　　Hardness Of Tread 72±5A° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.6kgs　
　　Standard ISO22883
　　
　　
