    Product Data Sheet
1129 Medical Caster Series
　　W Resolute Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903004056 　　　
　　　　　 　　　

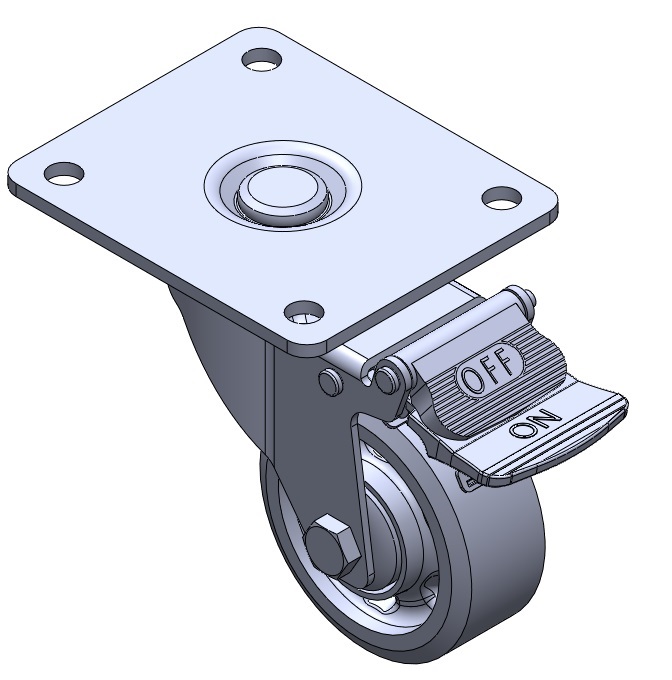

Casters with Total Brakes and a With locking system. Top Plate with Riveted, Stamping, round hole. Electroplated finish, Top Plate (4T) Mounting Type system. Reinforced, impact-resistant polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Dark gray, Bearing with Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: high-quality impact-resistant polypropylene

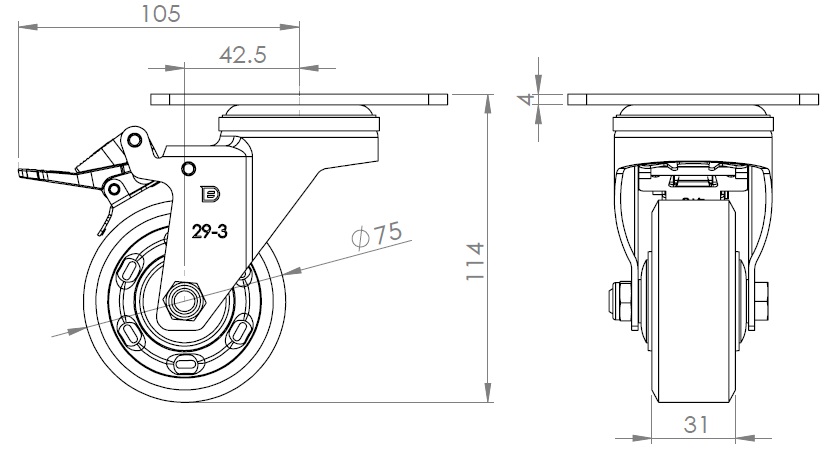

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

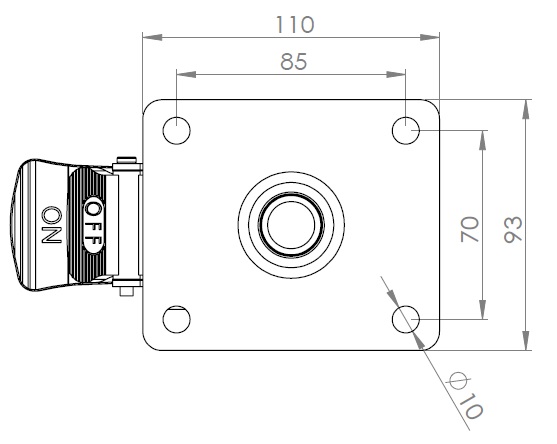

　　Plate Size 110 x 93mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 10mm　
　　Offset 42.5mm　
　　Swivel Interference 210mm　
　　Overall Height 114mm　
　　Swivel Radius 105mm　
　　Hardness Of Tread 72±5A° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.86kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1129 Medical Caster Series
W Resolute Wheel Diameter × Wheel Width 75 x 31mm
TW-4112903004055
75 mm 90 Kgs 114 mm

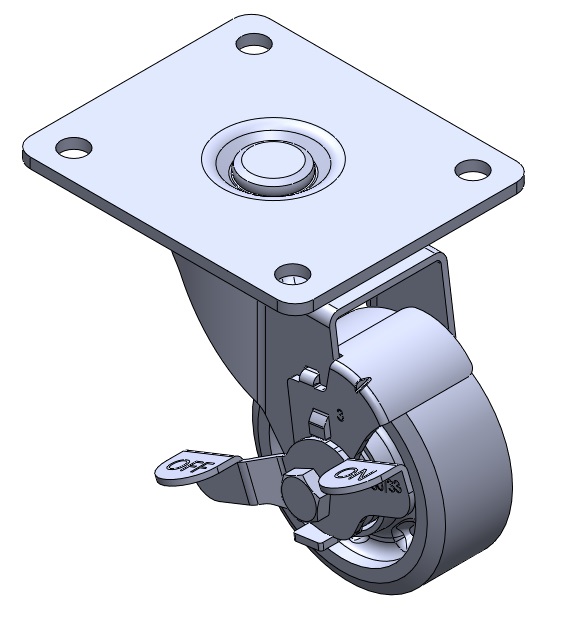

Casters with Side Brakes and With locking system. Top Plate with Riveted, Stamping, round hole. Electroplated finish, Top Plate (4T) Mounting Type system. Reinforced, impact-resistant polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Dark gray, Bearing with Ball Bearings.
1129 Medical Caster Series
W Resolute Wheel Diameter × Wheel Width 75 x 31mm
TW-4112903002028
75 mm 90 Kgs 114 mm

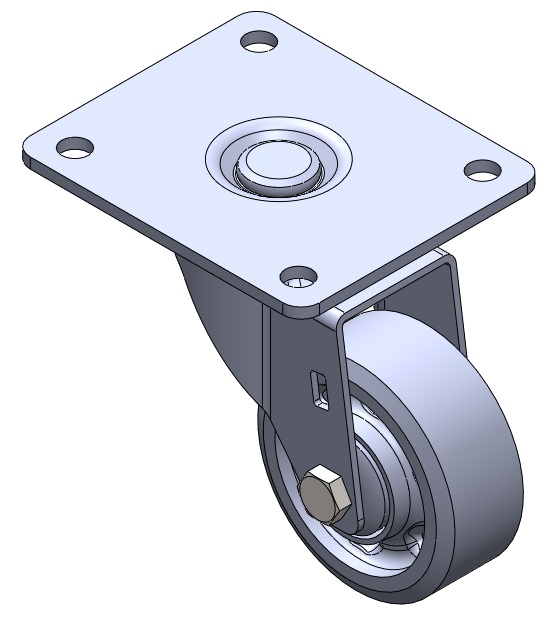

Swivel Caster with Riveted Fork and Stamping Fork - round hole Zine-Plated, Top Plateed (4T) Mounting Type system Reinforced, impact-resistant polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Dark gray, Ball Bearings.
