    Product Data Sheet
1129 Medical Caster Series
　　W Resolute Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903004063 　　　
　　　　　 　　　

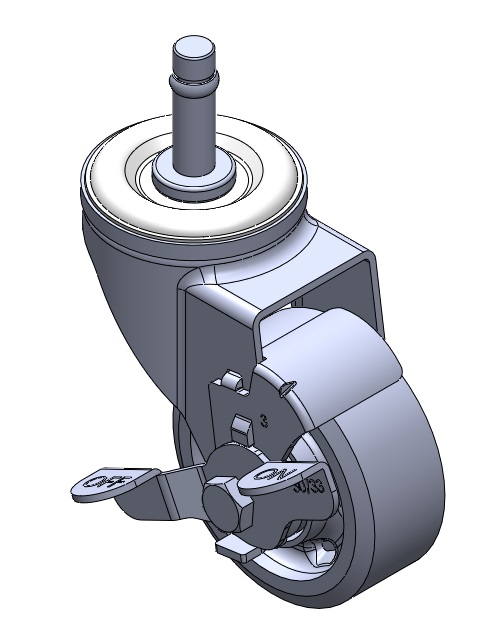

Casters with Side Brakes and With locking system. Stamping, Riveted Fork – Ø11x38L Electroplated finish, Mounting Type - Cylindrical Stem, brass buckle included Reinforced, impact-resistant polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Dark gray, Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: high-quality impact-resistant polypropylene

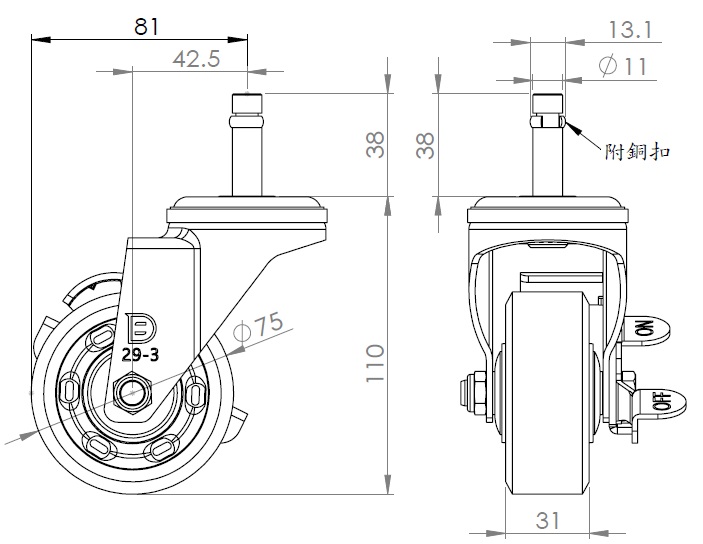

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 11mm　
　　Stem Length 38mm　
　　Offset 42.5mm　
　　Swivel Interference 162mm　
　　Overall Height 110mm　
　　Swivel Radius 81mm　
　　Hardness Of Tread 72±5A° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.60kgs　
　　Standard ISO22883
　　
　　
