    Product Data Sheet

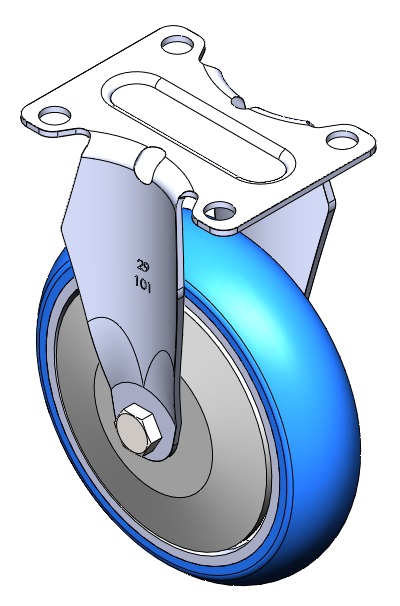

1129 Medical Caster Series
　　AQPU (blue) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　TW-4112905001020 　　　
　　　　　 　　　
Rigid Caster with integrally molded Stamping footrest and 72 x 53.5 mm (2-7/8" x 2-1/8") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate, and plastic cover. Aluminum core with High Quality Polyurethane Wheel Tread. Blue color. Bearings: Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel: Iron core/cast iron core

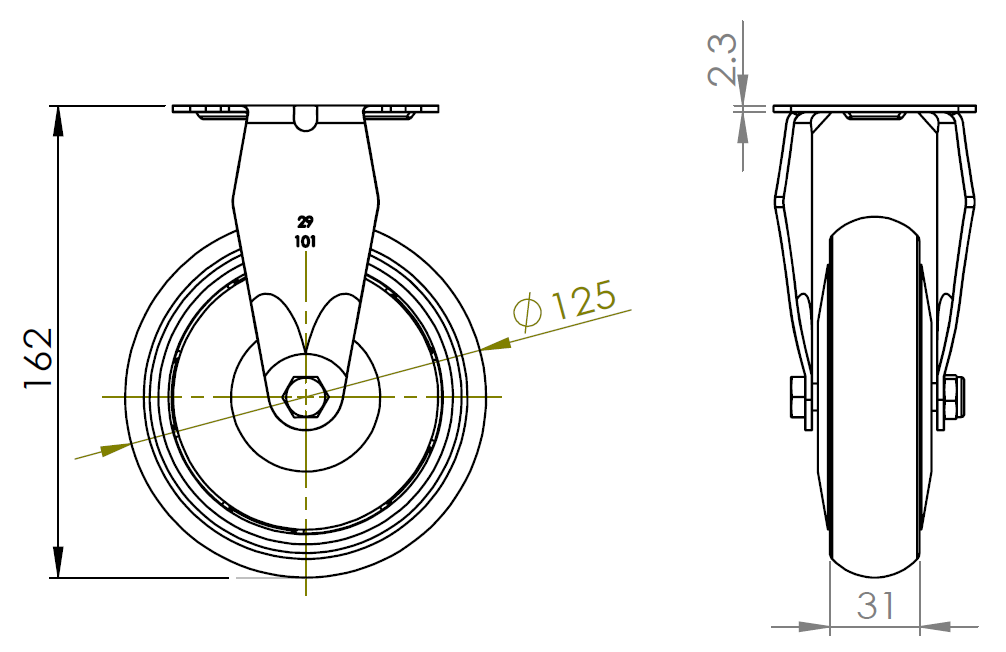

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

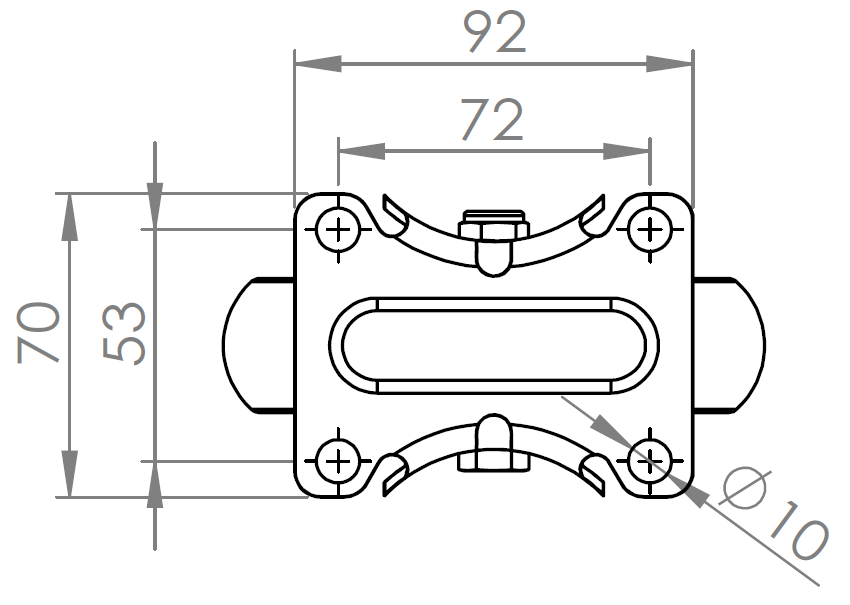

　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Overall Height 162mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.50kgs　
　　Standard ISO22883
　　
　　
