    Product Data Sheet
1129 Medical Caster Series
　　PPR Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903004085 　　　
　　　　　 　　　

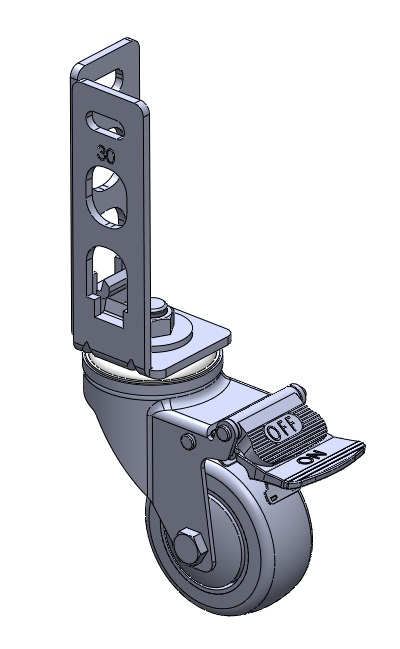

Casters with Total Brakes and a With locking system. Zine-Plated, angle iron Mounting Type - Top Plate High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: high-quality impact-resistant polypropylene

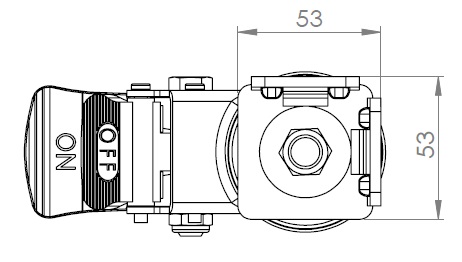

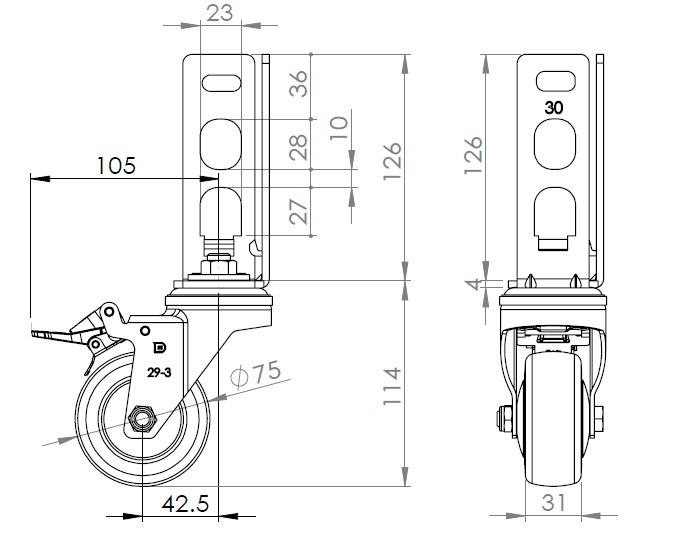

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Angle Bar Plate Size 53 x 53mm　
　　Angle Bar Plate Specification 10mm　
　　Angle Bar Plate Hole 27 x 23mm　
　　Offset 42.5mm　
　　Swivel Interference 210mm　
　　Overall Height 114mm　
　　Swivel Radius 105mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.90kgs　
　　Standard ISO22883
　　
　　
