Zine-Plated, Mounting Type - Threaded Stem.
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Dark gray, Bearing—Ball Bearings.
Wheel Center: high-quality impact-resistant polypropylene

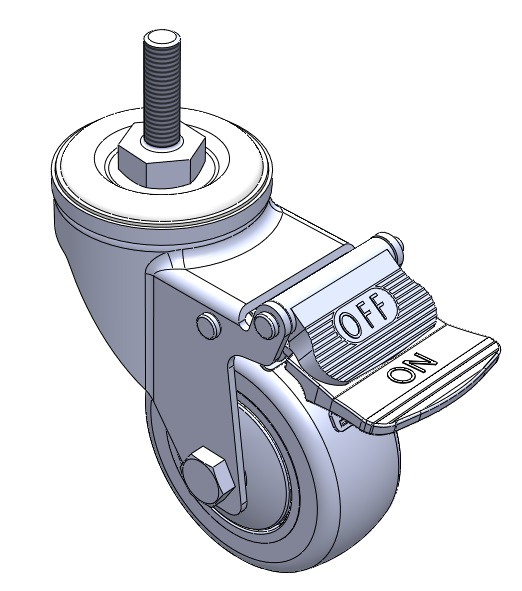

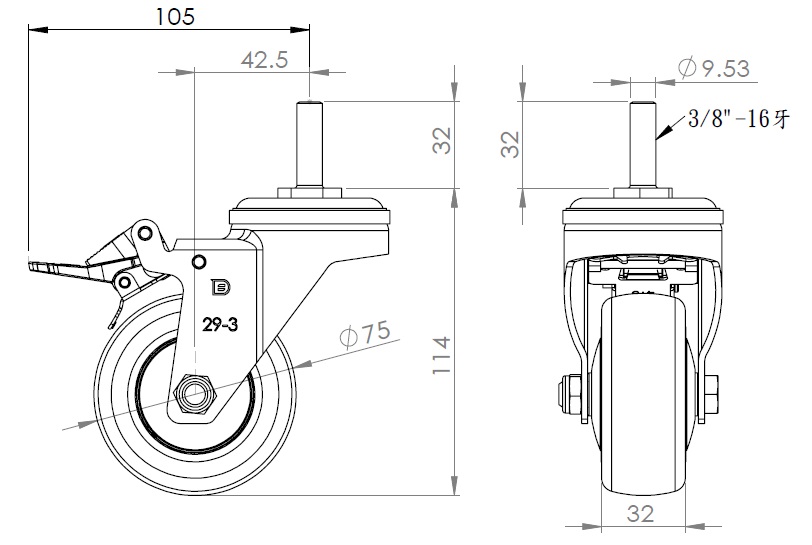

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings

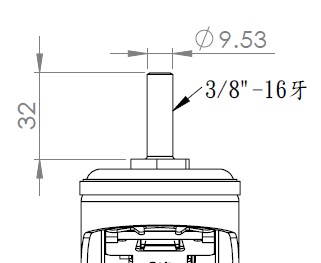

Threaded Stem
Offset
42.5mm
Swivel Interference
210mm
Overall Height
114mm
Swivel Radius
105mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
70kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
105kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
Y 導電值:10^4~10^6
Anti-Static
N/A
Weight
0.60kgs
Standard
ISO22883
