Zine-Plated, Mounting Type - Threaded Stem.
Aluminum wheel center, High Quality Polyurethane Wheel Tread.
Blue color, Bearing—Ball Bearings.
Wheel Center: aluminum core

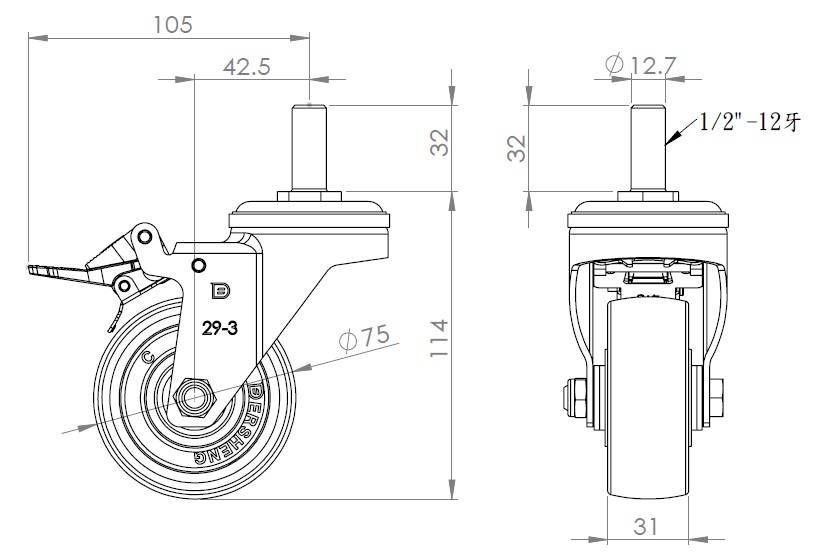

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings

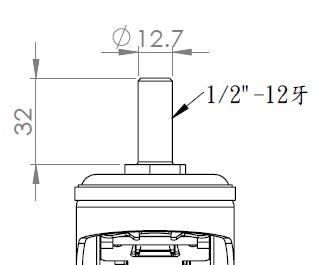

Threaded Stem
1/2＂-12 牙
Threaded Length
32mm
Offset
42.5mm
Swivel Interference
210mm
Overall Height
114mm
Swivel Radius
105mm
Hardness Of Tread
87±5° Shore A
Load Capacity (Dynamic)
160kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
240kgs
Temperature
-30°C to +70°C

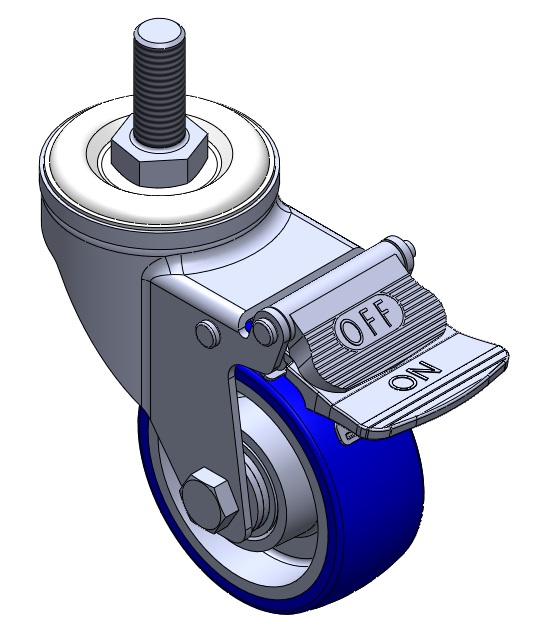

Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.60kgs
Standard
ISO22883
