    Product Data Sheet
1129 Medical Caster Series
　　PPR Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904004005 　　　
　　　　　 　　　
Casters with Side Brakes and With locking system. Riveted Stamping Top Plate - instrument Fork. Hole
Zine-Plated, Mounting Type - Top Plate.
High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Dark gray, Plain Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: high-quality impact-resistant polypropylene

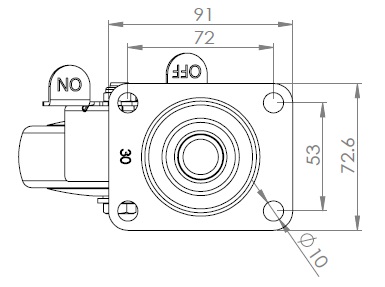

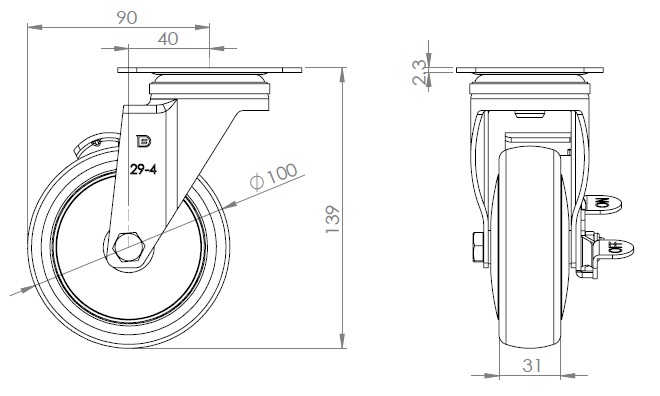

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 91 x 72.6mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Offset 40mm　
　　Swivel Interference 180mm　
　　Overall Height 139mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.70kgs　
　　Standard ISO22883
　　
　　
