    Product Data Sheet

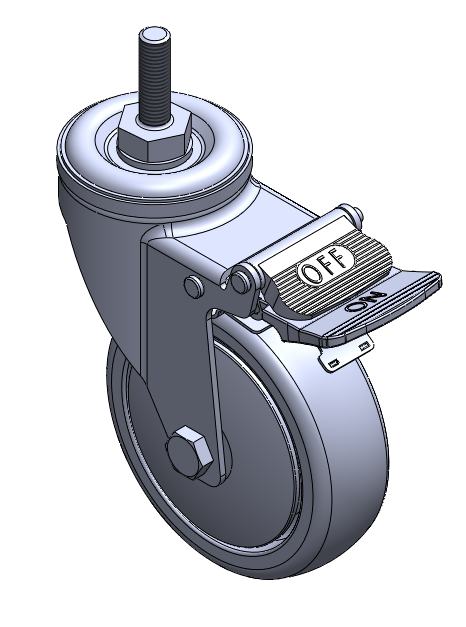

1129 Medical Caster Series
　　PPR Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904004030 　　　
　　　　　 　　　
Total Brake locking system. Threaded Stem Riveted Pressed Fork - 3/8-16"
Zine-Plated, Mounting Type - Threaded Stem
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Plain Bearing
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

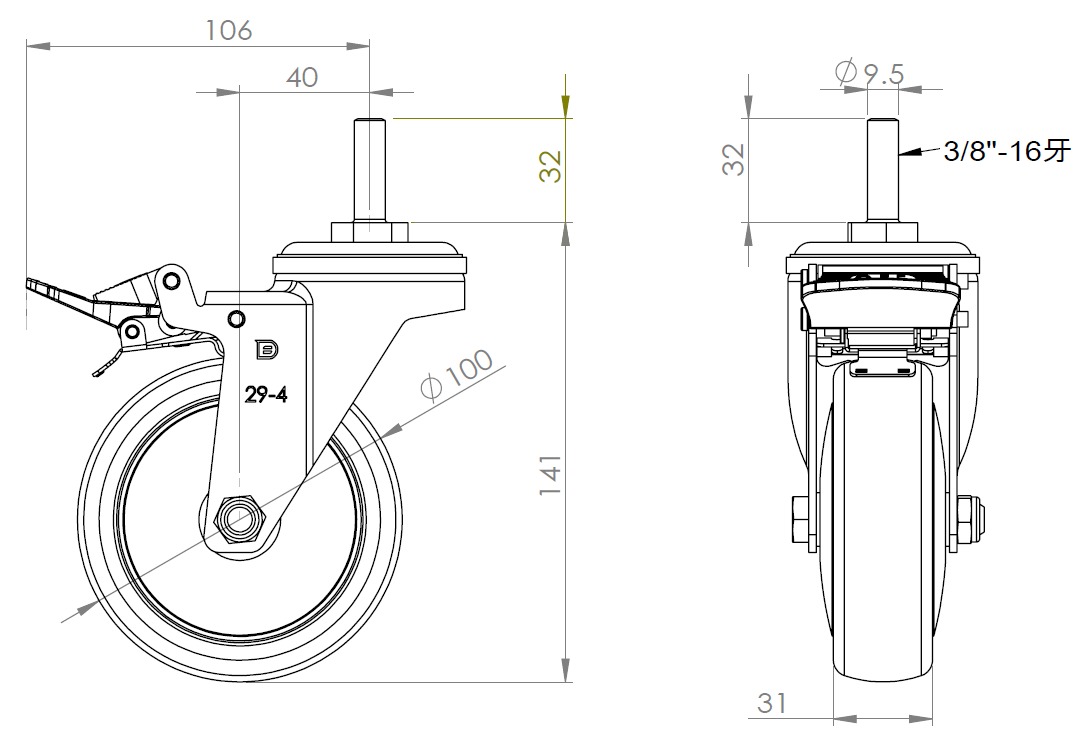

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing

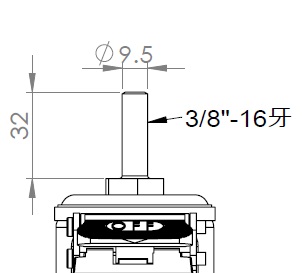

　　Threaded Stem 3/8＂-16 牙
　　Threaded Length 32mm
　　Offset 40mm　
　　Swivel Interference 212mm　
　　Overall Height 141mm　
　　Swivel Radius 106mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.65kgs　
　　Standard ISO22883
　　
　　
