    Product Data Sheet
1129 Medical Caster Series
　　PPR Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903002013 　　　
　　　　　 　　　
Swivel Caster, Riveted Stamping Fork - 1/2-12 threads
Zine-Plated, Mounting Type - Threaded Stem
High-Quality Impact-Resistant Polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing - Ball Bearing
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

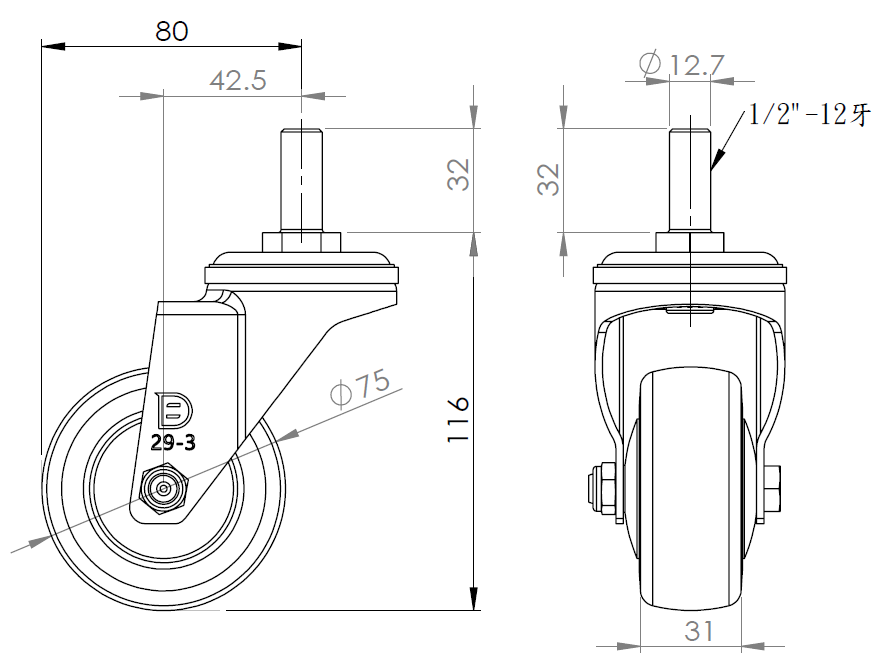

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 1/2＂-12牙
　　Threaded Size 32mm
　　Offset 42.5mm　
　　Swivel Interference 160mm　
　　Overall Height 116mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.50kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com


　　　　　　　　　　　　關　　聯　　產　　品



  1129 Medical Caster Series
   PPR Wheel Diameter × Wheel Width 75 x 31mm

   TW-4112903004025


         75 mm         70 Kgs         116 mm

Casters with Side Brakes and With locking system. Threaded Stem Riveted Pressed Fork – 1/2-12 threads.
Zine-Plated, Mounting Type - Threaded Stem.
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Dark gray, Bearing – Ball Bearings.




  1129 Medical Caster Series
   PPR Wheel Diameter × Wheel Width 75 x 31mm

   TW-4112903004026


         75 mm         70 Kgs         116 mm

Casters with Total Brakes and With locking system. Threaded Stem Riveted Pressed Fork—1/2-12"
Zine-Plated, Mounting Type - Threaded Stem
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
