    Product Data Sheet
1129 Medical Caster Series
　　Resolute Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903002039 　　　
　　　　　 　　　
Swivel Caster with Riveted Fork and Stamping bracket – angled hole
Zine-Plated, Top Plate (3T) Mounting Type
High-Quality Impact-Resistant Polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing – Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

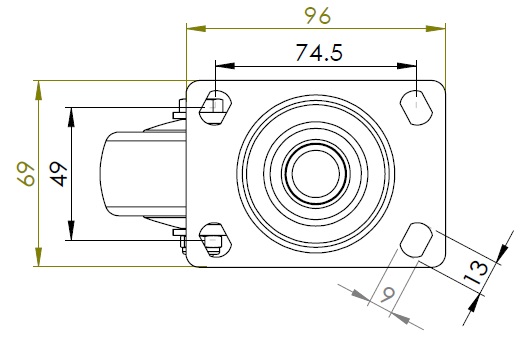

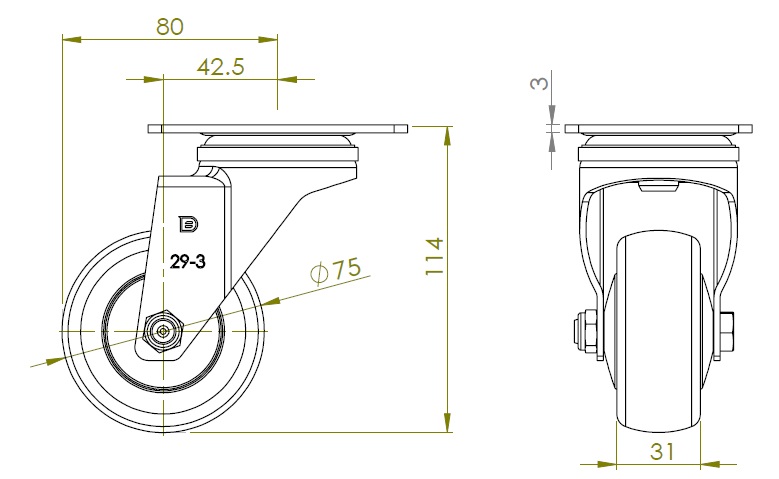

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 74.5 x 49mm　
　　Plate Hole 13 x 9mm　
　　Offset 42.5mm　
　　Swivel Interference 160mm　
　　Overall Height 114mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.60kgs　
　　Standard ISO22883
　　
　　
