Zine-Plated, Top Plate (3T) Mounting Type system.
Reinforced thermoplastic plastic Wheel Center.
Bearings—Ball Bearings.
Wheel Center: Thermoplastic plastic (PA6)

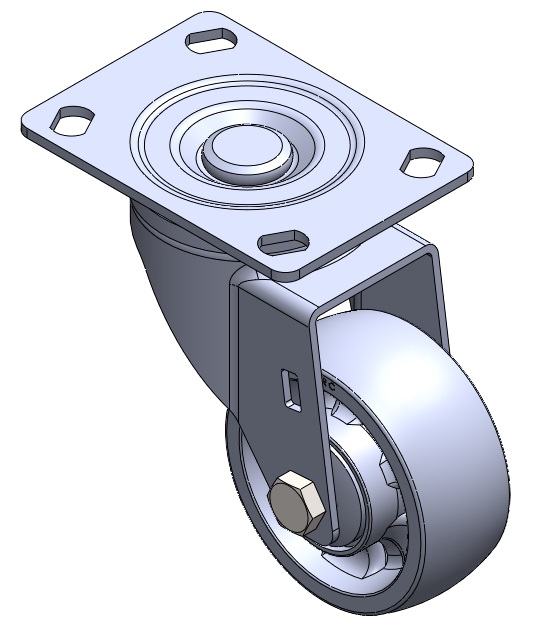

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
96 x 69mm
Bolt Hole Spacing
74.5 x 49mm
Plate Hole
13 x 9mm
Offset
42.5mm
Swivel Interference
160mm
Overall Height
114mm
Swivel Radius
80mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
120kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
180kgs
Temperature
-20°C to +80°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.60kgs
Standard
ISO22883
