Zine-Plated, Mounting Type - Threaded Stem
High-Quality Impact-Resistant Polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing - Ball Bearing
Wheel Center: Made of high-quality impact-resistant polypropylene

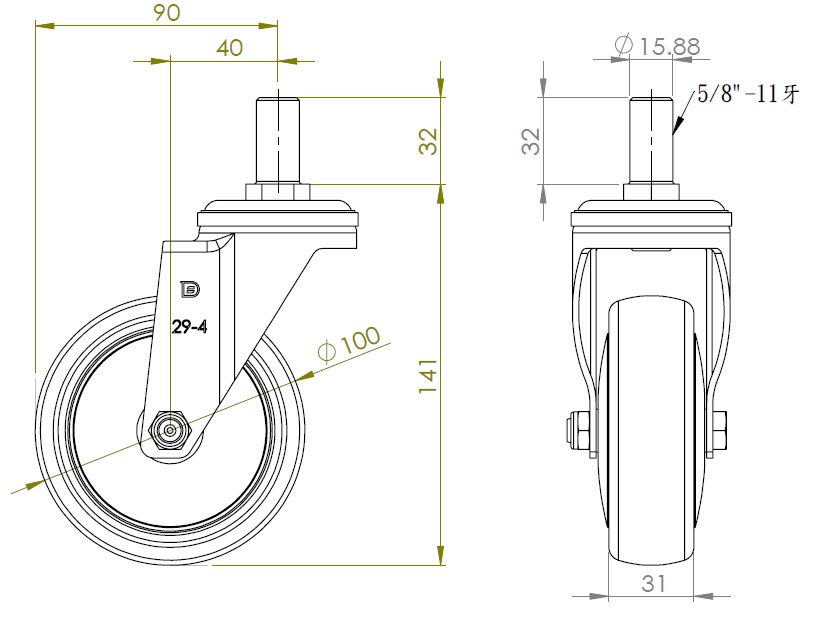

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
5/8＂-11牙
Threaded Length
32mm
Offset
40mm
Swivel Interference
180mm
Overall Height
141mm
Swivel Radius
90mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
125kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
187.5kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.55kgs
Standard
ISO22883
