	Product Data Sheet
	1129 Medical Caster Series
	W Resolute Wheel Diameter × Wheel Width 100 x 31mm
	EAN
	TW-4112904002023

	Swivel Caster, Riveted Stamping Fork - 5/8-11 threads Zine-Plated, Mounting Type - Threaded Stem Reinforced impact-resistant polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Dark gray, Bearing - Ball Bearing

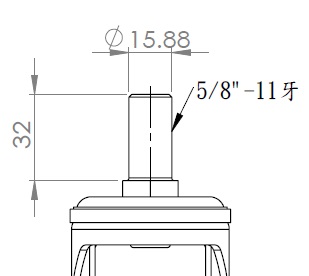

	Wheel tread: Thermoplastic rubber elastomer (TPR) 　　Wheel Center: Made of high-quality impact-resistant polypropylene 　　Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter 100mm　　　Wheel Width 31mm
	Wheel Bearing Wheels With Ball Bearings 　　Threaded Stem 5/8＂-11牙　　Threaded Length 32mm 　　Offset 40mm　　　Swivel Interference 180mm　　　Overall Height 141mm　　　Swivel Radius 90mm　　　Hardness Of Tread 72±5° Shore A　　　Load Capacity (Dynamic) 125kgs	Rolling Resistance　　　 ● ● ● ● ● 　　Operating Noise　　　　 ● ● ● ● ● 　　Floor Surface Preservation ● ● ● ● ●
	Load Capacity (Static) 187.5kgs　　　Temperature -20°C to +60°C　　　Fork Type Swivel Caster
	Stainless N/A 　　Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 0.55kgs　　　Standard ISO22883
