    Product Data Sheet
1129 Medical Caster Series
　　W Resolute Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904002024 　　　
　　　　　 　　　
Swivel Caster, Riveted Stamping Fork - 3/8-16 threads
Zine-Plated, Mounting Type - Threaded Stem
Reinforced impact-resistant polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing - Ball Bearing
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

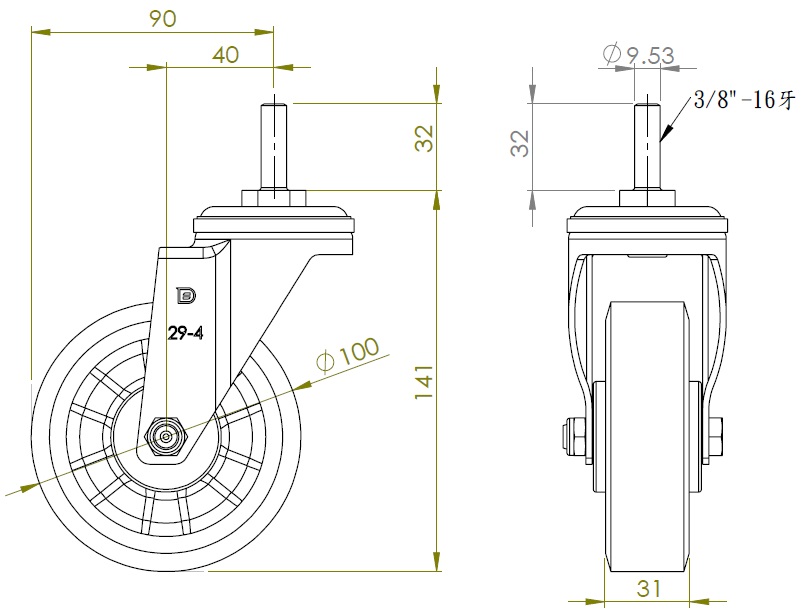

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 3/8＂-16牙
　　Threaded Length 32mm
　　Offset 40mm　
　　Swivel Interference 180mm　
　　Overall Height 141mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 125kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 187.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.55kgs　
　　Standard ISO22883
　　
　　
