    Product Data Sheet
1129 Medical Caster Series
　　PPR Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904002026 　　　
　　　　　 　　　

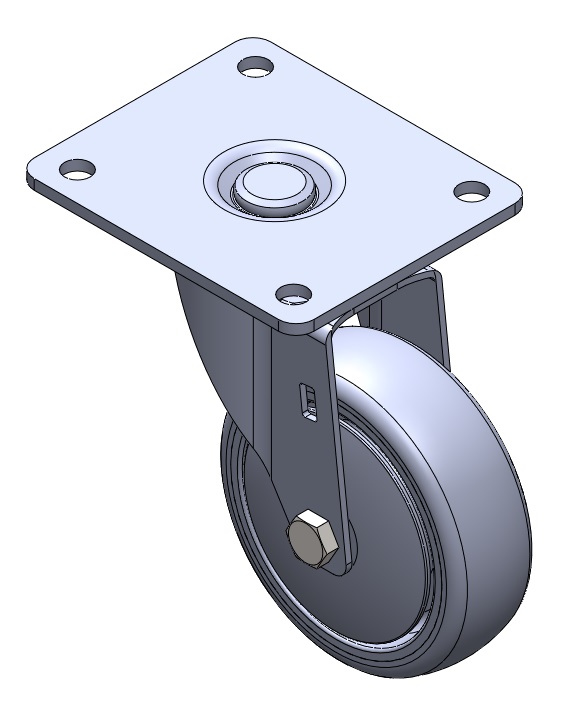

Swivel Caster with Riveted Fork and Stamping Fork - round hole Zine-Plated, Top Plate (4T) Mounting Type system High-Quality Impact-Resistant Polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Dark gray, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

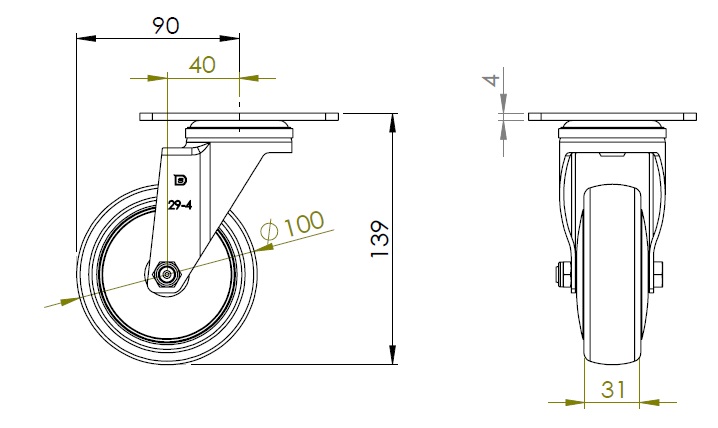

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

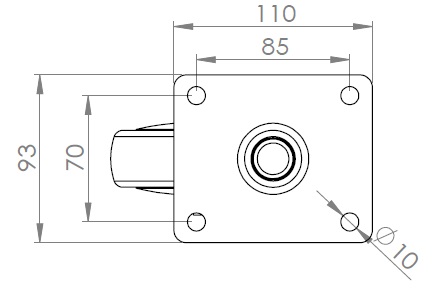

　　Plate Size 110 x 93mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 10mm　
　　Offset 40mm　
　　Swivel Interference 180mm　
　　Overall Height 139mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.85kgs　
　　Standard ISO22883
　　
　　
