Zine-Plated, Mounting Type - Top Plate.
Reinforced Polypropylene and Wheel Tread.
Bearing - Plain Bearing.
Wheel Center: Thermoplastic plastic (PA6)

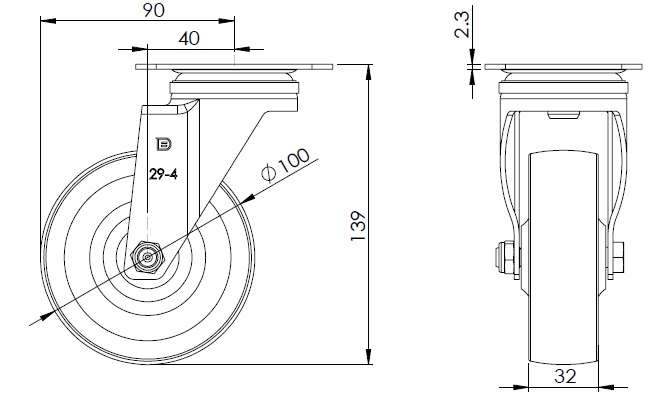

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
32mm
Wheel Bearing
Wheel With Plain Bearing

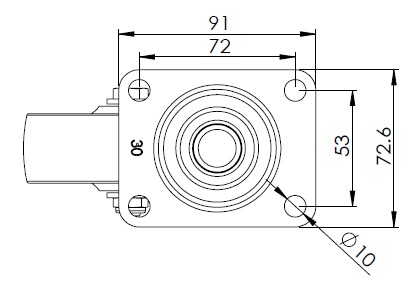

Plate Size
91 x 72.6mm
Bolt Hole Spacing
72 x 53mm
Plate Hole
10mm
Offset
40mm
Swivel Interference
180mm
Overall Height
139mm
Swivel Radius
90mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
120kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
180kgs
Temperature
-20°C to +80°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.65kgs
Standard
ISO22883
