Zine-Plated, Mounting Type - Top Plate.
Reinforced Polypropylene and Wheel Tread.
Bearing - Plain Bearing.
Wheel Center: Thermoplastic plastic (PA6)

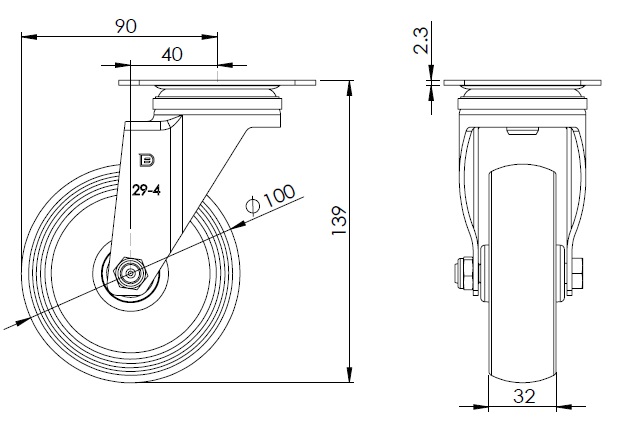

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter 100mm
Wheel Width 32mm

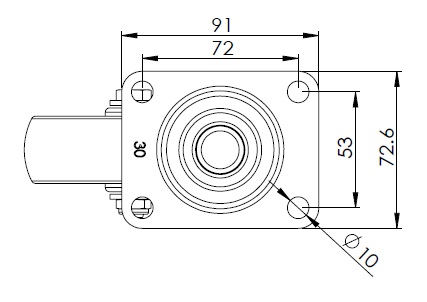

Plate Size 91 x 72.6mm
Bolt Hole Spacing 72 x 53mm
Plate Hole 10mm
Offset 40mm
Swivel Interference 180mm
Overall Height 139mm
Swivel Radius 90mm
Hardness Of Tread 75±5° Shore D
Load Capacity (Dynamic) 120kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Temperature -20°C to +80°C
Fork Type Swivel Caster
Electrical Conductivity N/A
Anti-Static N/A
Weight 0.65kgs
Standard ISO22883
