    Product Data Sheet
1129 Medical Caster Series
　　PPR (S) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4112904002053 　　　
　　　　　 　　　
Swivel Caster with Riveted Fork and Stamping Fork for 72 x 53.5 mm (2-7/8" x 2-1/8") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Dark gray, Plain Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

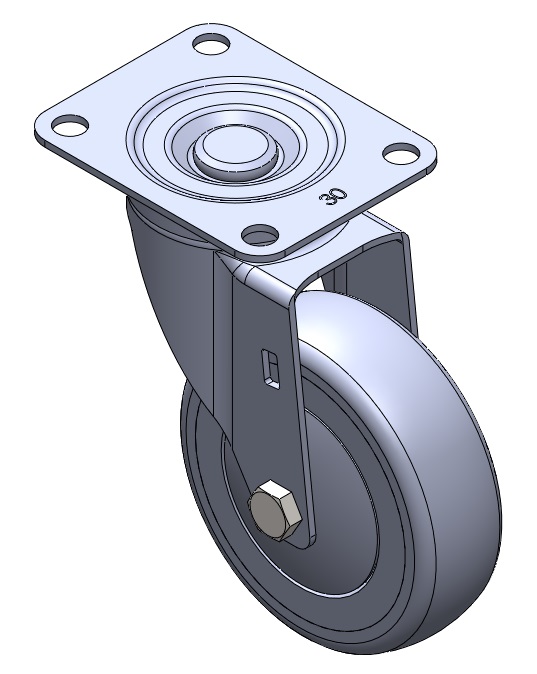

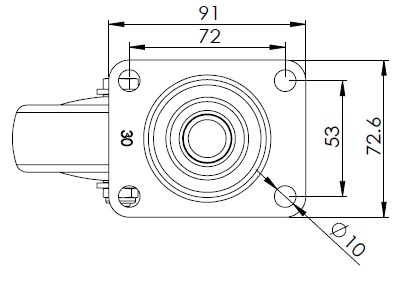

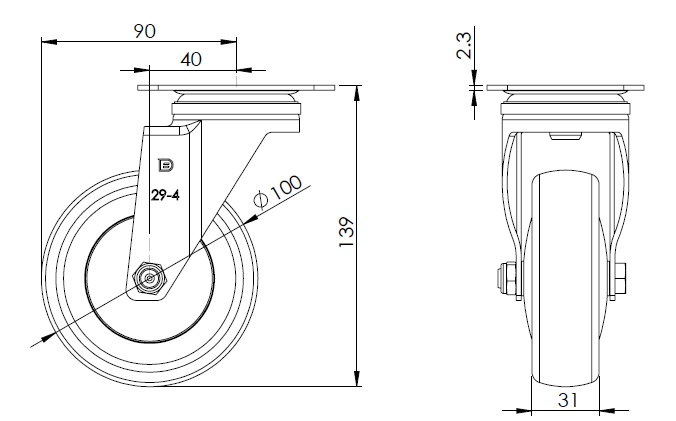

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 91 x 72.6mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Offset 40mm　
　　Swivel Interference 180mm　
　　Overall Height 139mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.65kgs　
　　Standard ISO22883
　　
　　
