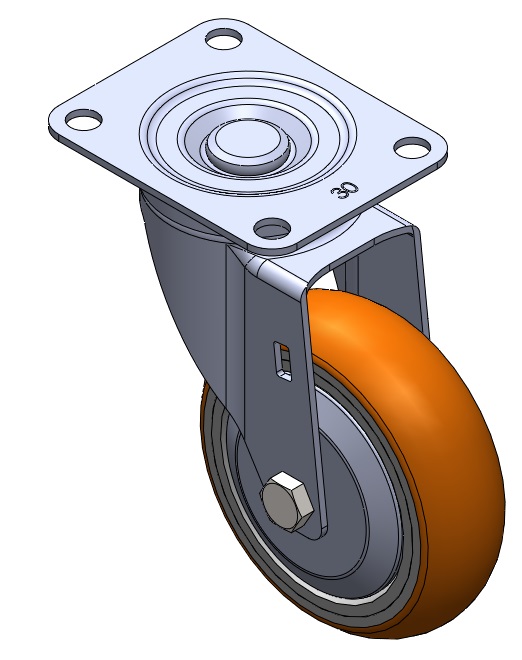

Zine-Plated, Mounting Type - Top Plate
Aluminum wheel center with High Quality Polyurethane Wheel Tread
Brown, Bearing—Ball Bearings.
Wheel Center: aluminum core

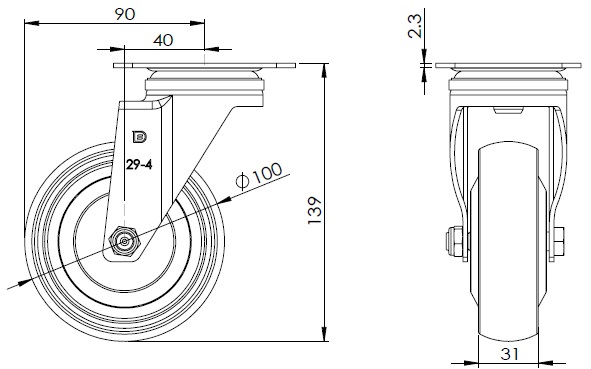

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings

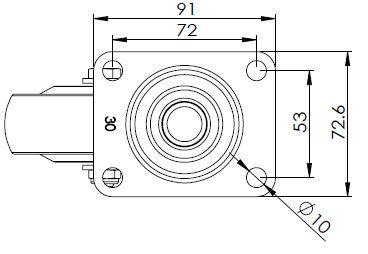

Plate Size
91 x 72.6mm
Bolt Hole Spacing
72 x 53mm
Plate Hole
10mm
Offset
40mm
Swivel Interference
180mm
Overall Height
139mm
Swivel Radius
90mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
230kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
345kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.65kgs
Standard
ISO22883
