    Product Data Sheet
1129 Medical Caster Series
　　Resolute (Pearlescent dark gray) Wheel Diameter x Wheel Width 75 x 27mm
　　EAN
　　　　　 　　　
　　YJ-11290300452013 　　　
Swivel castor, Top Plate Riveted Stamping Fork - medical hole Surface Zine-Plated, Mounting Type - Top Plate High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Pearl dark gray, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

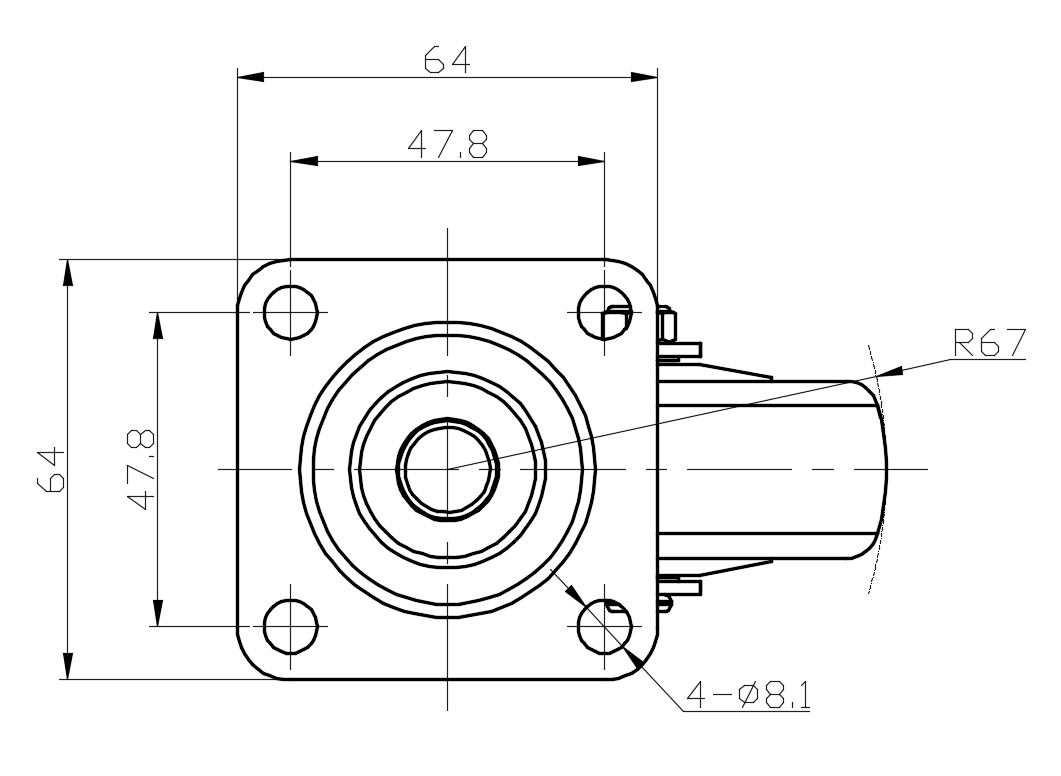

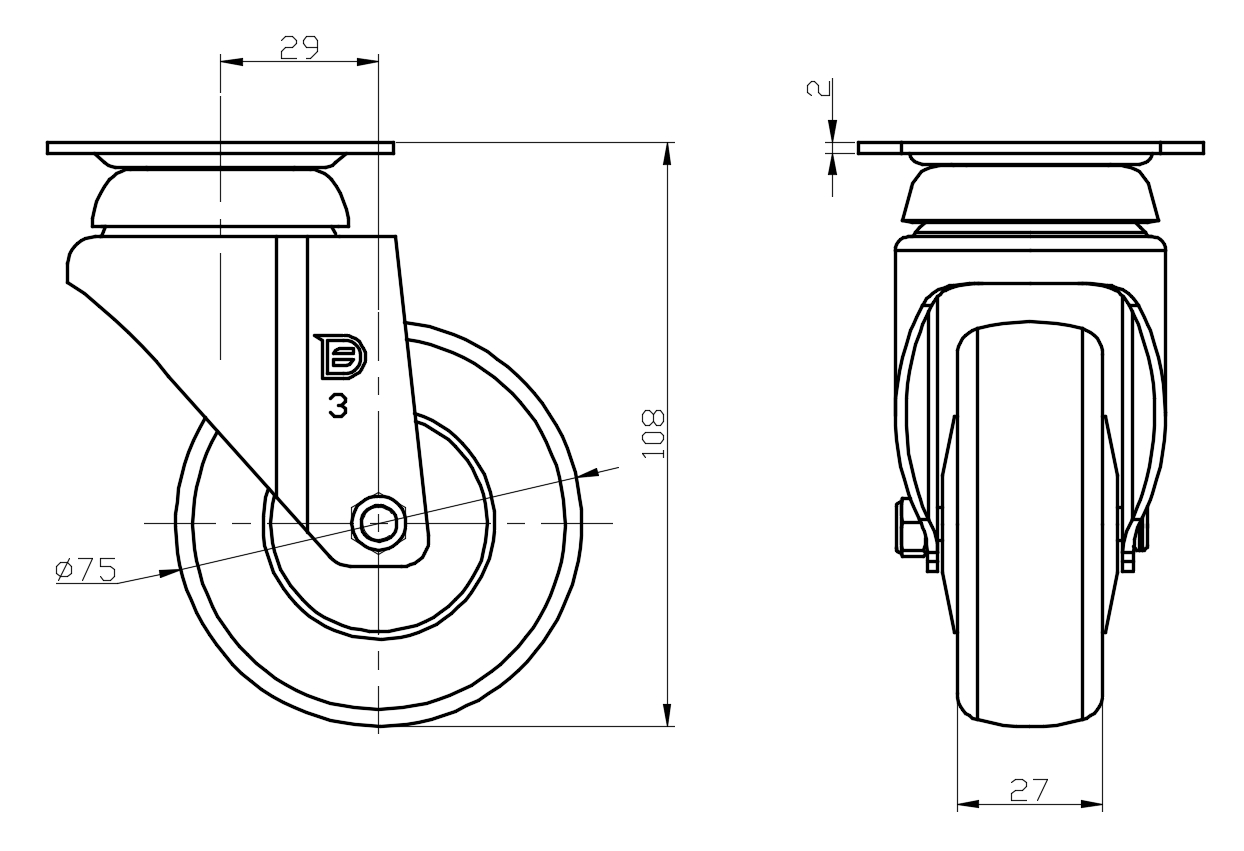

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 27mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 64 x 64mm　
　　Bolt Hole Spacing 47.8 x 47.8mm　
　　Plate Hole 8.1mm　
　　Offset 29mm　
　　Swivel Interference 134mm　
　　Overall Height 108mm　
　　Swivel Radius 67mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.39kgs　
　　Standard ISO22883
　　
　　
