1129 Medical Caster Series
　　Resolute (Pearlescent dark gray) Wheel Diameter x Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290400454013 　　　
Castors with Total Brake locking system. Riveted Stamping Fork - medical holes Surface Zine-Plated, Top Plate Mounting Type Impact resistant High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Pearl grey, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

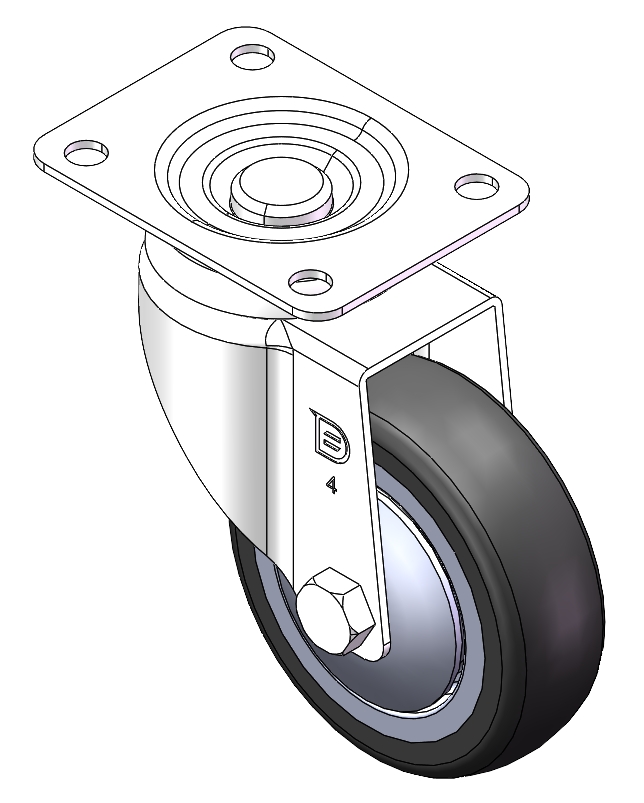

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 72.5mm　
　　Bolt Hole Spacing 72.2 x 53.5mm　
　　Plate Hole 10mm　
　　Offset 43.4mm　
　　Swivel Interference 220mm　
　　Overall Height 137mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 125kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 187.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.88kgs　
　　Standard ISO22883
　　
　　
