    Product Data Sheet

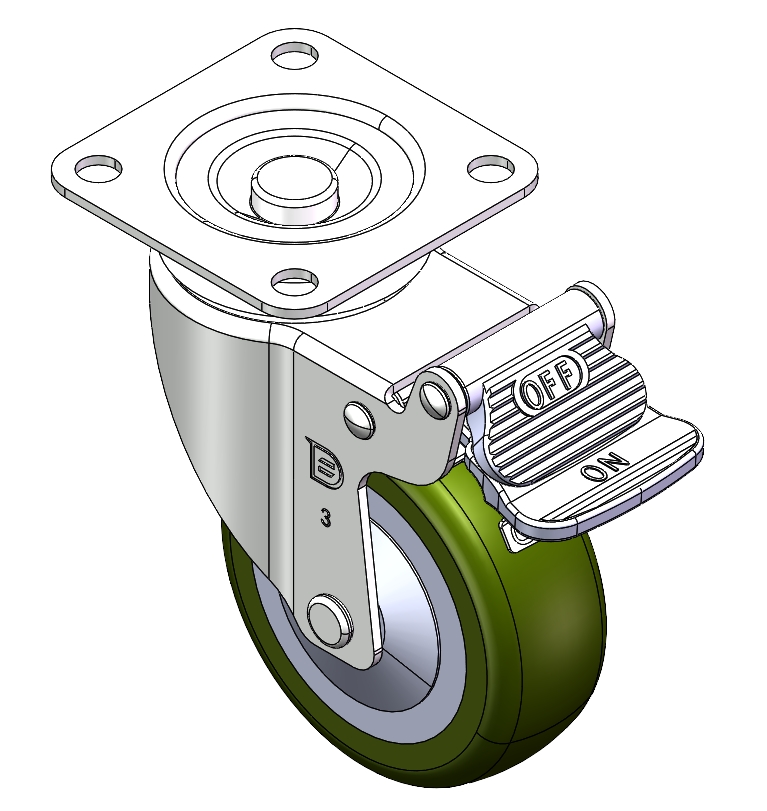

1129 Medical Caster Series
　　PPU (gray) Wheel Diameter × Wheel Width 75 x 27mm
　　EAN
　　　　　 　　　
　　YJ-11290300314113 　　　
Castors with Total Brake Locking system. Riveted Stamping Fork - medical holes Surface Zine-Plated, Fork Mounting Type High-quality Impact Resistance Polypropylene Wheel Center, High Quality Polyurethane Wheel Tread Grey, Bearing - Ball Bearings.
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: Made of high-quality impact-resistant polypropylene

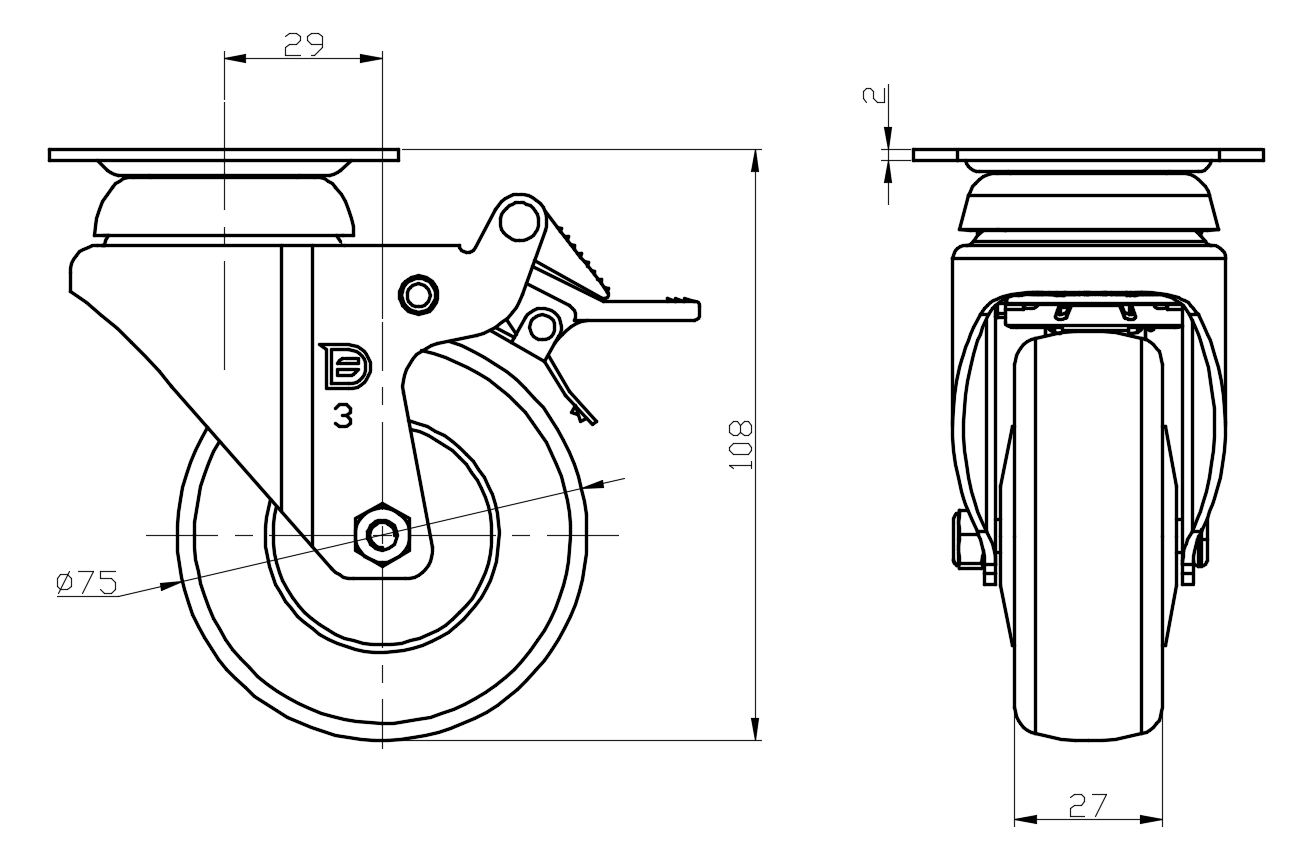

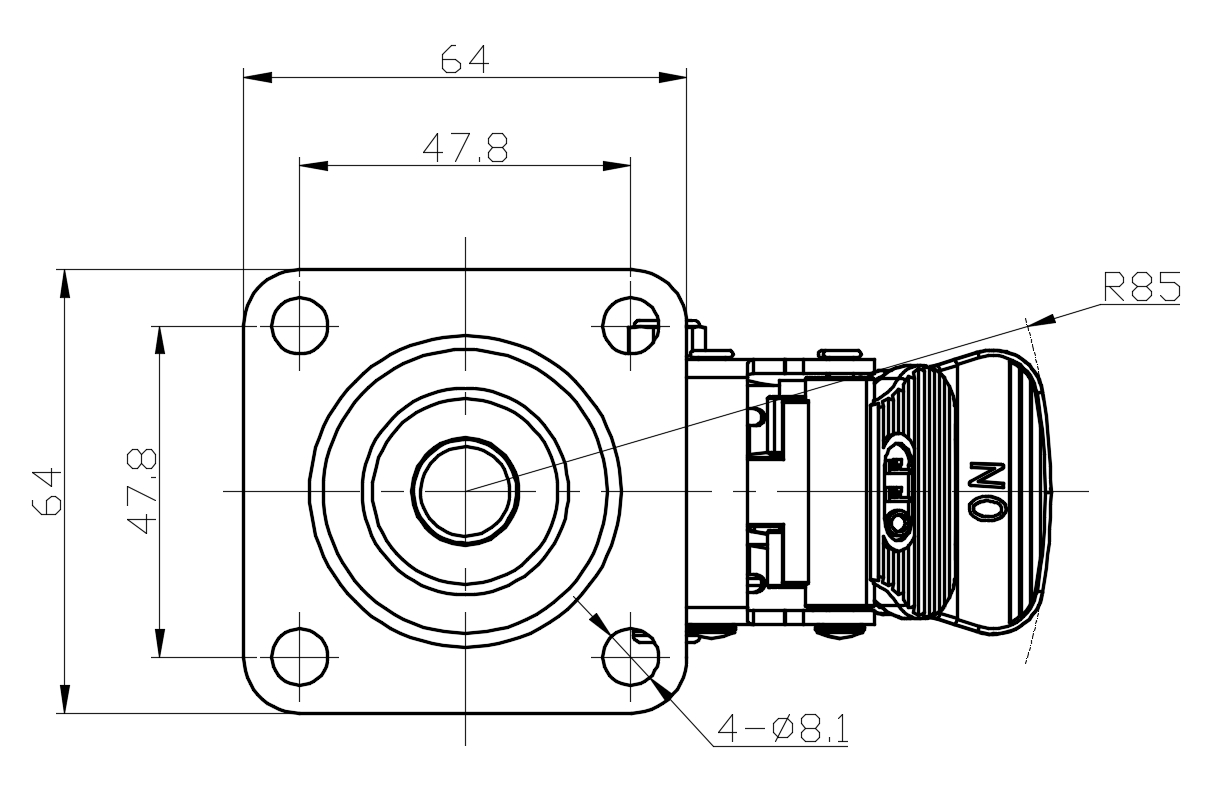

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 27mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 64 x 64mm　
　　Bolt Hole Spacing 47.8 x 47.8mm　
　　Plate Hole 8.1mm　
　　Offset 29mm　
　　Swivel Interference 170mm　
　　Overall Height 108mm　
　　Swivel Radius 85mm　
　　Hardness Of Tread 94±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.45kgs　
　　Standard ISO22883
　　
　　
