    Product Data Sheet

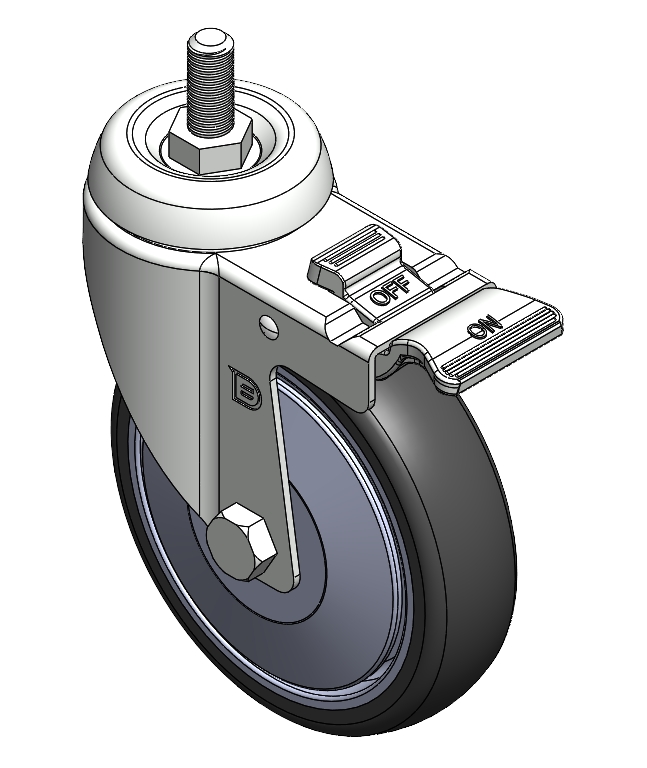

1129 Medical Caster Series
　　Resolute (Pearlescent dark gray) Wheel Diameter x Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290500456033 　　　
Casters with a Total Brake and With locking system. Threaded Stem Riveted Pressed Fork—1/2"-12"
Zine-Plated, Mounting Type - Threaded Stem
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Pearl-gray finish, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

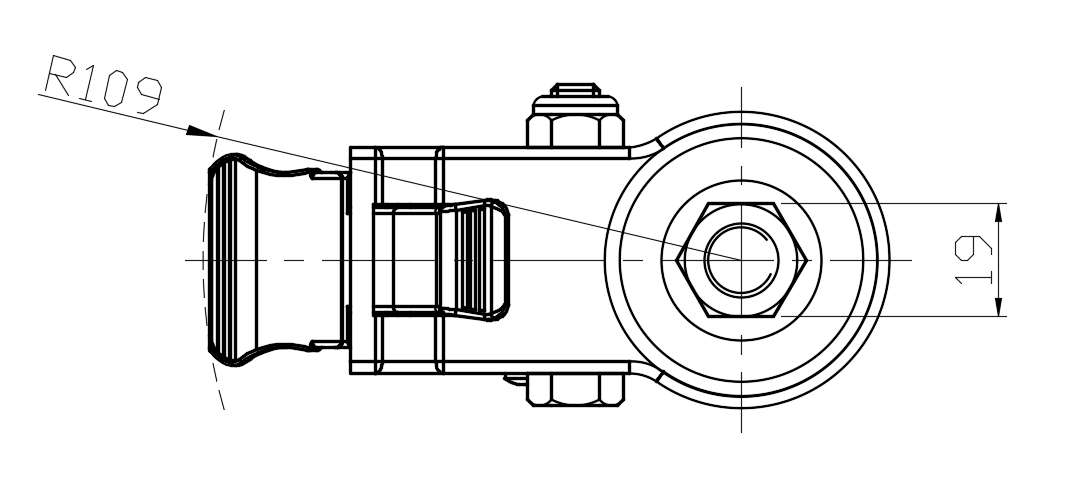

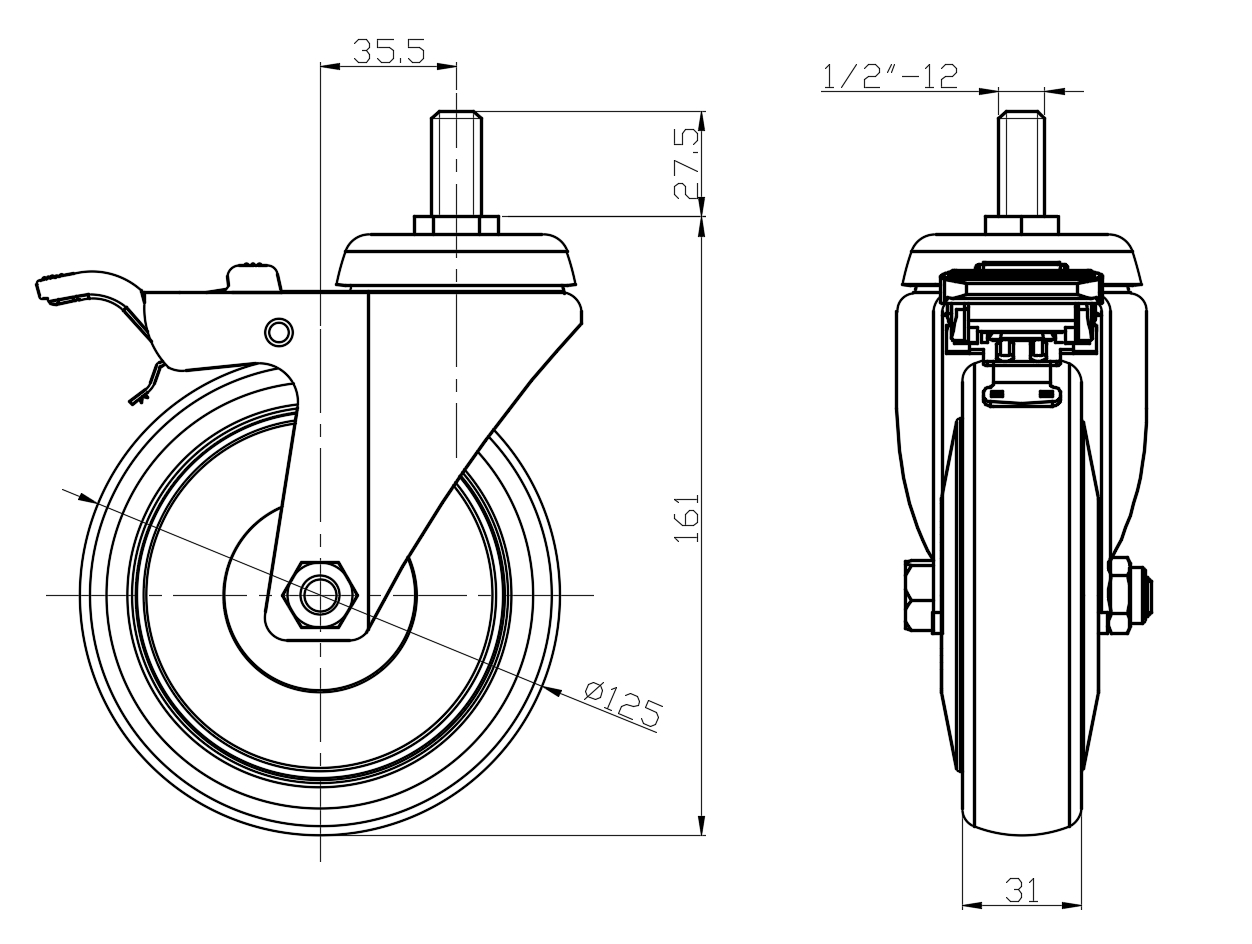

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 1/2＂-12
　　Threaded Length 27.5mm
　　Offset 35.5mm　
　　Swivel Interference 218mm　
　　Overall Height 161mm　
　　Swivel Radius 109mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 147kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 220.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.22kgs　
　　Standard ISO22883
　　
　　
