    Product Data Sheet

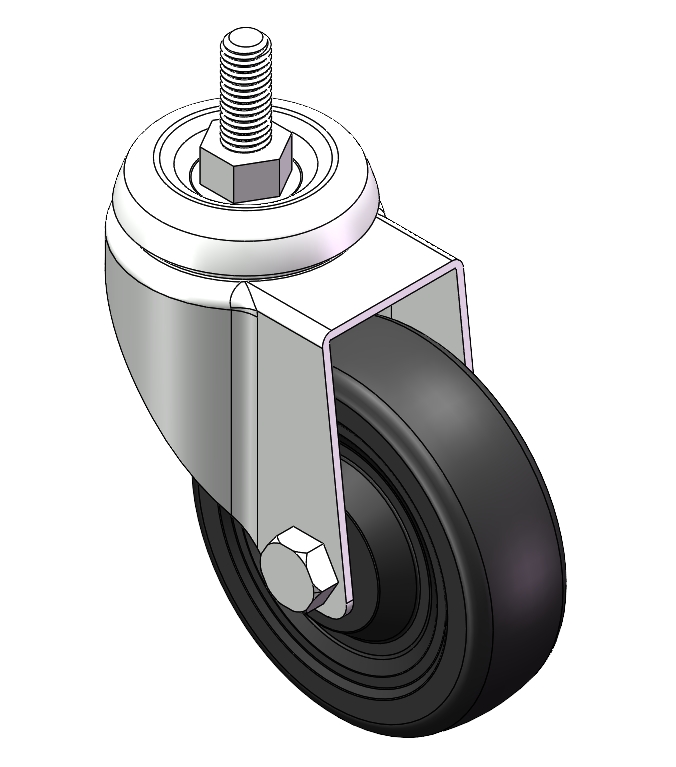

1129 Medical Caster Series
　　Rubber Wheel Diameter × Wheel Width 100 x 30.5mm
　　EAN
　　　　　 　　　
　　YJ-11290400065013 　　　
Swivel Caster, thread-Riveted Stamping Fork—M12-P1.75 Extended control lever surface, Mounting Type - Threaded Stem device Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheel—Anti-thread wheel cover
　　Wheel Tread: high quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

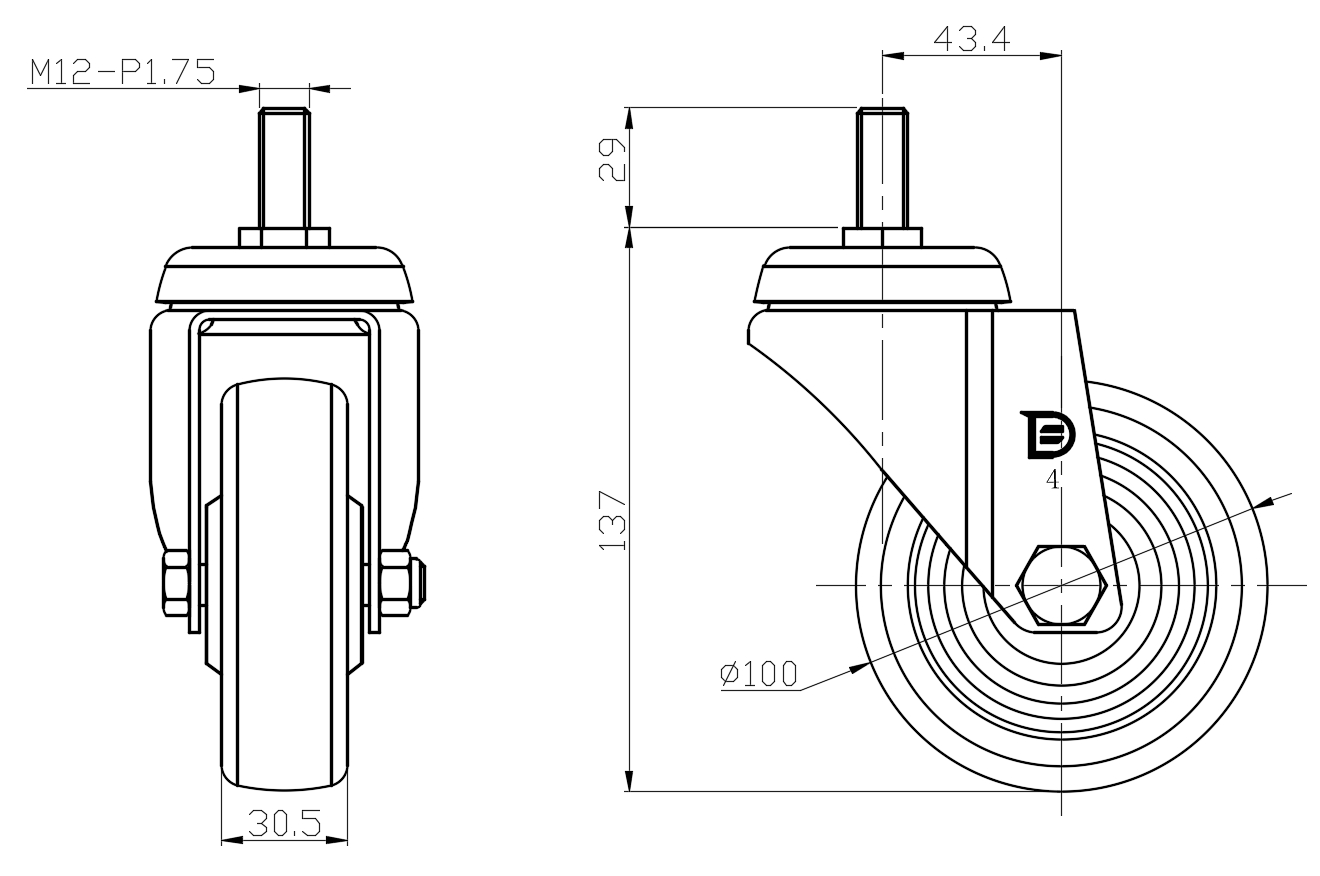

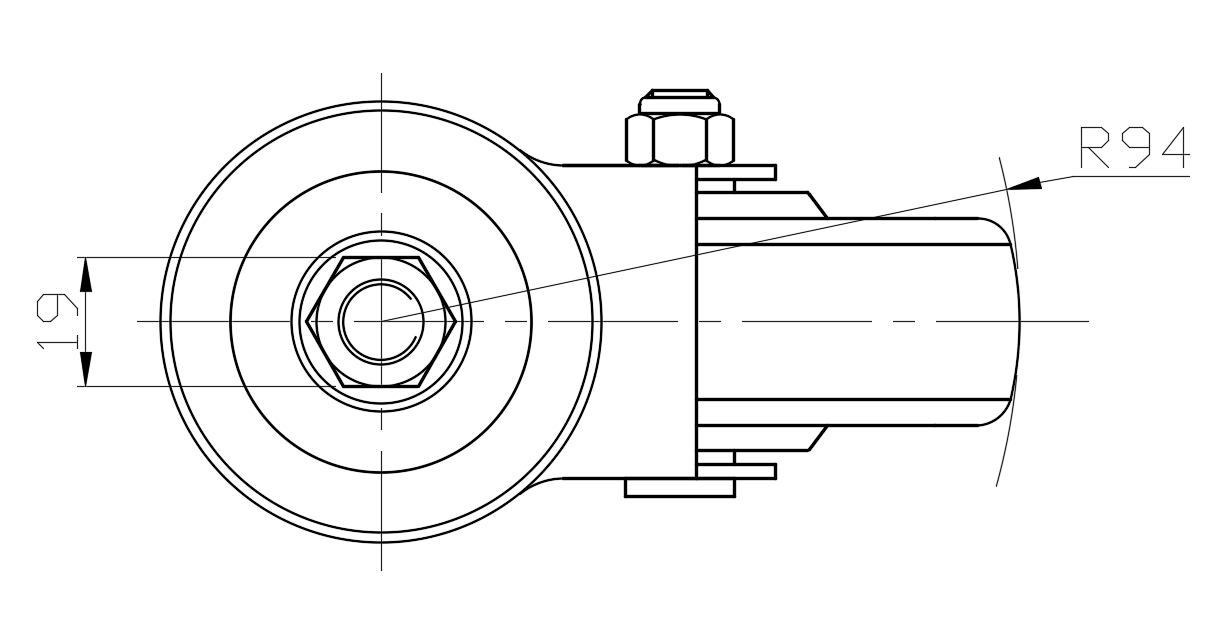

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 30.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem M12-P1.75
　　Threaded Length 29mm
　　Offset 43.4mm　
　　Swivel Interference 188mm　
　　Overall Height 137mm　
　　Swivel Radius 94mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.84kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1129 Medical Caster Series
Rubber Wheel Diameter × Wheel Width 100 x 30.5mm
YJ-11290400066033
100 mm 80 Kgs 137 mm

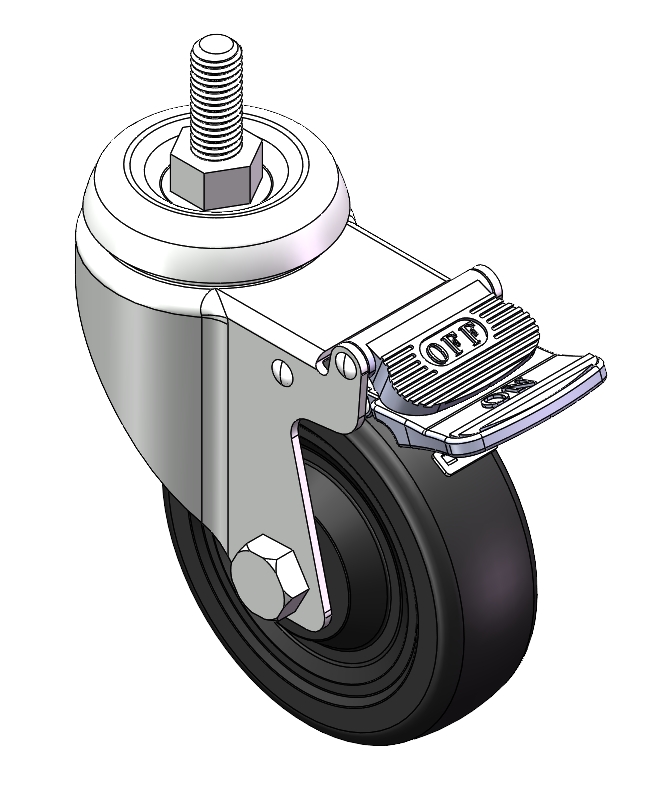

Side Brake Locking system. Threaded Riveted Stamping Fork - M12-P1.75 Extended control lever surface, Mounting Type - Threaded Stem device Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheels - Plain Bearing
1129 Medical Caster Series
Rubber Wheel Diameter × Wheel Width 100 x 30.5mm
YJ-11290400066013
100 mm 80 Kgs 137 mm

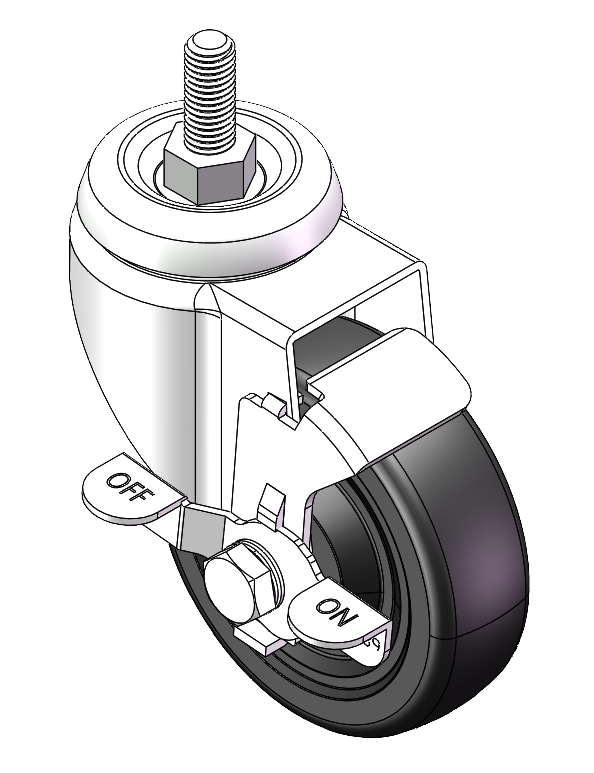

Casters with Total Brakes and Locking system. Threaded Stamping Fork - M12-P1.75 Extended control lever surface, Mounting Type - Threaded Stem Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheels - Plain Bearing
