    Product Data Sheet
1129 Medical Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 125 x 35mm
　　EAN
　　　　　 　　　
　　YJ-11290500074053 　　　
Castors with Total Brake Locking system. Riveted Stamping Top Plate - medical hole Extended control lever surface, Mounting Type - Top Plate Reinforced Polypropylene and Wheel Tread Transparent, wheel - Plain Bearing
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

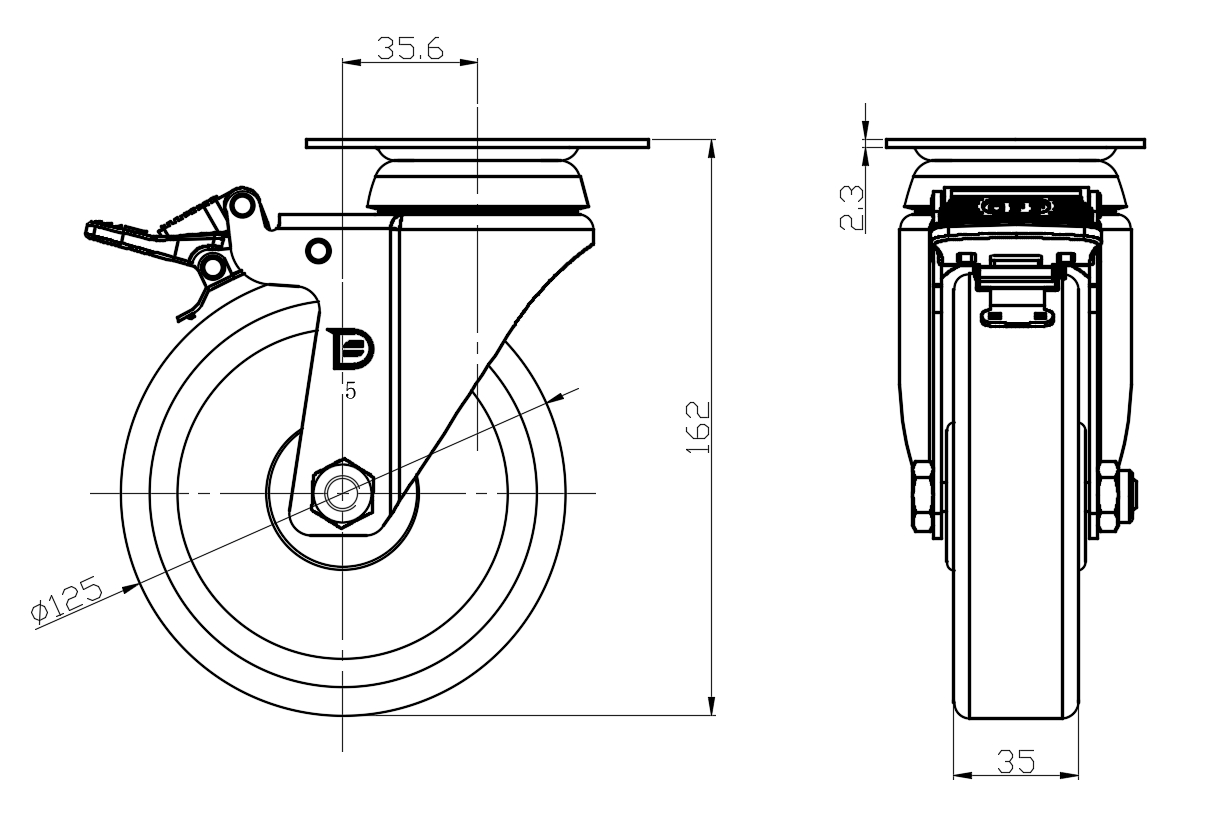

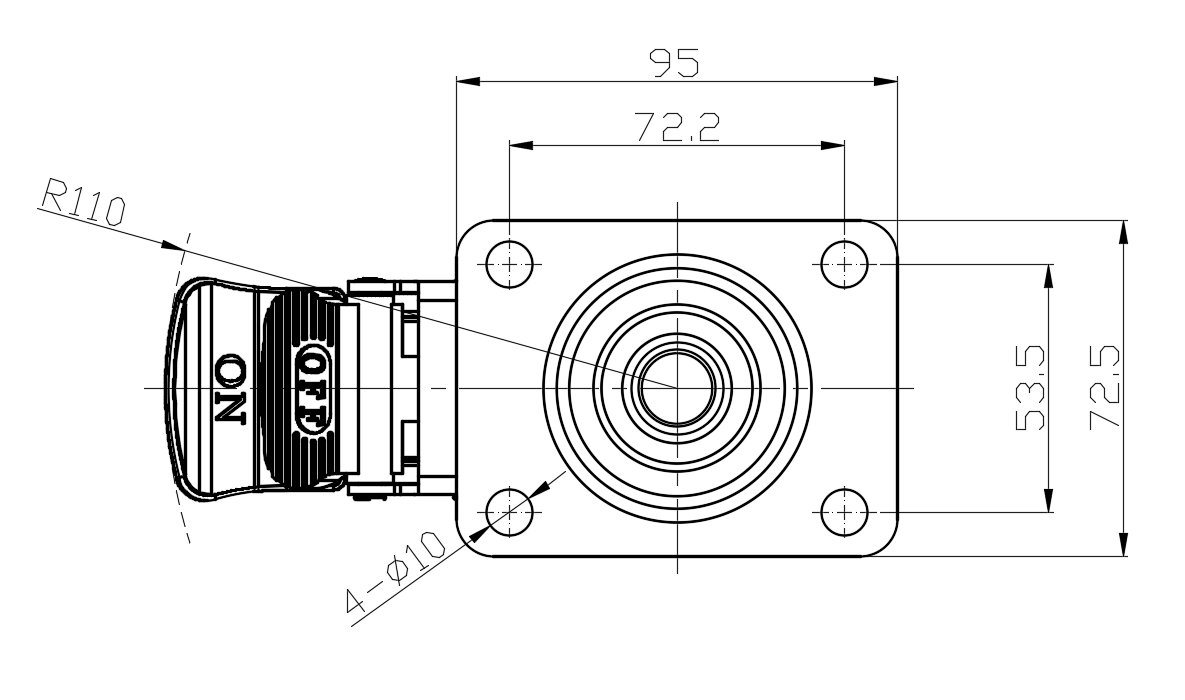

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 35mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 95 x 72.5mm　
　　Bolt Hole Spacing 72.2 x 53.5mm　
　　Plate Hole 10mm　
　　Offset 35.6mm　
　　Swivel Interference 220mm　
　　Overall Height 162mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.91kgs　
　　Standard ISO22883
　　
　　
