    Product Data Sheet
1129 Medical Caster Series
　　NPPR(grey tire) Wheel Diameter × Wheel Width 100 x 23mm
　　EAN
　　　　　 　　　
　　YJ-11290400261033 　　　

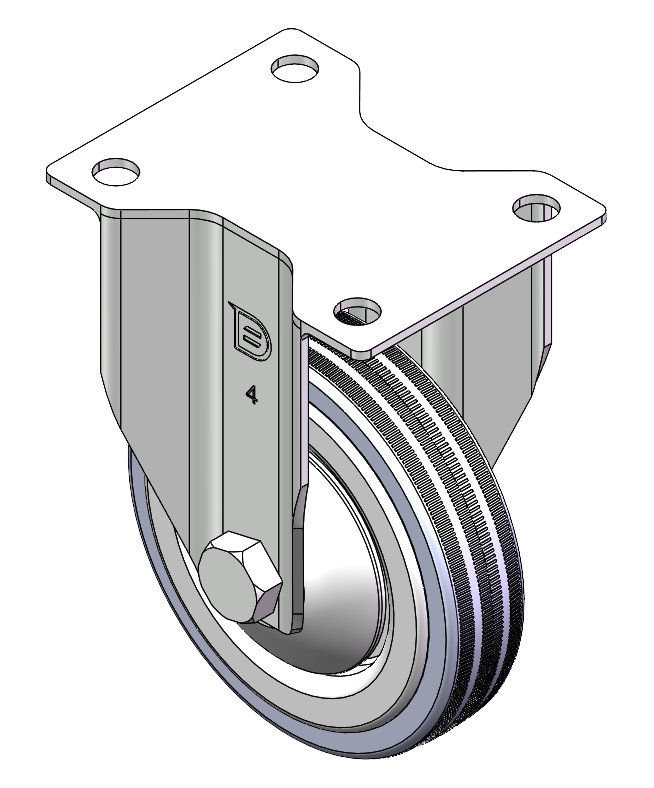

Rigid castor, Stamping Fabricated Caster Fork - medical hole Surface Zine-Plated, Top Plate Mounting Type High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Gray green, wheel - Plain Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

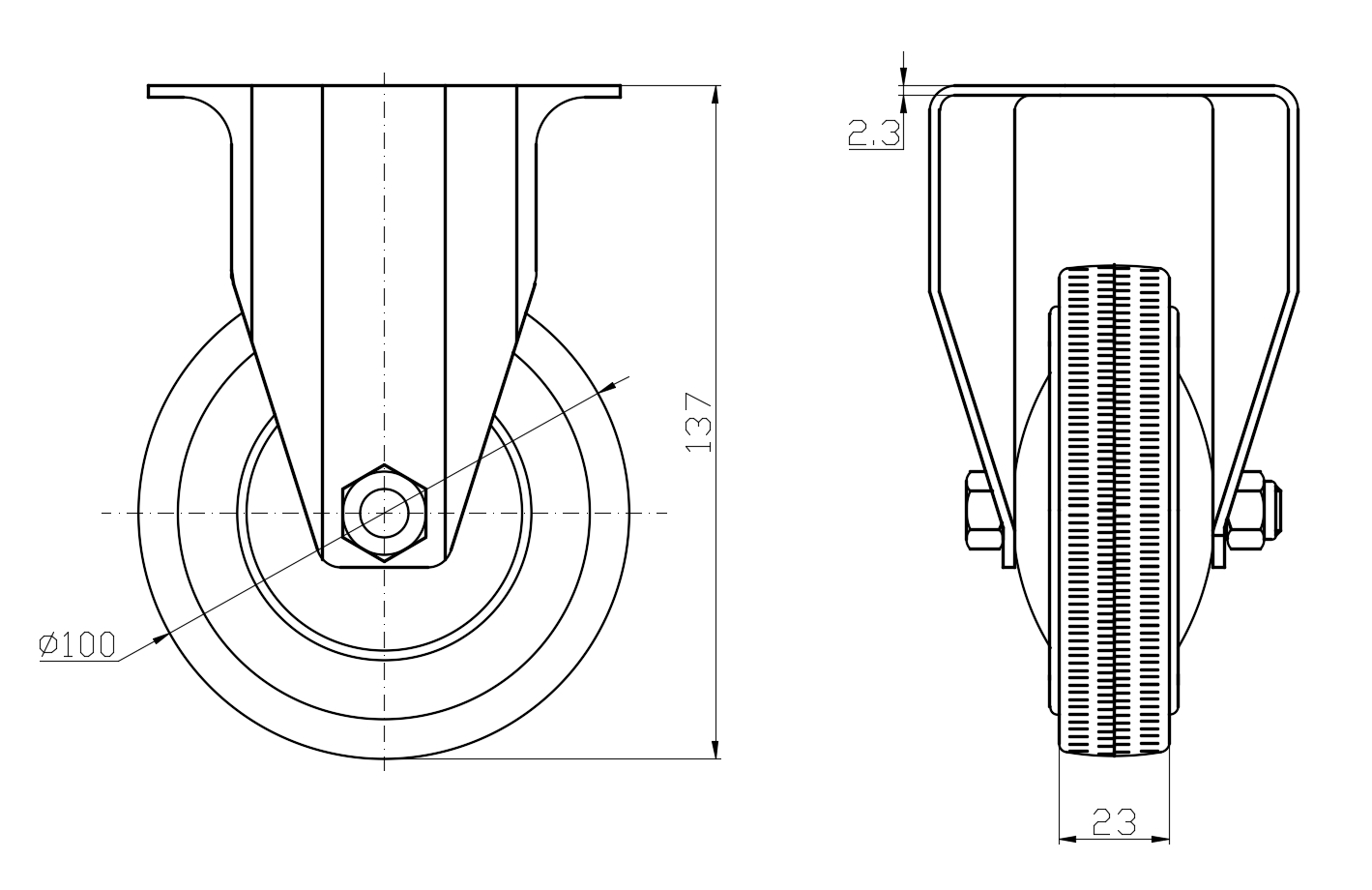

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 23mm　
　　Wheel Bearing Wheel With Plain Bearing

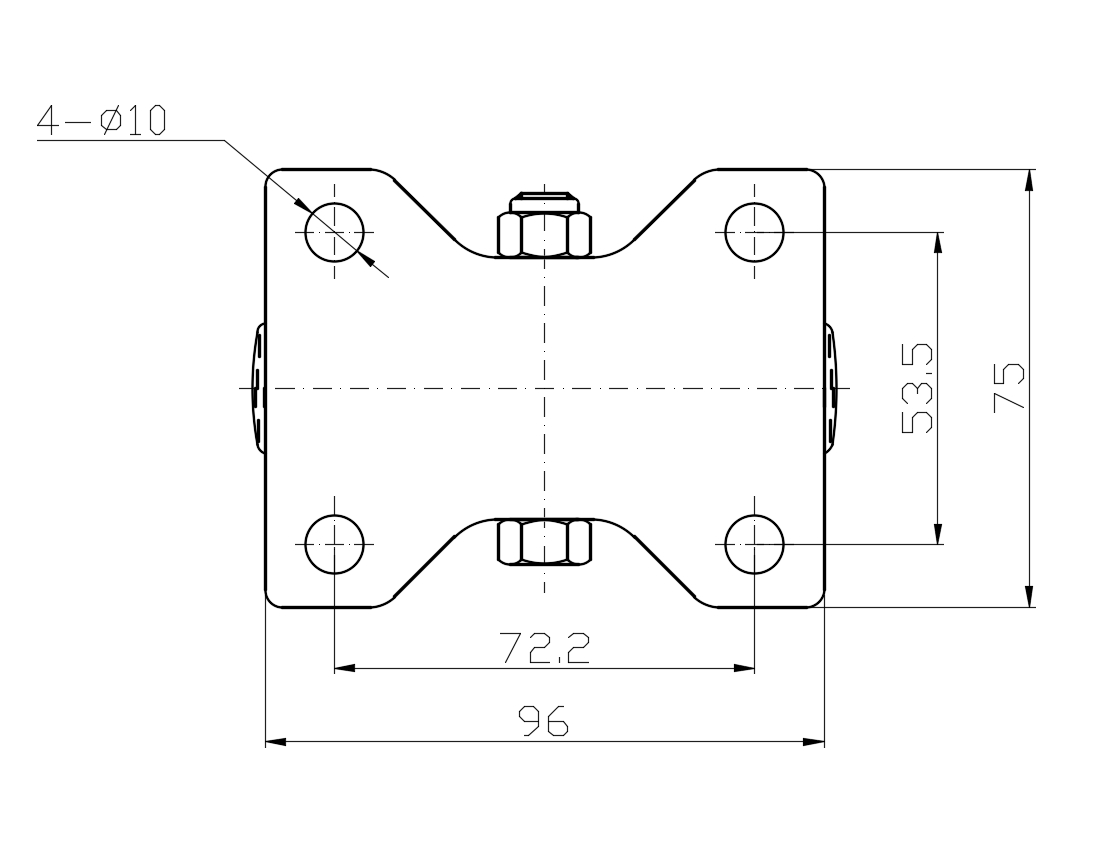

　　Plate Size 96 x 75mm　
　　Bolt Hole Spacing 72.2 x 53.5mm　
　　Plate Hole 10mm　
　　Overall Height 137mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.48kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com


　　　　　　　　　　　　關　　聯　　產　　品



  1129 Medical Caster Series
   NPPR(grey tire) Wheel Diameter × Wheel Width 100 x 23mm


   YJ-11290400262033

         100 mm         70 Kgs         137 mm

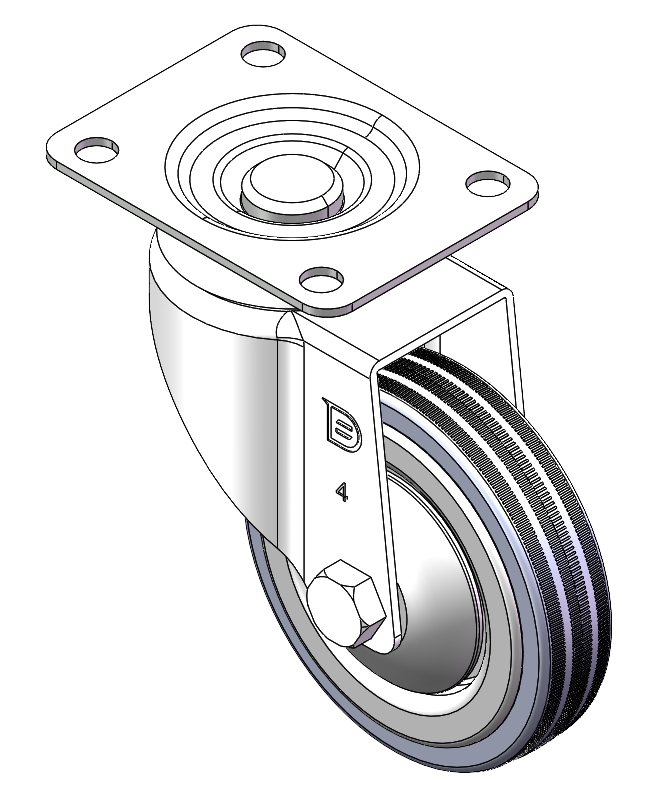

Swivel Caster, Top Plate Riveted Stamping Fork - medical hole Surface Zine-Plated, Mounting Type - Top Plate High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Gray green, wheel - Plain Bearing type.




  1129 Medical Caster Series
   NPPR(grey tire) Wheel Diameter × Wheel Width 100 x 23mm


   YJ-11290400264023

         100 mm         70 Kgs         137 mm

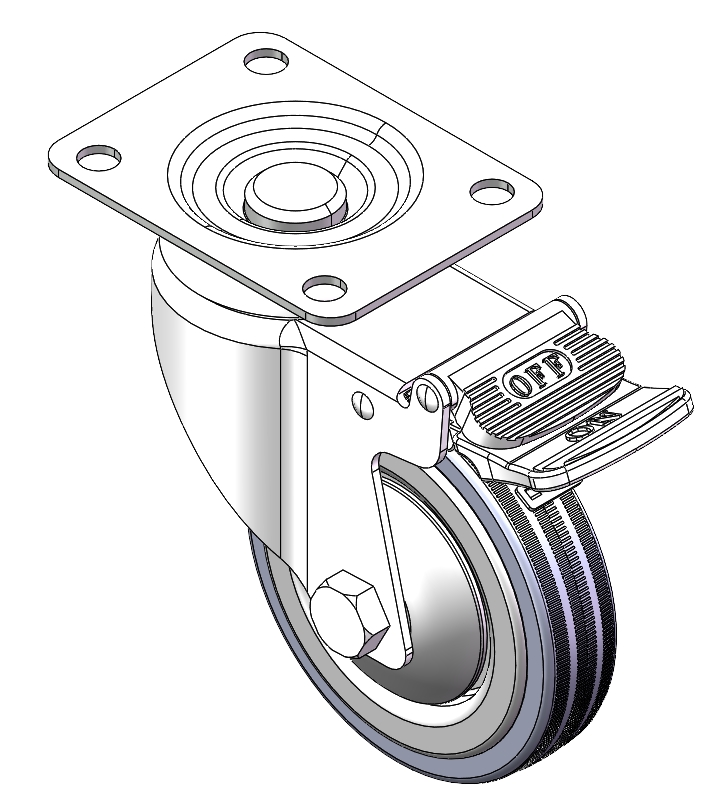

Castors with Total Brake locking system. Riveted Stamping Fork - medical holes Surface Zine-Plated, Fork Mounting Type High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Gray green, wheels - Plain Bearing.
