    Product Data Sheet
1129 Medical Caster Series
　　Classic PPR wheel(Pearlescent dark gray small cap) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290500268873 　　　
Castors with Total Brake Locking system. Stamped and Riveted Fork - Ø28x28.5L Extended control lever surface, stud Mounting Type, Ø8 hole + wave disc Decorative Plastic Cover High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Pearl-colored dark gray, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

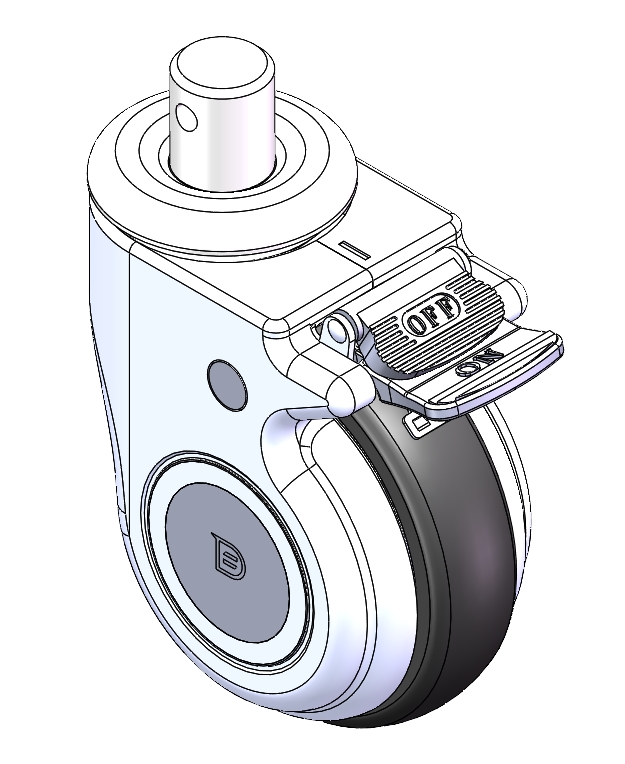

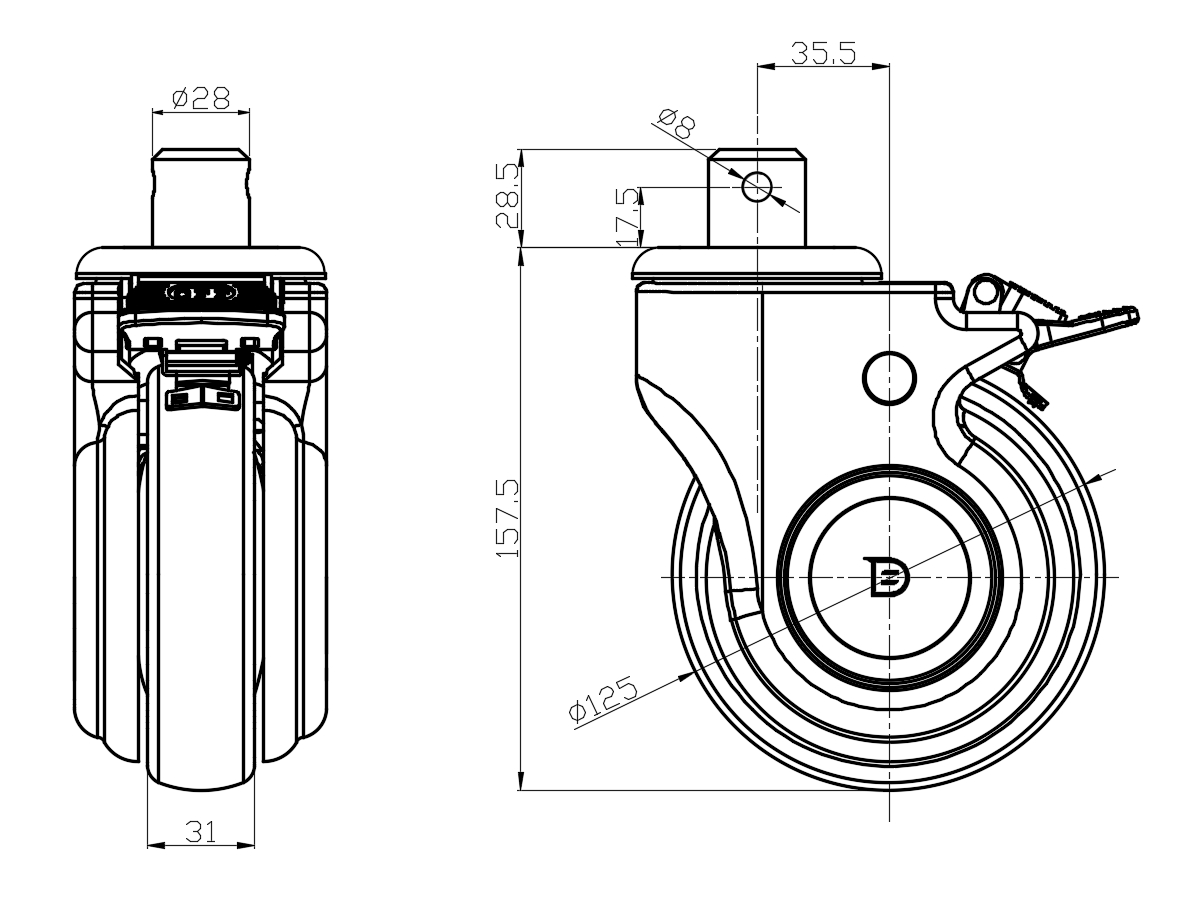

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 28mm　
　　Stem Length 28.5mm　
　　Offset 35.5mm　
　　Swivel Interference 220mm　
　　Overall Height 157.5mm　

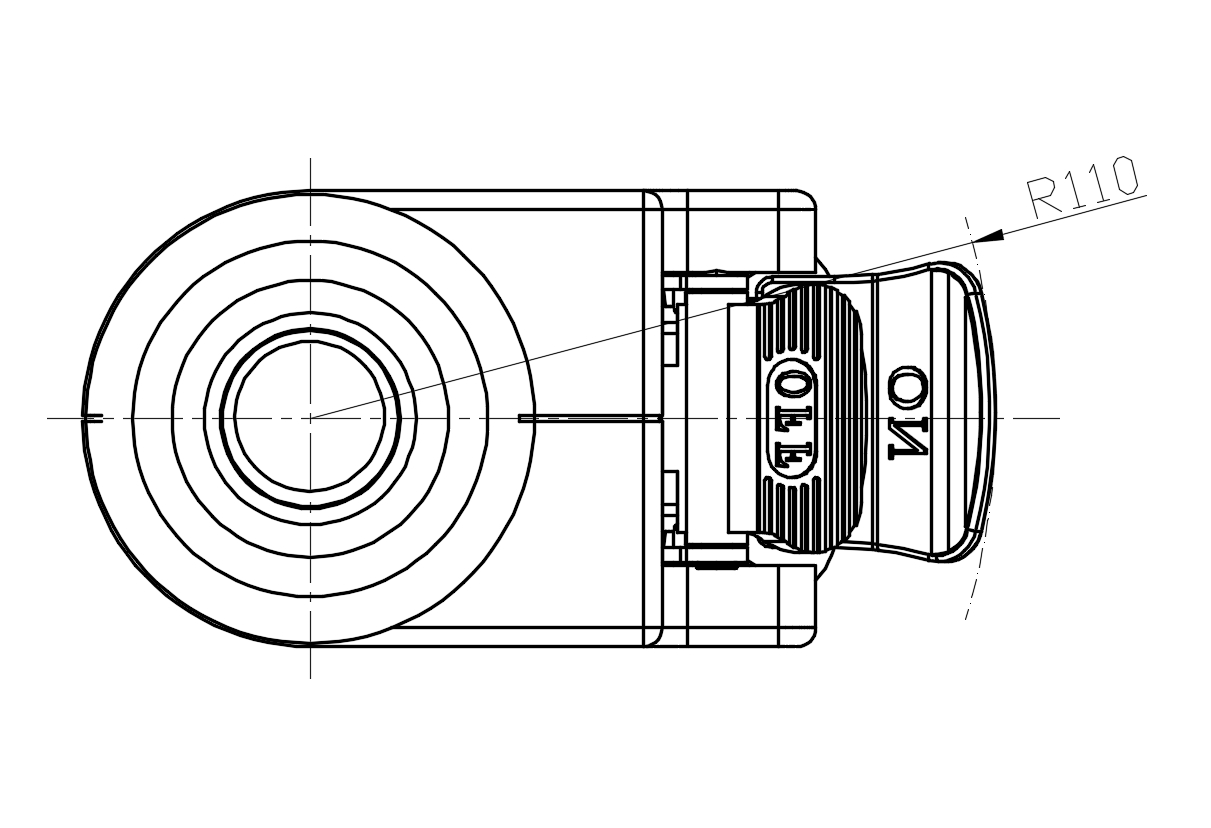

　　Swivel Radius 110mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 110kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 165kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.12kgs　
　　Standard ISO22883
　　
　　
