    Product Data Sheet
1129 Medical Caster Series
　　Gray Rubber Wheel(grey) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11290400082106 　　　
Swivel Caster, Top Plate Riveted Stamping Fork - medical hole Surface chrome-plated, Mounting Type - Top Plate Cast Iron Wheel Center, High-Quality Resilient Rubber Wheel Tread Gray, Bearing - Ball Bearing.
　　Wheel Tread: high quality elastic rubber
　　Wheel Center: iron core (cold rolled steel plate)

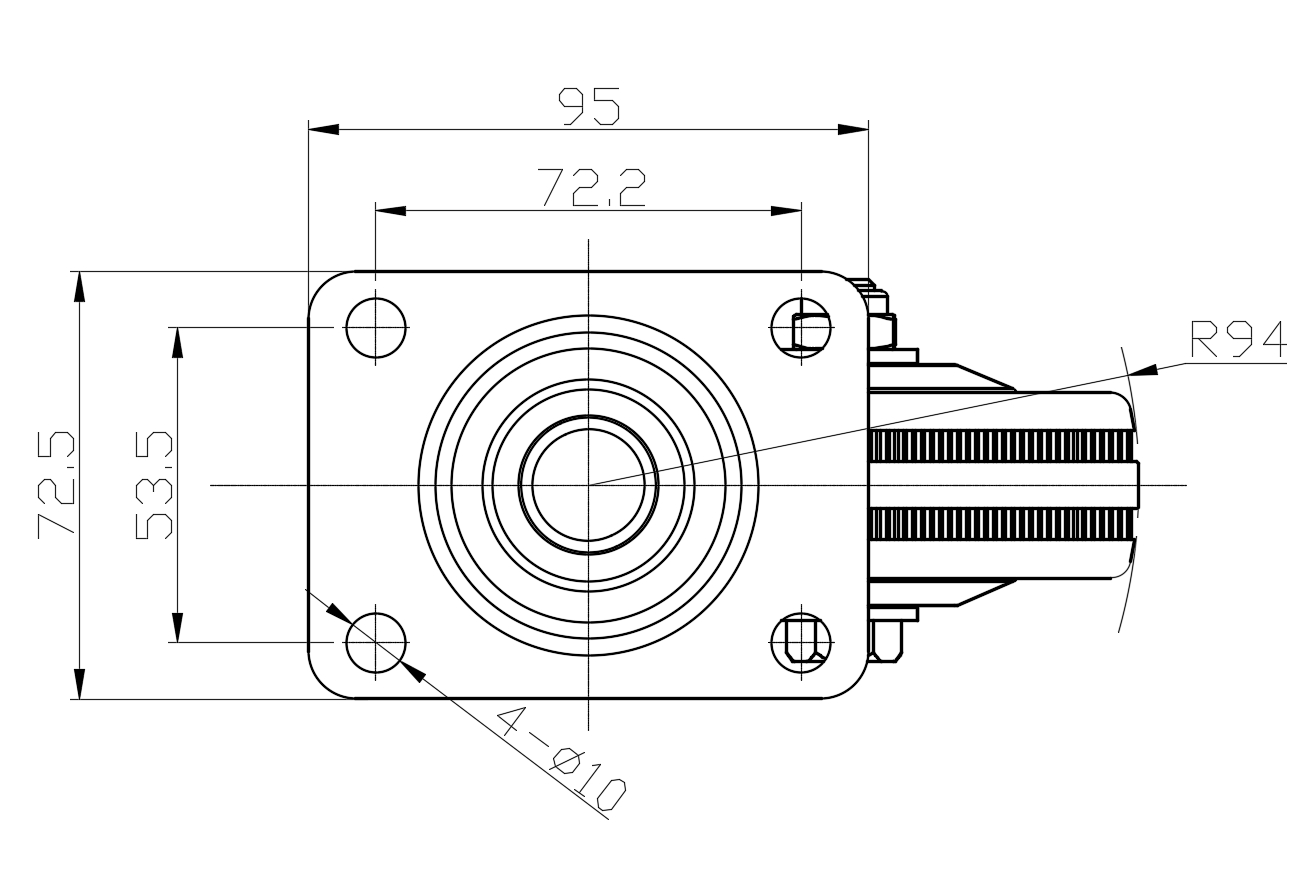

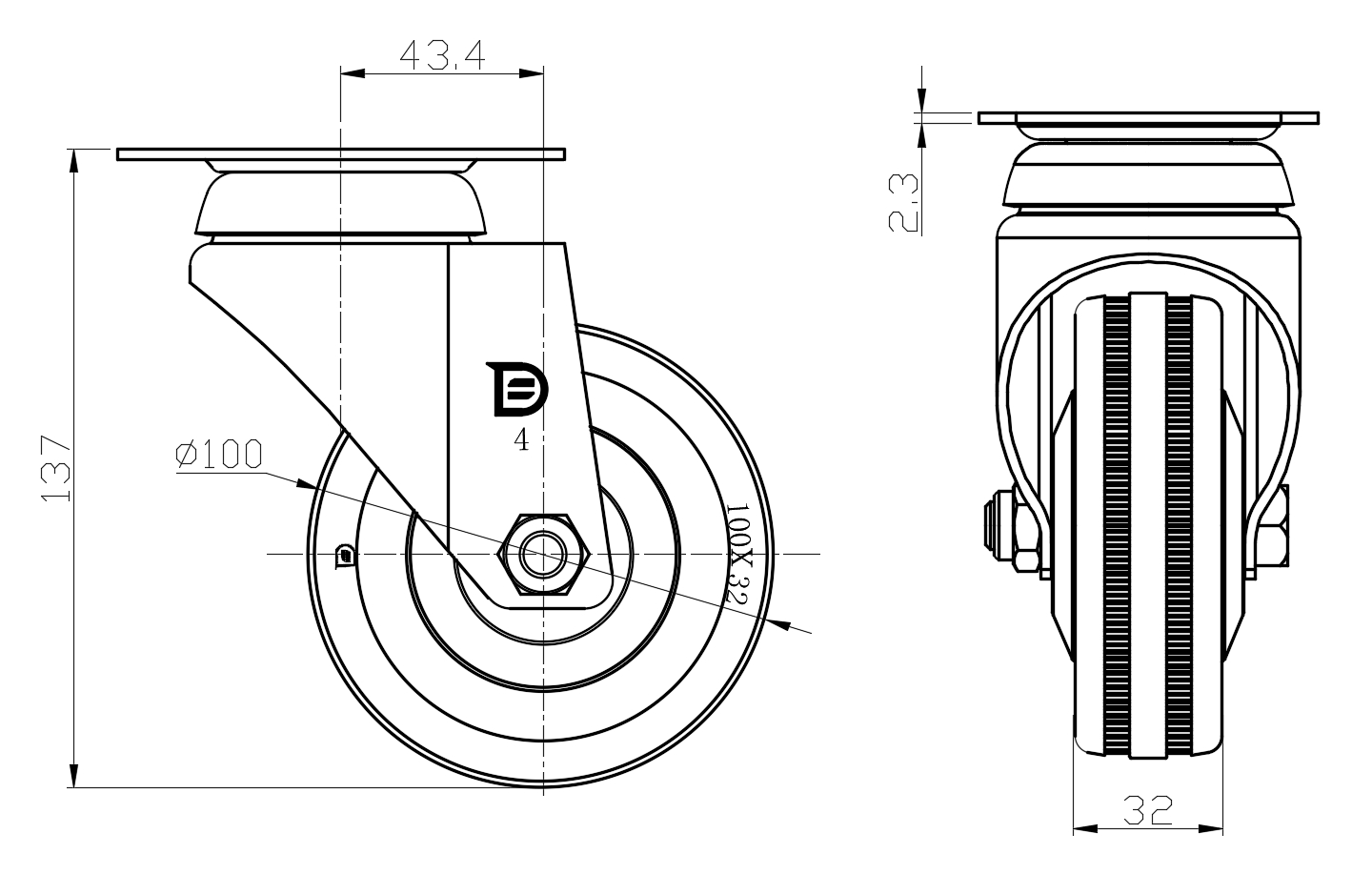

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 72.5mm　
　　Bolt Hole Spacing 72.2 x 53.5mm　
　　Plate Hole 10mm　
　　Offset 43.4mm　
　　Swivel Interference 188mm　
　　Overall Height 137mm　
　　Swivel Radius 94mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.11kgs　
　　Standard ISO22883
　　
　　
