    Product Data Sheet
1129 Medical Caster Series
　　PPU (gray) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290400315013 　　　
Swivel Caster with thread-Riveted Stamping Fork—M12-P1.75
Zine-Plated, Mounting Type - Threaded Stem
High-Quality Impact-Resistant Polypropylene core, High Quality Polyurethane Wheel Tread
Gray color, Bearing—Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: Made of high-quality impact-resistant polypropylene

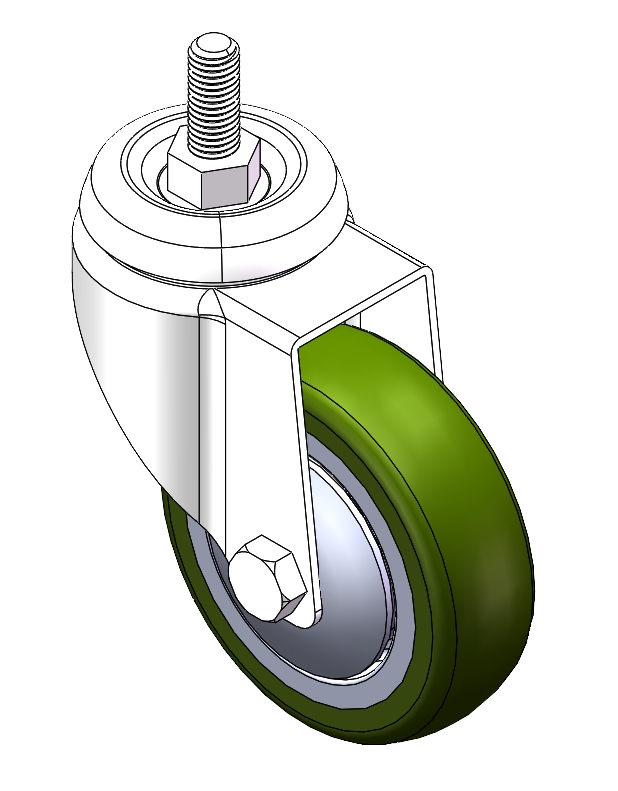

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12-P1.75
　　Threaded Length 29mm
　　Offset 43.4mm　
　　Swivel Interference 188mm　
　　Overall Height 137mm　
　　Swivel Radius 94mm　
　　Hardness Of Tread 94±5° Shore A　
　　Load Capacity (Dynamic) 120kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 180kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.71kgs　
　　Standard ISO22883
　　
　　
