    Product Data Sheet
1129 Medical Caster Series
　　W Resolute (Pearlescent dark gray) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290500457023 　　　
Swivel Caster with hollow rivet Stamping Fork (12.5 holes)
Zine-Plated, Mounting Type - Single Bolthole
Reinforced, impact-resistant polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Pearl-finish dark gray, Bearing – Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

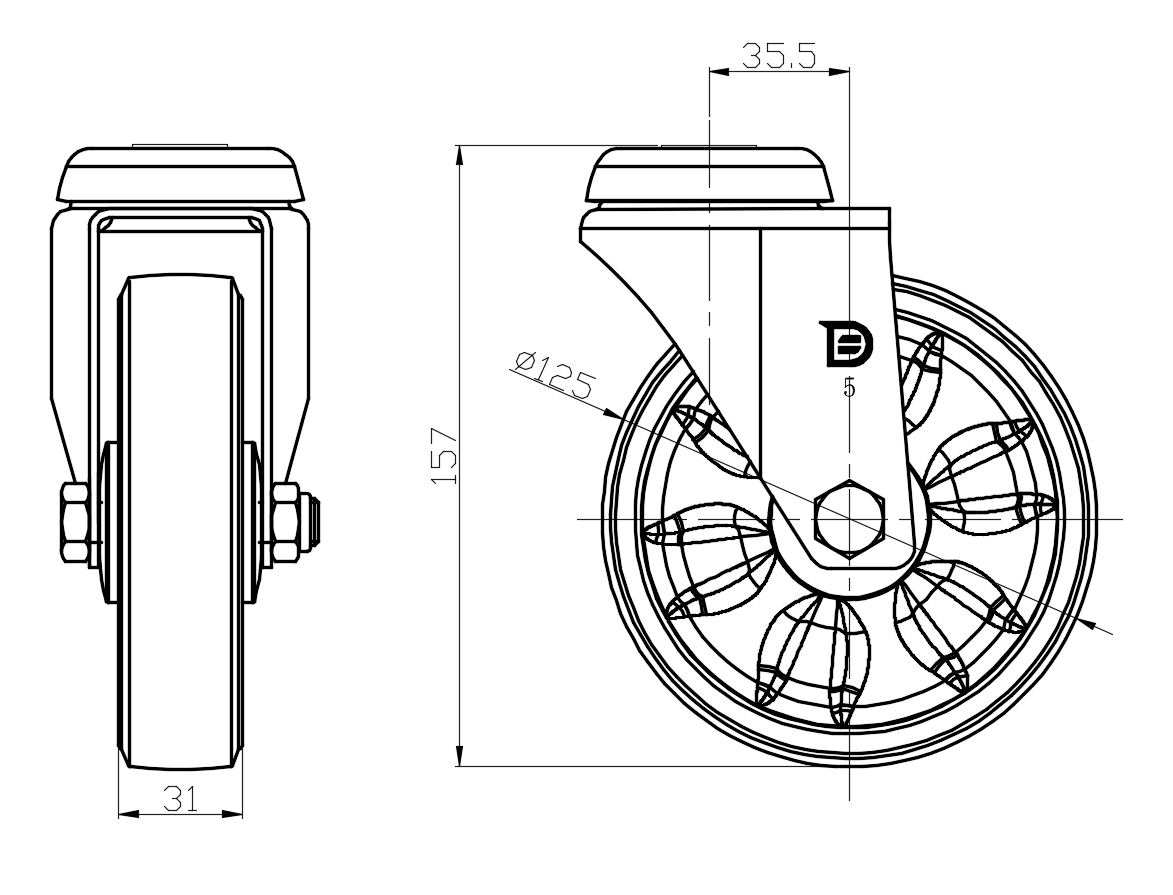

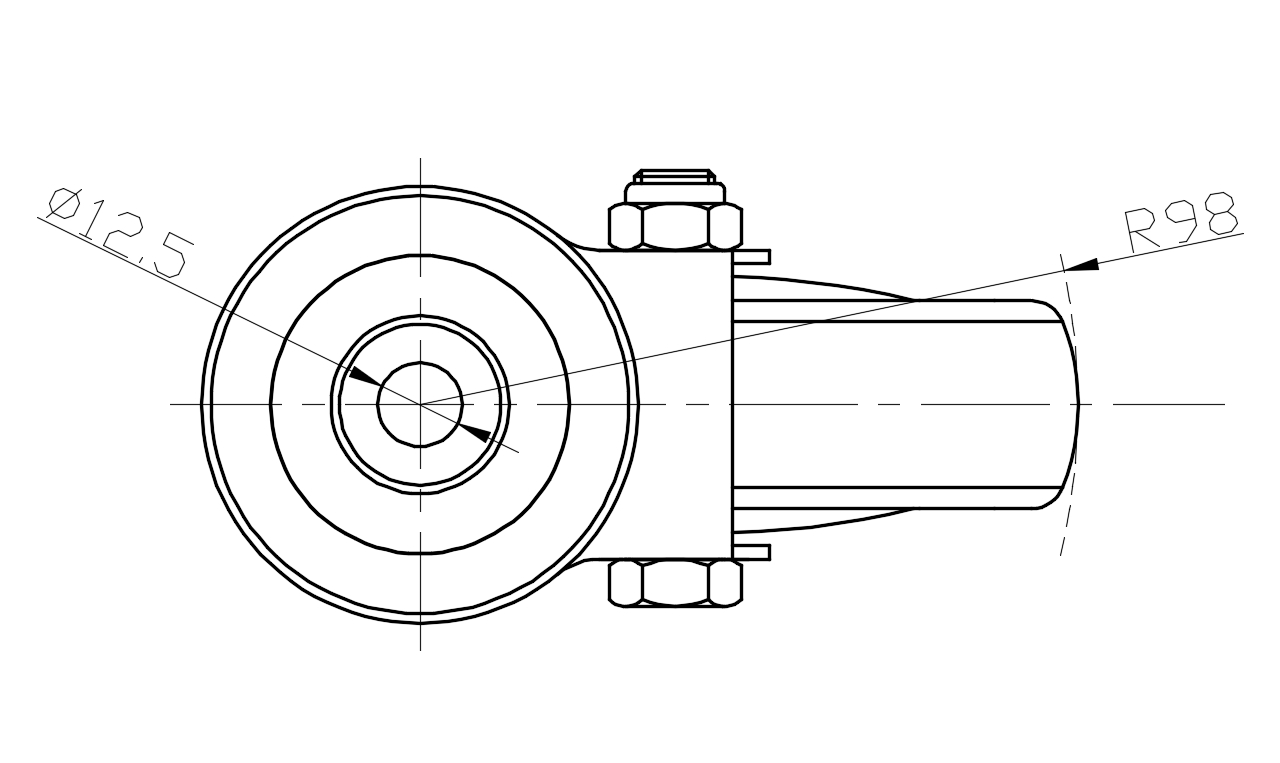

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Single Bolt HoleCentre Hole 12.5mm　
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 162mm　
　　Swivel Radius 98mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 147kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 220.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.76kgs　
　　Standard ISO22883
　　
　　
