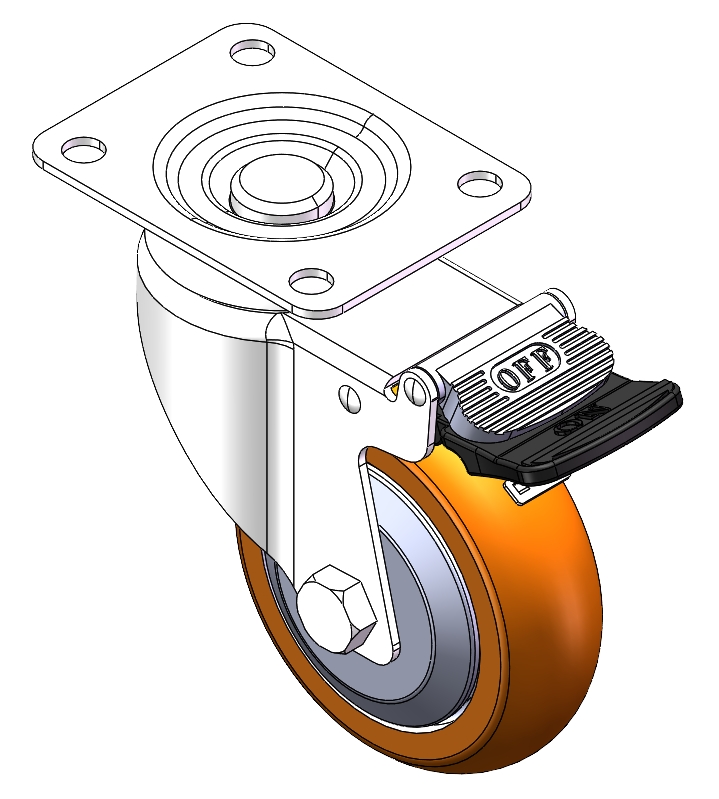

1129 Medical Caster Series
　　AQPU (brown round) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290400604113 　　　
Equipped with a 90° fixed brake Caster, Riveted Fork with Fork and medical holes.
Zine-Plated, Mounting Type - Top Plate.
Aluminum core, High Quality Polyurethane Wheel Tread.
Brown, Bearing—Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: aluminum core

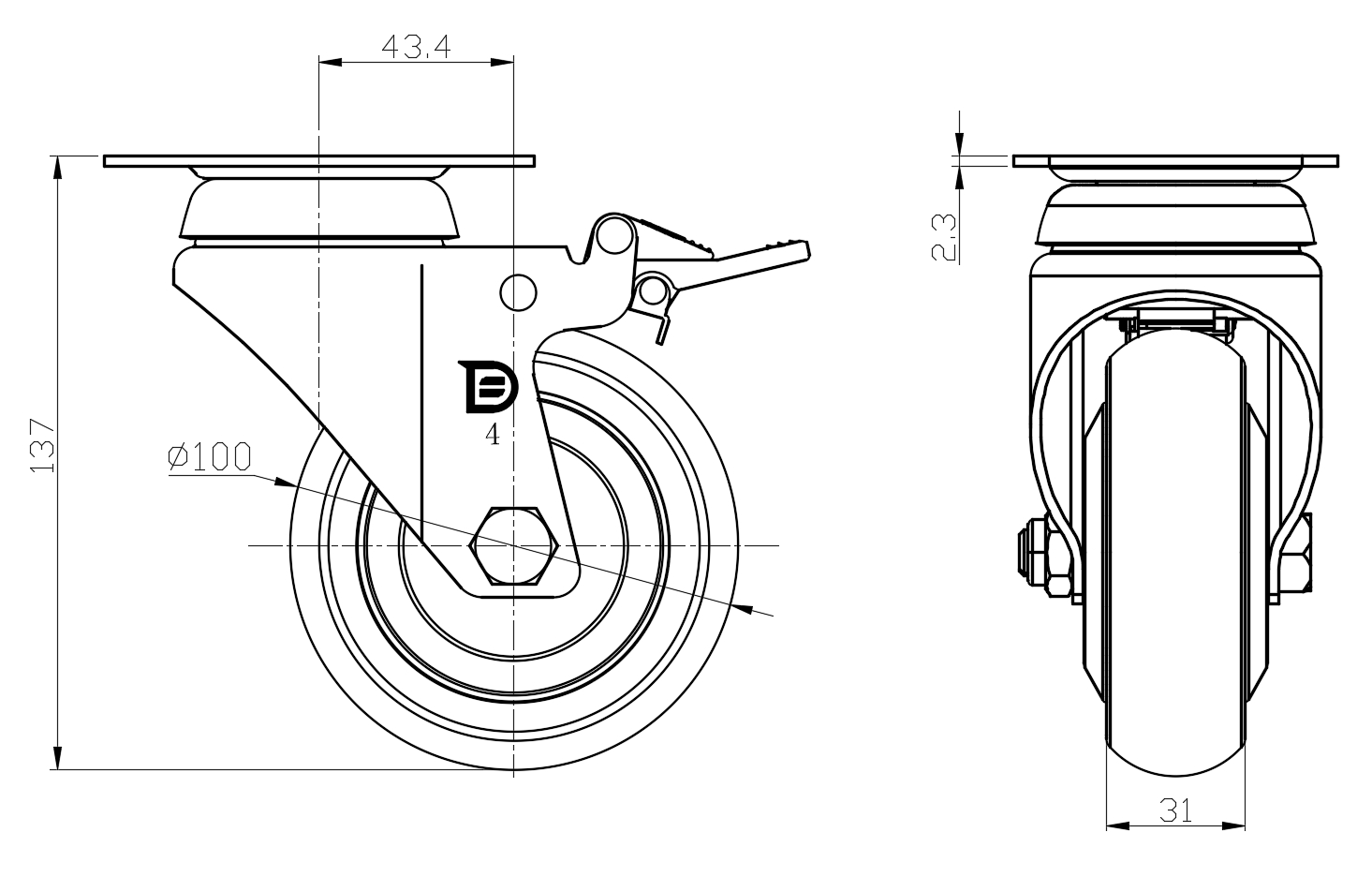

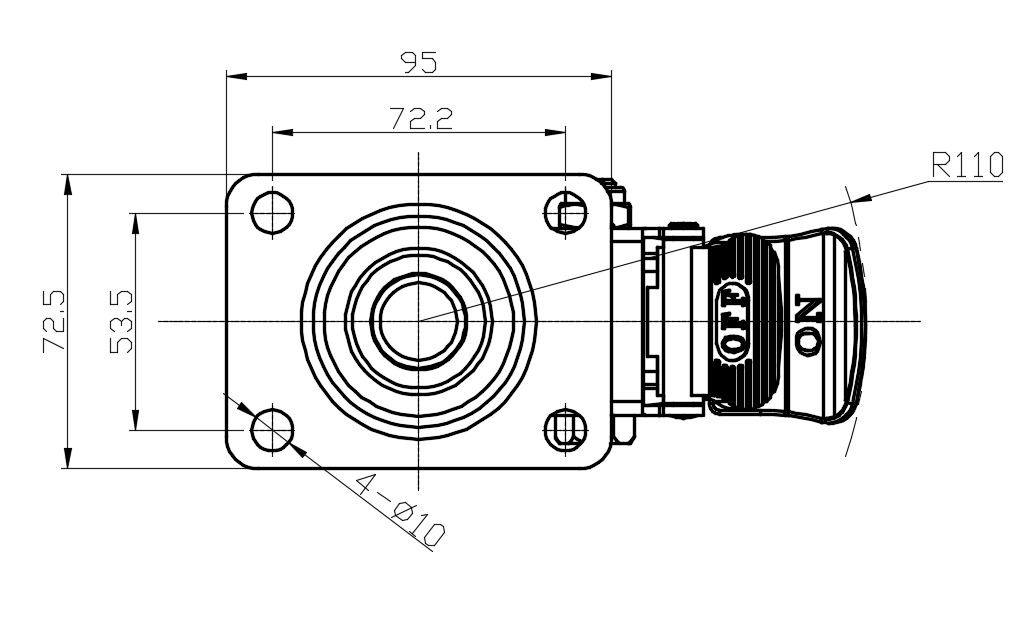

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 72..5mm　
　　Bolt Hole Spacing 72.2 x 53.5mm　
　　Plate Hole 10mm　
　　Offset 43.4mm　
　　Swivel Interference 220mm　
　　Overall Height 137mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Directional Lock
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.02kgs　
　　Standard ISO22883
　　
　　
