    Product Data Sheet
1129 Medical Caster Series
　　PPR (Pearlescent dark gray) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290500067943 　　　

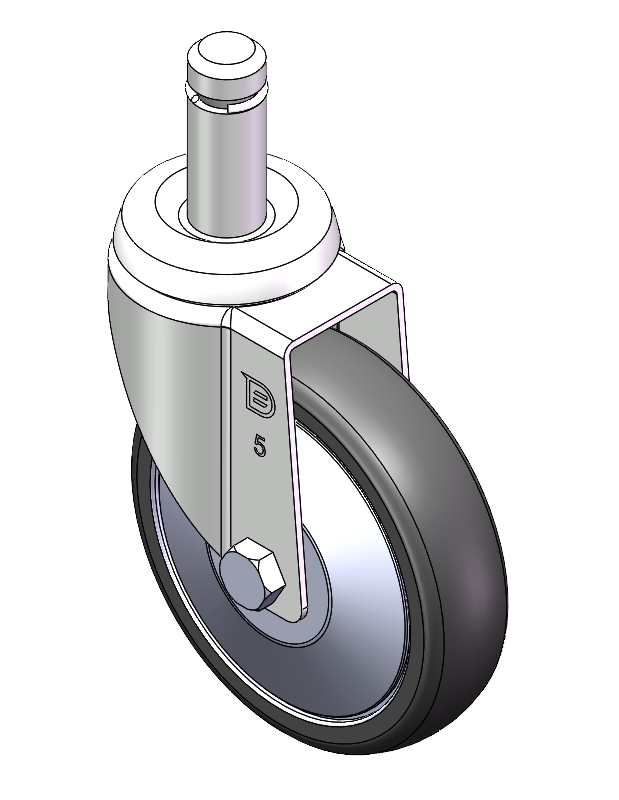

Swivel Caster with Riveted Stamping Fork—Ø21.6 x 56L
Zine-Plated, Mounting Type - Cylindrical Stem
High-Quality Impact-Resistant Polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Pearl-finish dark gray, Bearing—Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

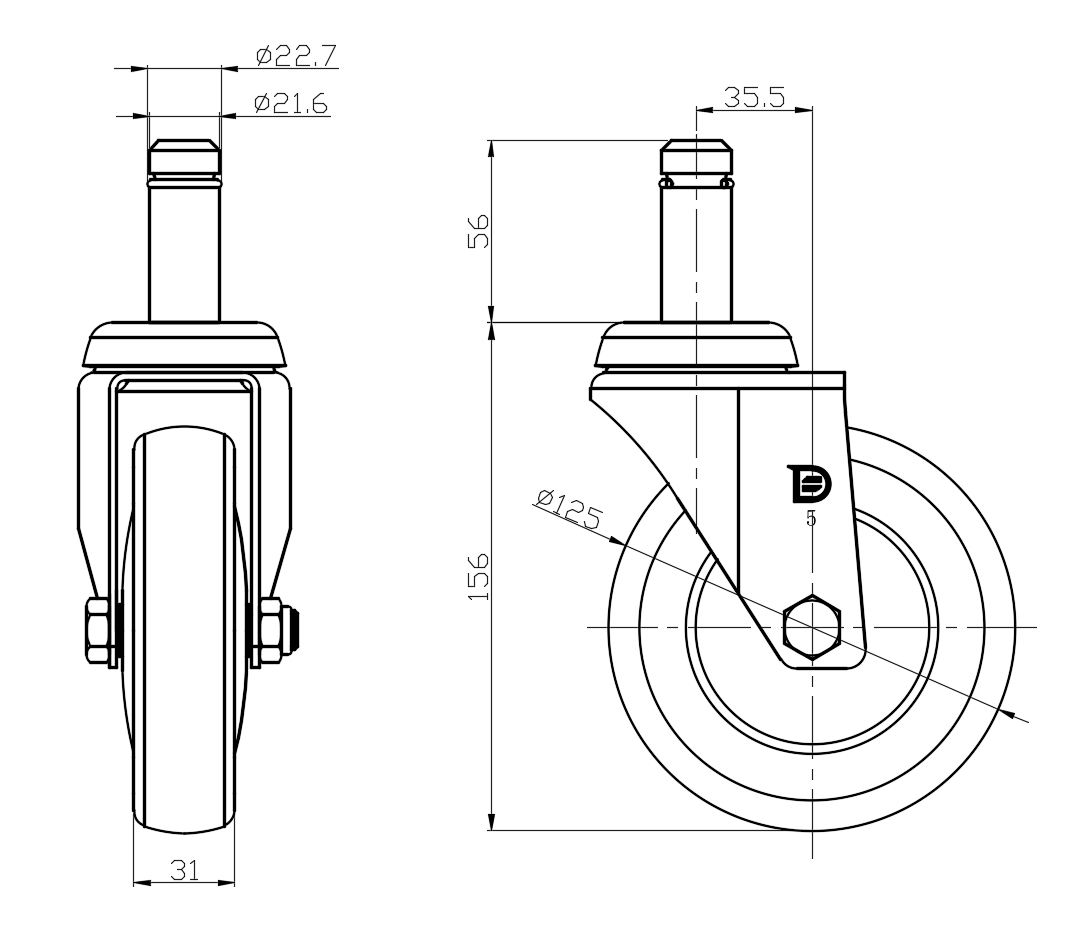

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Stem Diameter 21.6mm　
　　Stem Length 56mm　
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 156mm　

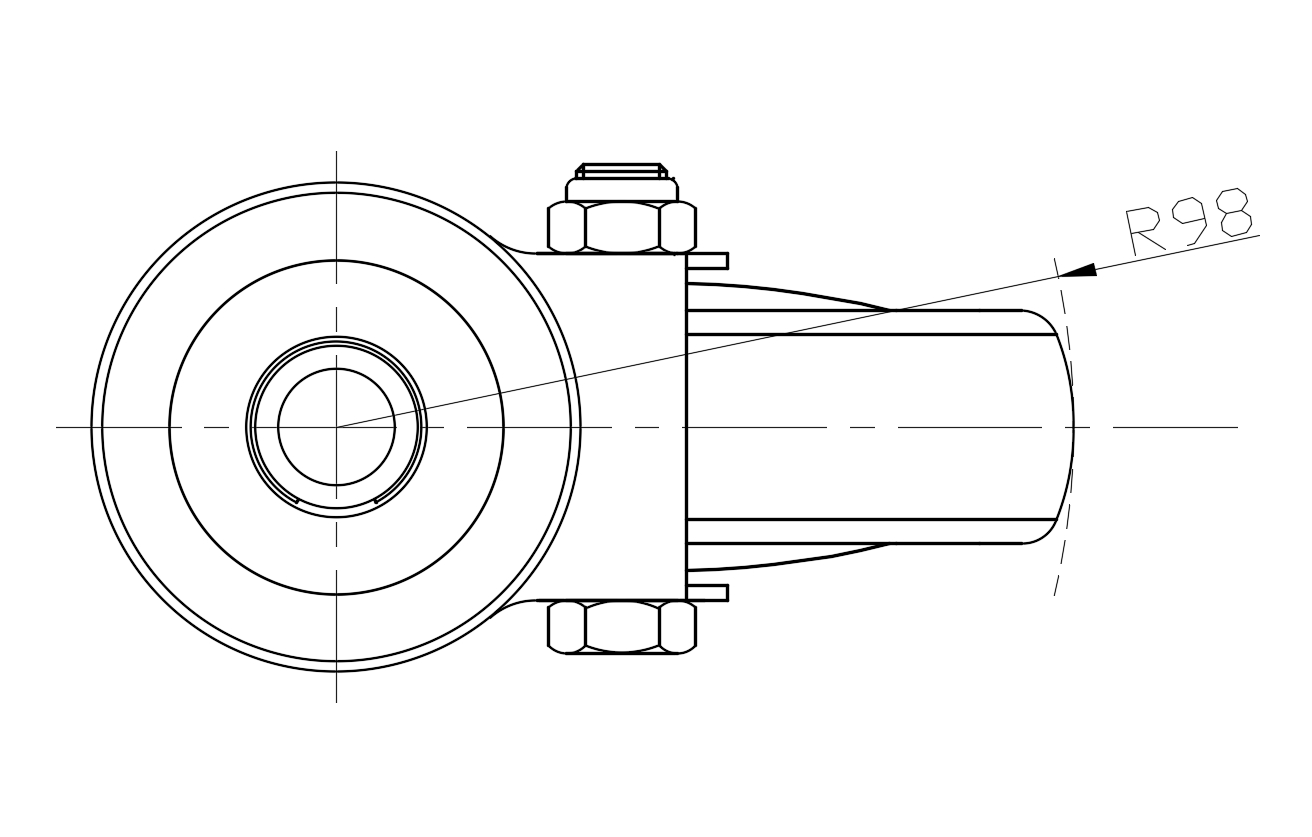

　　Swivel Radius 98mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 110kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 165kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.88kgs　
　　Standard ISO22883
　　
　　
